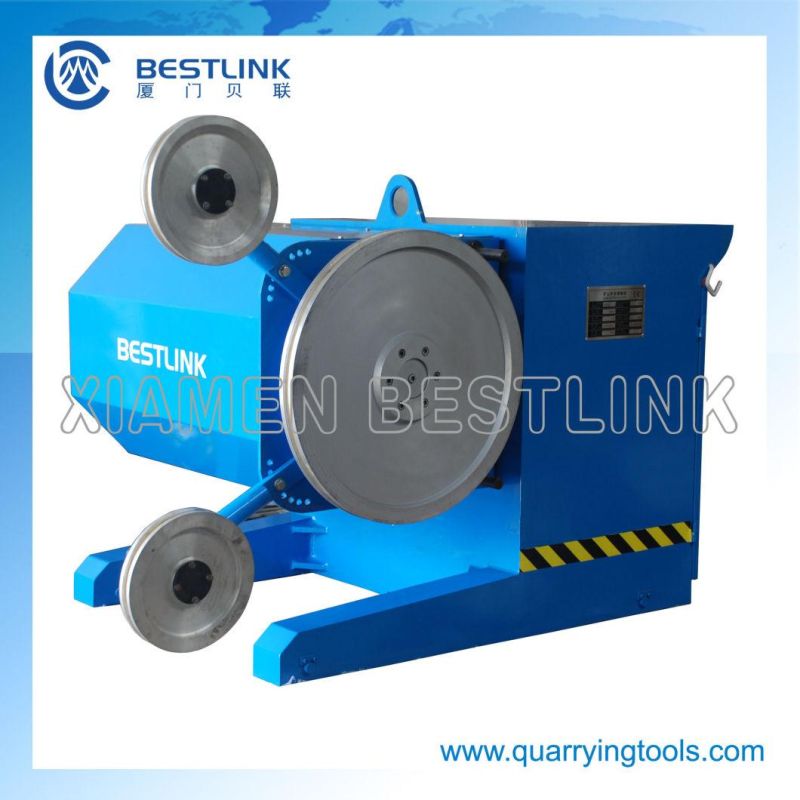

• Model NO.：BLD-37G, BLD-45G, BLD-55G, BLD-75G
• Control：CNC
• Certification：CE
• Certificate：CE
• Condition：New
• Model Number：Bld-75g,Bld-55g,Bld-37m,Bld-37g,Bld-W11q
• Loading Port：Xiamen, China
• Transport Package：Plywood Box
• Specification：as per order details
• Trademark：BESTLINK
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：3000 Sets Per Month

Tachnical Parameter of Diamond Wire Saw Machine BLD-75GBLD-55GTotal power78.75Kw58KWMain motor power75Kw55KWTravel motor power0.75Kw0.75KWRotary cutting head motor power1.5Kw0.75KWShifting cutting head motor power1.5Kw0.75KWPower supply requirementAC380±10%@ 50HzAC380±10%@ 50HzCutting head rotation360°360°Shifting distance of cutting head480mm480mmLateral movement of cutting head2000mm800mmLength of rails2m or 3m2m or 3mMain motor rotate speed0~980r/min(bu inverter0~980r/min(bu inverterLinear speed of drive flywheel0~40m/s0~40m/sSpeed of machine traveling0~120m/h0~120m/hAvailable working temperature-150°C~+400°C-150°C~+400°CDimension of the machine(mm)L=1940,W=1440,H=1485L=1925,W=1440,H=1485Weight2.5T2.2TUse forgranite or marble quarrygranite or marble quarry

BLD-37M	BLD-37G	BLD-W11Q
40KW	40KW
37KW	37KW	11KW
0.75KW	0.75KW	0.37KW
0.75KW	0.75KW
0.75KW	0.75KW
AC380±10%@ 50Hz	AC380±10%@ 50Hz	AC380±10%@ 50Hz
360°	360°	360°(by band)
480mm	480mm
1800mm	1800mm
2m or 3m	2m or 3m	2m
0~980r/min(bu inverter	0~980r/min(bu inverter
0~40m/s	0~40m/s	0~40m/s
0~90m/h	0~120m/h	0~30m/h(by inverter
-15°C~+40°C	-15°C~+40°C	-15°C~+40°C
L=1925,W=1240,H=1430	L=1925,W=1240,H=1430	L=12200,W=550,H=640
2.1T	2.1T     0.368T

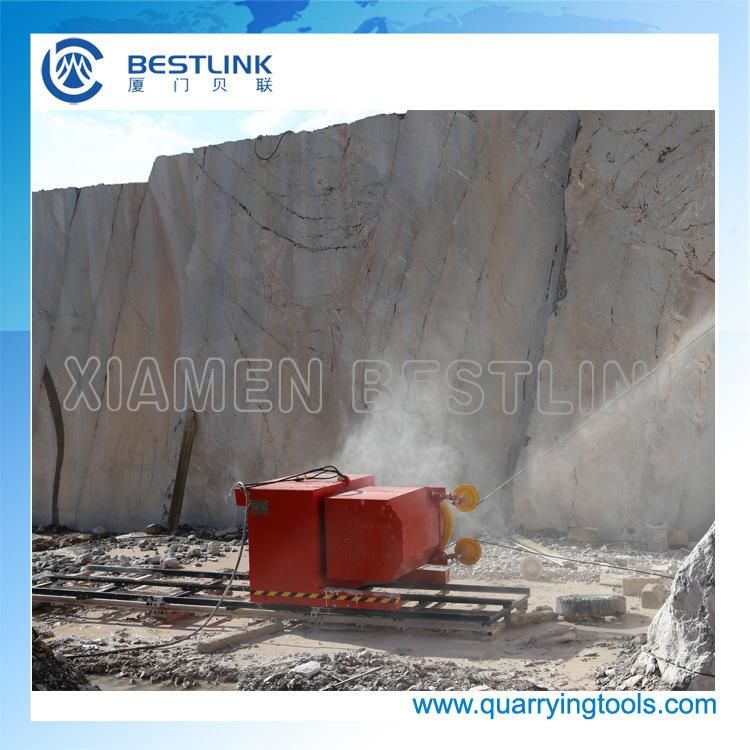

marble quarrying	granite & marble quarry	block squaring
