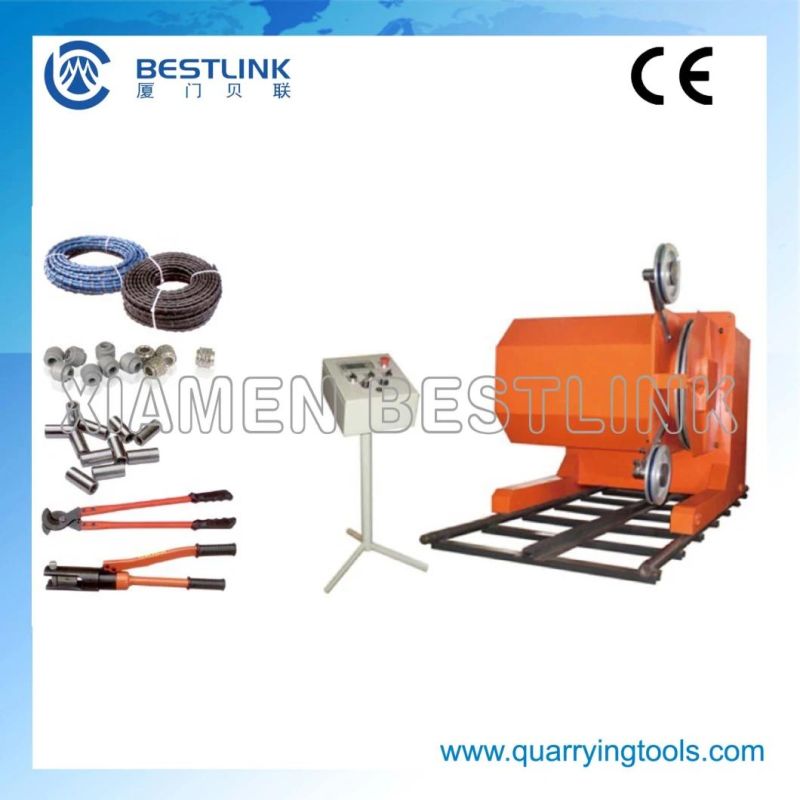

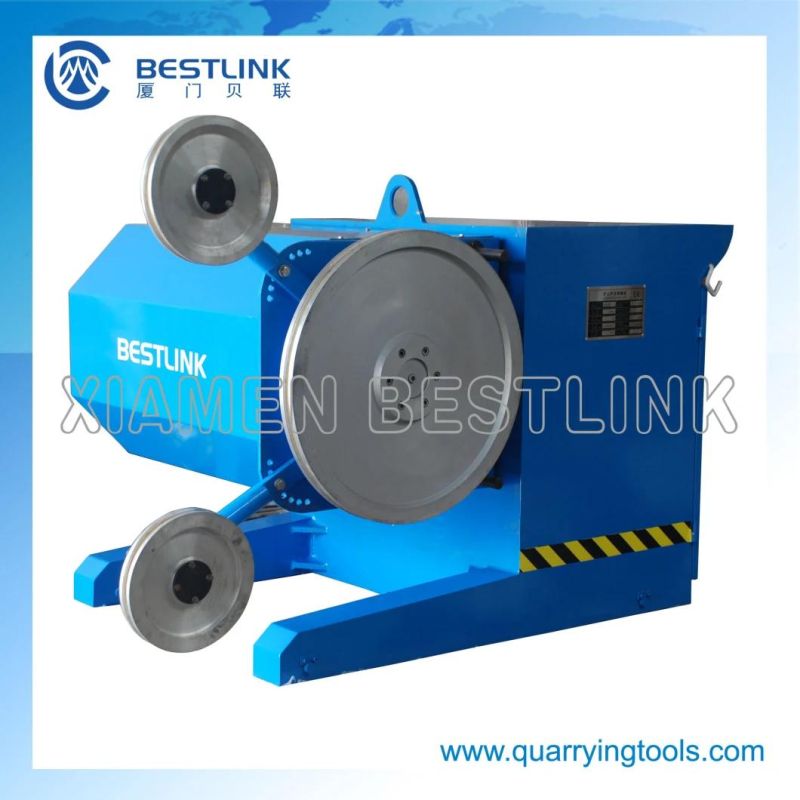

Diamond Wire Saw Cutting Machine for Marble and Granite Blocks
Xiamen Bestlink Factory Co., Ltd.- Type：Laser Cutting Machine
- Usage：Jadestone, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：Medium Speed
Base Info
- Model NO.：BLD-37G, BLD-45G, BLD-55G, BLD-75G
- Control：CNC
- Certification：CE
- Certificate：CE
- Condition：New
- Model Number：Bld-75g,Bld-55g,Bld-37m,Bld-37g,Bld-W11q
- Loading Port：Xiamen, China
- Manufacturing Arts：Electroplating
- Kind：Stone Sawing Machine
- Saw Blade External Diameter：800mm
- Transport Package：Plywood Box
- Specification：as per order details
- Trademark：BESTLINK
- Origin：Fujian, China
- HS Code：84641090
- Production Capacity：3000 Sets Per Month
Description
Tachnical Parameter of Diamond Wire Saw Machine BLD-75GBLD-55GTotal power78.75Kw58KWMain motor power75Kw55KWTravel motor power0.75Kw0.75KWRotary cutting head motor power1.5Kw0.75KWShifting cutting head motor power1.5Kw0.75KWPower supply requirementAC380±10%@ 50HzAC380±10%@ 50HzCutting head rotation360°360°Shifting distance of cutting head480mm480mmLateral movement of cutting head2000mm800mmLength of rails2m or 3m2m or 3mMain motor rotate speed0~980r/min(bu inverter0~980r/min(bu inverterLinear speed of drive flywheel0~40m/s0~40m/sSpeed of machine traveling0~120m/h0~120m/hAvailable working temperature-150°C~+400°C-150°C~+400°CDimension of the machine(mm)L=1940,W=1440,H=1485L=1925,W=1440,H=1485Weight2.5T2.2TUse forgranite or marble quarrygranite or marble quarry
| BLD-37M | BLD-37G | BLD-W11Q |
| 40KW | 40KW | |
| 37KW | 37KW | 11KW |
| 0.75KW | 0.75KW | 0.37KW |
| 0.75KW | 0.75KW | |
| 0.75KW | 0.75KW | |
| AC380±10%@ 50Hz | AC380±10%@ 50Hz | AC380±10%@ 50Hz |
| 360° | 360° | 360°(by band) |
| 480mm | 480mm | |
| 1800mm | 1800mm | |
| 2m or 3m | 2m or 3m | 2m |
| 0~980r/min(bu inverter | 0~980r/min(bu inverter | |
| 0~40m/s | 0~40m/s | 0~40m/s |
| 0~90m/h | 0~120m/h | 0~30m/h(by inverter |
| -15°C~+40°C | -15°C~+40°C | -15°C~+40°C |
| L=1925,W=1240,H=1430 | L=1925,W=1240,H=1430 | L=12200,W=550,H=640 |
| 2.1T | 2.1T 0.368T | |

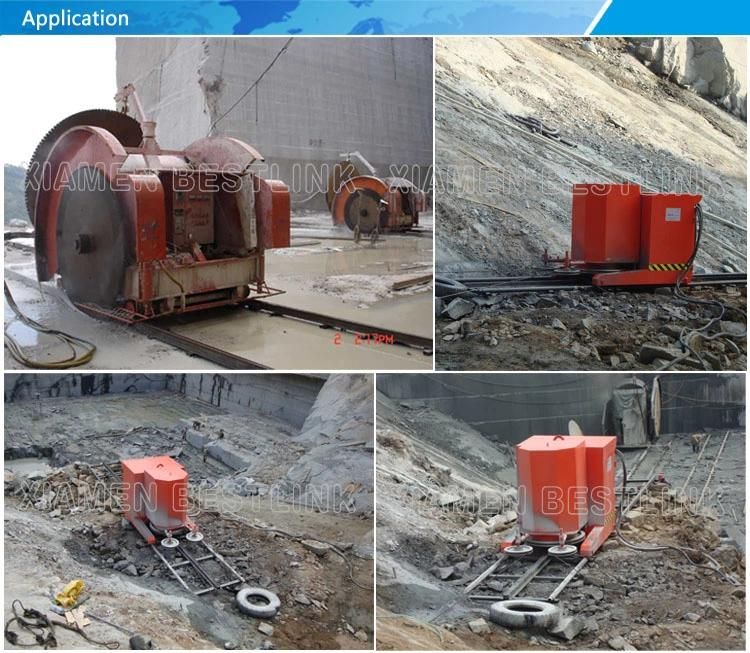

| marble quarrying | granite & marble quarry | block squaring |
