• Model NO.：HLKJ-80
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：SONCAP, ISO, CE
• Max. Dimension of Blocks：3250*2000*2000-3250*2500*2000mm
• Max. No. of Blades：80
• Blade Length：4300mm
• Cutting Feed：0-305mm,H
• Blade Stroke：800mm
• Stroke Per Minute：85rpm
• Flywheel Shaft Diameter：350mm
• Main Motor Power：110-130kw
• Overall Dimension：14629*6500*6700-14629*6800*6700mm
• Transport Package：Standard
• Specification：14629*6500*6700-14629*6800*6700
• Trademark：hl&sm
• Origin：China Xiamen Shuitou
• HS Code：84641090
• Production Capacity：200sets,Year

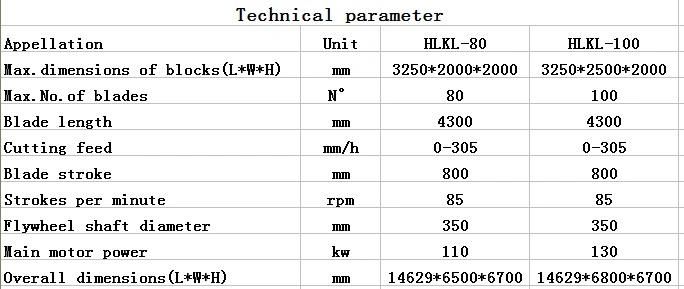

Basic Info.

Model NO. HLKJ-80 Automation Automatic Cutting Ability High Speed Control CNC Certification SONCAP, ISO, CE Max. Dimension of Blocks 3250*2000*2000-3250*2500*2000mm Max. No. of Blades 80 Blade Length 4300mm Cutting Feed 0-305mm/H Blade Stroke 800mm Stroke Per Minute 85rpm Flywheel Shaft Diameter 350mm Main Motor Power 110-130kw Overall Dimension 14629*6500*6700-14629*6800*6700mm Transport Package Standard Specification 14629*6500*6700-14629*6800*6700 Trademark hl&sm Origin China Xiamen Shuitou HS Code 84641090 Production Capacity 200sets/Year

Product Description

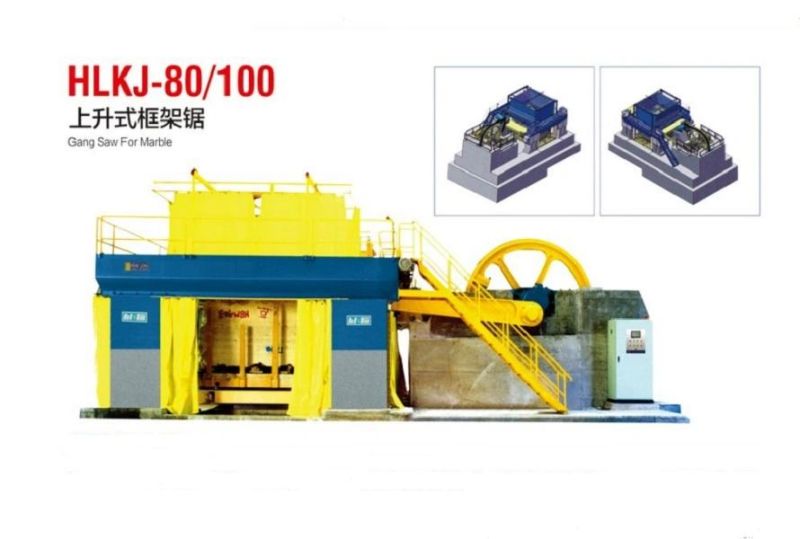

HLKJ-80/100
Gang saw for marble
Product Description
The diamond frame data series is the result of the latest design application in the research and development of marble cutting machinery technology. HLKJ80/100 is a machine that USES long strokes to cut raw marble. Longer sawing frame strokes in the process provide unprecedented cutting output. And ensure the stability of cutting.
From the beginning of development to the closing process of manufacturing, through careful study of mechanical properties and habits and cooperation with the world's best diamond tool manufacturers, this machine can not only guarantee the world's top performance in each different stone, but also have the perfect reliability of the mechanical structure and a long
service life.











More information please contact us
