• Model NO.：CNC Cutting Machine
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Transport Package：Plastic Package, Suitable for Sea Transportation
• Specification：2000*3000*1500mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. CNC Cutting Machine Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Transport Package Plastic Package, Suitable for Sea Transportation Specification 2000*3000*1500mm Trademark Xianda Origin Jinjiang, Fujian, China Production Capacity 1000 Sets/Year

Product Description

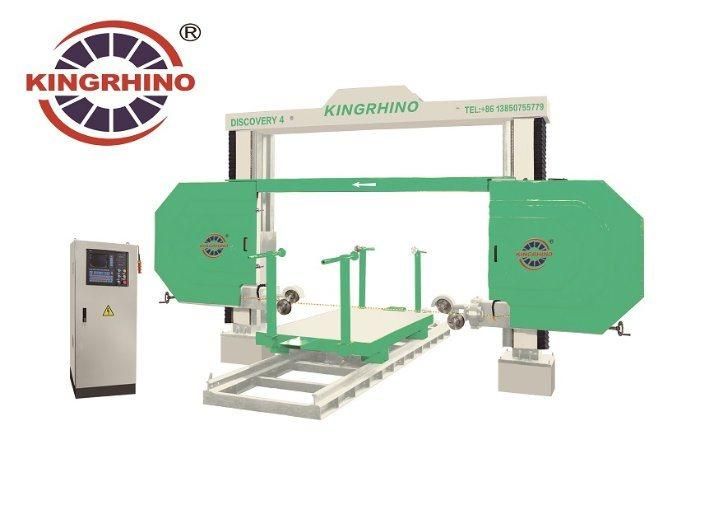

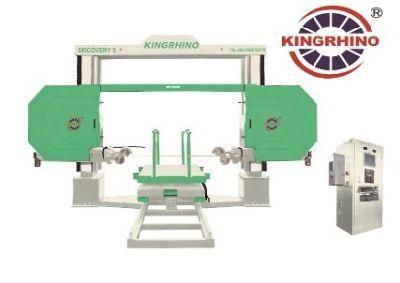

Discovery 4-2000/2500/3000 Marble Stone Wire saw  cutting machine







CNC -2500 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.

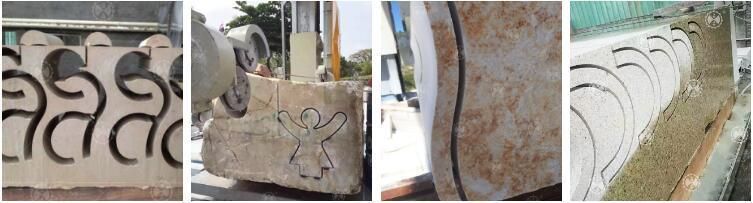

CNC - 2000 Marble Stone Wire saw cutting machine. Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Technical Parameter

Parameter	Unit	Discovery 4-2000	Discovery 4-2500	Discovery 4-3000
Max processing size	mm	3000*2000*1500	3000*2500*1500	3000*3000*1500
Dimension of worktable	mm	2500*1400	2500*1400	2500*1400
Wire speed	m/s	0-40	0-40	0-40
Main motor	kw	11	11	11
Outline dimension	mm	6800*6200*3800	7800*6200*3800	8800*6200*3800
Gross weight	kg	5000	5500	6000
Water consumption	m3/h	4	4	4

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone machine, diamond wire saw, stone cutting machine
