Stone Processing Machinery

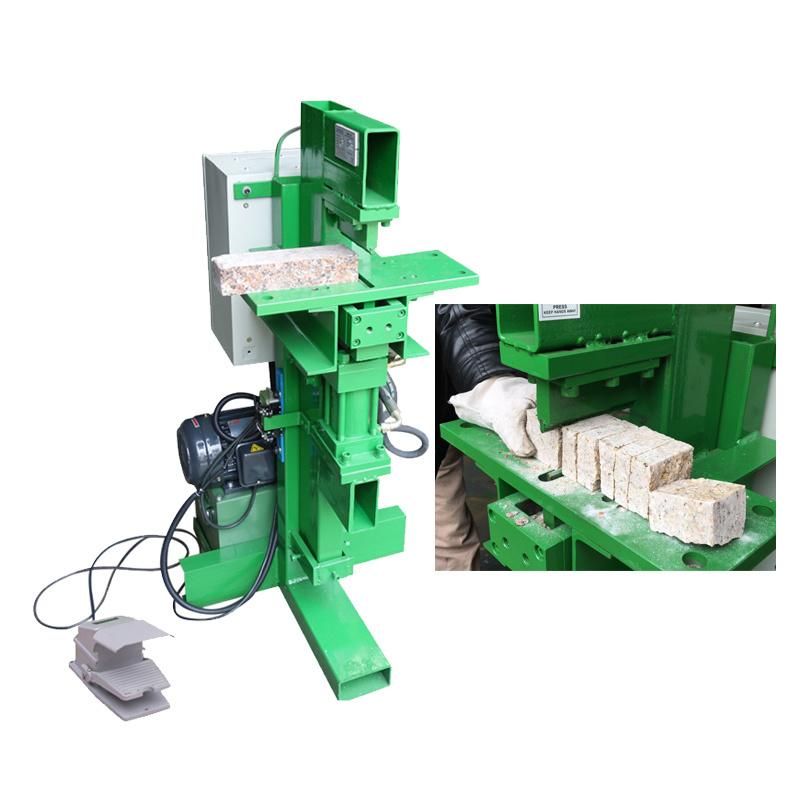

Ms-5ah Hydraulic Stone Mosaic Chopper Machine

Xiamen Bestlink Factory Co., Ltd.
  • Type:Hydraulic Cutting Machine
  • Usage:Fire Brick, Red Brick, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application:Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
  • Source Voltage:380V
  • Automation:Semi-automatic
  • Cutting Ability:High Speed

Base Info

  • Model NO.:MS-5AH Mosaic Chopper Machine
  • Control:CNC
  • Certification:CE
  • Warranty:1 Year
  • Suitable Stone:Granite, Marble, Sandstone, Limestone, Concrete
  • Voltage:as Per Client′s Request
  • Capacity:800 PCS Per Hour
  • Transport Package:Plywood Box
  • Specification:1400*900*600mm
  • Trademark:BESTLINK
  • Origin:Fujian, China
  • HS Code:84791090
  • Production Capacity:200sets Per Month

Description

Model NoMS-5AH (hydraulic)Splitting Force5 tonsMax Cutting Width120 mmMax Cutting height100 mmPower Supplymotorized, 1.0kwOil Tank60 LOverall Size1400*900*600mmNet Weight235kg

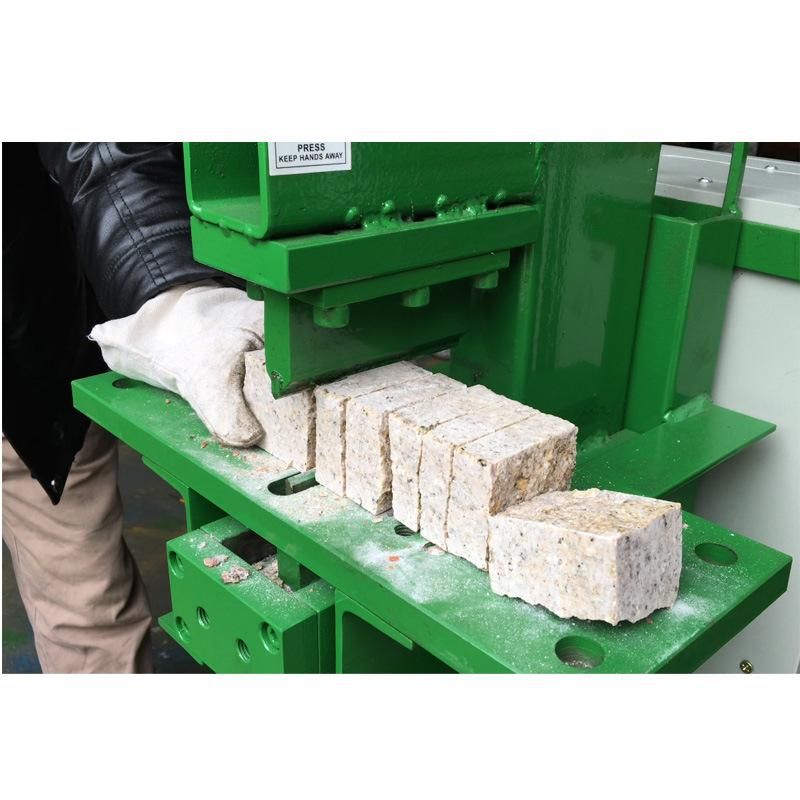

Ms-5ah Hydraulic Stone Mosaic Chopper Machine

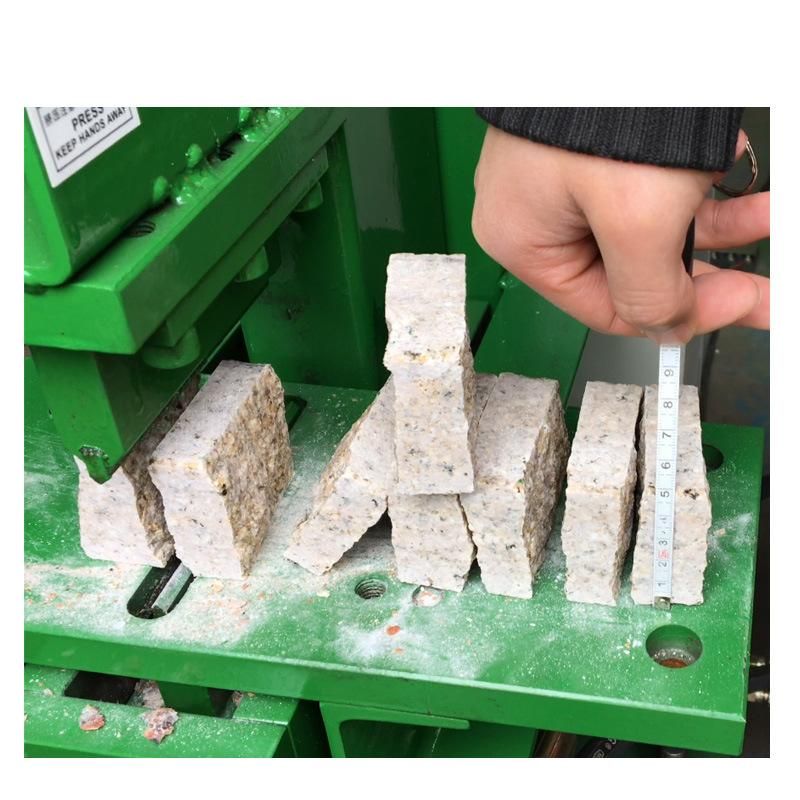

Ms-5ah Hydraulic Stone Mosaic Chopper Machine

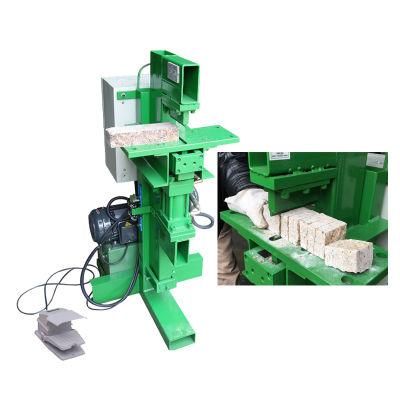

Ms-5ah Hydraulic Stone Mosaic Chopper Machine

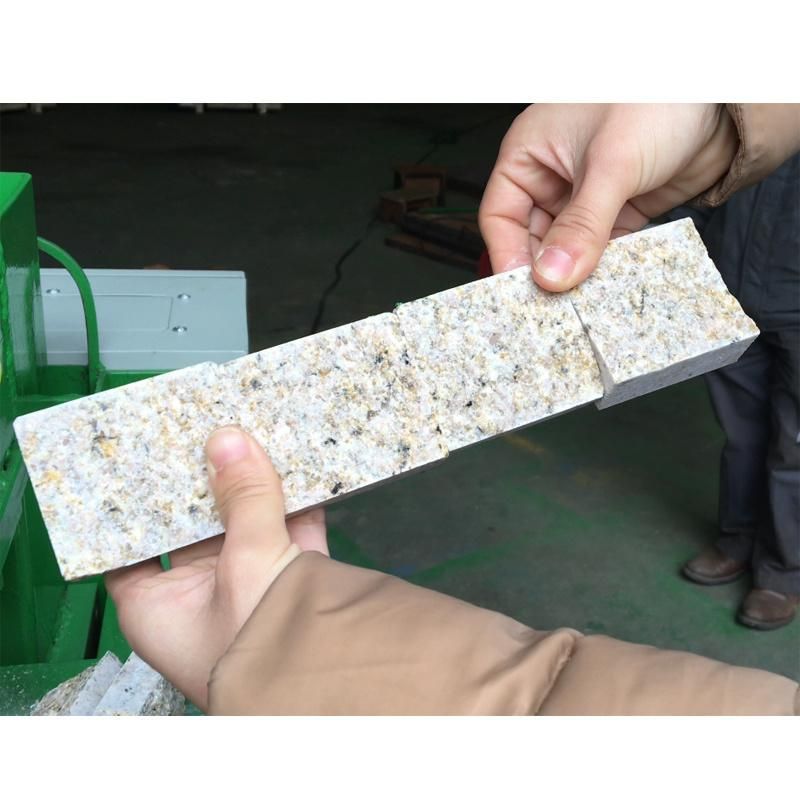

Ms-5ah Hydraulic Stone Mosaic Chopper Machine

 We have two main business field:
1) All Drilling and Quarrying equipments
     website: xmbestlink.en.made-in-china.com
2) Natural Stone Processing/Cutting/Splitting machines
     website: xmbestlink.en.made-in-china.com

Our products range:
1. Expansive mortar (non-explosive demolition agent, soundless cracking agent)
2. Hand-held rock drill Y6,Y20, Y24, and Y26 (pneumatic),TY24C
3. Fully hydraulic rock drill BH26, BH28 (with pushing cylinder)
4. Pneumatic rock drill with pushing air-leg YT18, Y19A,YT24, YT28
5. Internal combustion rock drill (hand held, gasoline) YN27
6. Line drilling machine
7. DTH driller, diamond wire saw
8. Button bits, cross bit, chisel bits
9.Plug hole rod, Extension rod, shank adapter,coupling sleeves
10. DTH hammers & bits,DHD, COP, IR, Bulroc and SD series
11. Diamond wire rope, hydro-bag (steel), air bag (polymer) for blocks pushing
12. Stone cutter for block cutting
13. Hydraulic splitting machine
14. Wedges & feathers
15. Hose (for air, water, hydraulic...)
