Hot Sale Impact Crusher Equipment (PF1010/1210/1214/1315)
Shanghai Zenith Mineral Co., Ltd.- Type：Impact Crusher
- Application：Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Impact
- Compressive Strength (For Crushing)：>300MPA
- Crushing Degree：Coarse Crusher
Base Info
- Model NO.：PF-1007,PF-1010,PF-1210,PF-1214
- Finished Surface：Hole Process
- Certification：CE, ISO, GOST
- Condition：New
- Color：Iron Grey
- Spare Parts Supply：for Whole Year
- Test&Installation：Engineer Assigned
- After-Sale Service：for Whole Using Life
- Export Markets：Global
- Transport Package：Container, Nude Packs, in Bulk
- Specification：ISO9001: 2000
- Trademark：Zenith
- Origin：China
- HS Code：8474209000
- Production Capacity：15-350tph
Description
Basic Info.
Model NO. PF-1007,PF-1010,PF-1210,PF-1214 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 15-350tphProduct Description

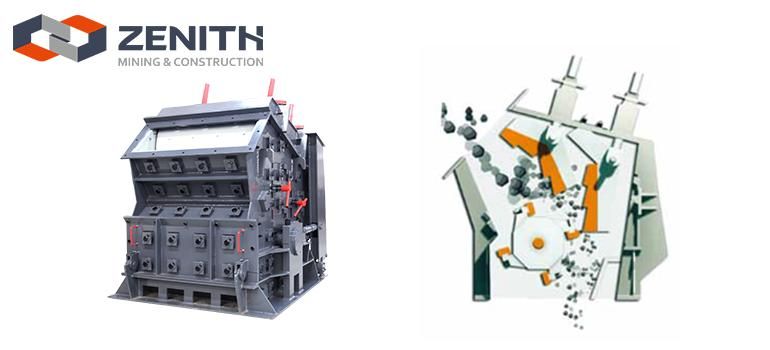

Hot sale Impact Crusher Equipment (PF1010/1210/1214/1315)impact crusher equipment Application:
1. Stone crushers are optimized after adopting advanced techniques.
2. Stone crusher can crush granite, basalt, bluestone, etc the diameters of which are from 100mm to 500mm, and its crushing compression strength is not more than 320MP. It features: Big reduction ratio, high crushing efficiency, and convenient maintenance. The final product is desirable device for aggregation used in highway and railway surface and water and electricity industry.
Impact crusher features:1. Locking sleeve assembly Connection
2. Blow bar with high chrome
3. Hydraulic or hand opening
4. Special impact plate
5. Cubical shape of final product
6. Easy maintenance
7. Reliable performance
Impact crusher technical data:
| Model | Spec. | Feeding Opening (mm) | Feeding Size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| PF-1007 | Φ 1000× 700 | 400× 730 | ≤ 250 | 15-60 | 37-55 | 9.5 |
| PF-1010 | Φ 1000x1050 | 400x1080 | 300 | 50-90 | 55-75 | 14 |
| PF-1210 | Φ 1250x1050 | 400x1080 | 300 | 70-130 | 110-132 | 17 |
| PF-1214 | Φ 1250x1400 | 400x1430 | 300 | 90-180 | 132-160 | 22 |
| PF-1315 | Φ 1320x1500 | 860x1520 | 350 | 120-250 | 180-260 | 26 |
| PF-1320 | Φ 1320× 2000 | 860× 2030 | 500 | 160-350 | 300-375 | 30 |
