• Model NO.：PE500x750,PE600x900,PE750x1060,PE900x1200...
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PE500x750,PE600x900,PE750x1060,PE900x1200... Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 40-850tph

Product Description

Jaw crusher introduction:

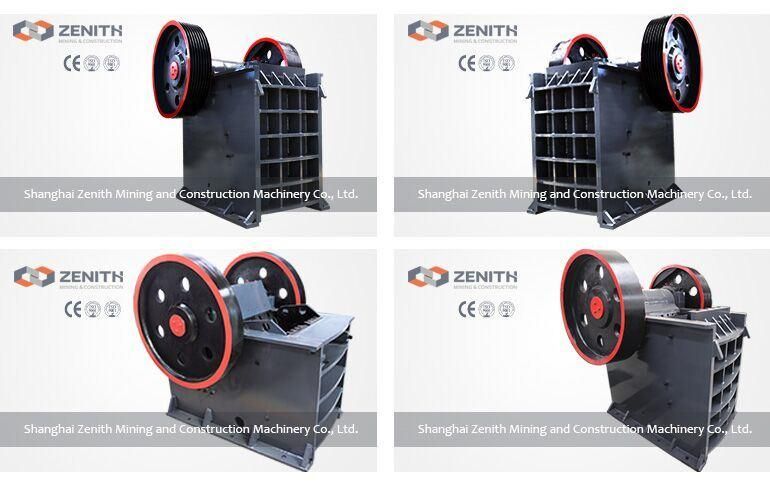

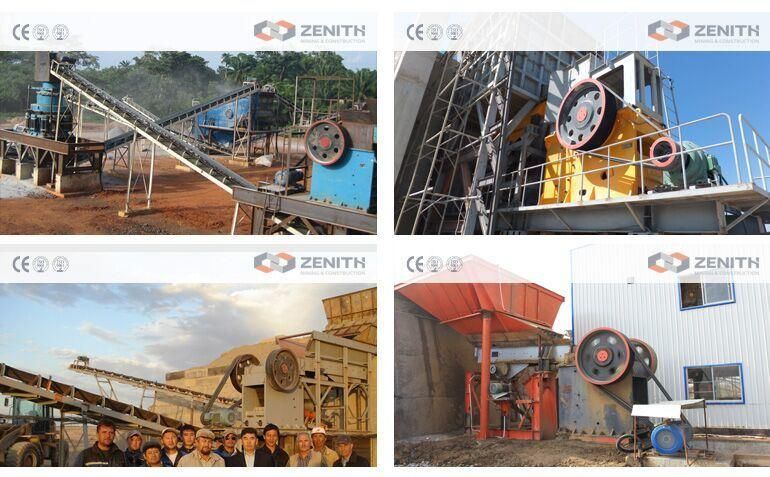

Zenith jaw crusher series are of 14 different models, which can meet most crushing requirements in primary and secondary crushing. Flexibility discharge opening setting of jaw crusher allows higher degree match with relative equipment. Zenith jaw crusher is easy to install, debug and maintenance, the continuous improvement and refinement has made it the preferred jaw crusher among professionals and customers. Every feature of Zenith jaw crusher has been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.

Jaw crusher Main Features and Benefits:

1. High reliability
2. Flexible capacity
3. Simple structure and easy to operate
4. Over-loading protection
5. Easy replacement of wear and spare parts
6. Long service time
7. High efficiency
8. Wide ranges of choices

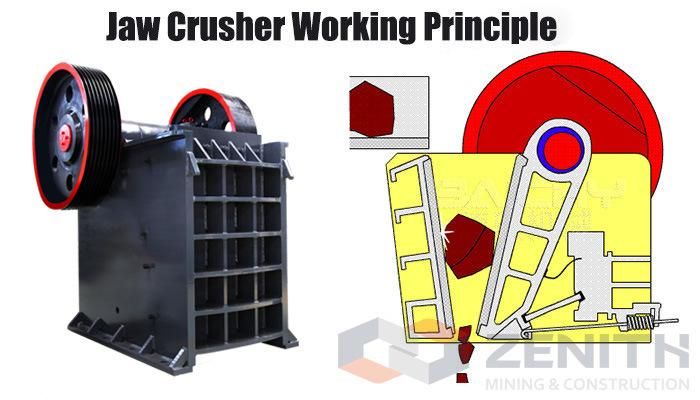

Jaw crusher Working Principle jaw crusher is typically of the square opening design, and secondary Stone Crushing Machine is of the rectangular opening design. Stone Crushing Machine reduces large size rocks or ore by placing the rock into compression. A fixed jaw board, mounted in a "V" alignment is the stationary breaking surface, while the movable jaw exerts force on the rock by forcing it against the stationary plate. The space at the bottom of the "V" aligned jaw plates decide the crusher product size gap, or the size of the crushed product from the jaw crusher. The rock remains in the jaw until it is small enough to pass through the gap at the bottom of the jaws.

Jaw crusher technical data:

Model	Feeder Opening (mm)	Setting Adjustment Range (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension (mm)
PE500x750	500x750	50-100	425	40-110	45-55	12	2035x1921x2000
PE600x900	600x900	65-160	480	90-180	55-75	17	2290x2206x2370
PE750x1060	750x1060	80-140	630	110-320	90-110	29	2655× 2302× 3110
PE900x1200	900x1200	95-165	750	220-450	110-132	52	3200× 3050× 2950
PE1000x1200	1000x1200	195-265	850	315-550	110-132	57	3800× 3166× 3045
PE1200x1500	1200x1500	150-300	950	400-850	220	82.5	4200× 3750× 3820
