• Model NO.：P72,P81
• Control：CNC
• Certification：ISO, CE
• Spindle Motor：4 Kw
• Lifting Stroke：100 mm
• Hydraulic Pressure：40 Ton
• Payment：T,T,LC
• Useful Working Length：400mm
• Transport Package：Plastic Packing
• Specification：Dimention 0.7*0.7*1.6
• Trademark：AGA
• Origin：China
• HS Code：84642090
• Production Capacity：300sets,Month

Basic Info.

Model NO. P72/P81 Control CNC Certification ISO, CE Spindle Motor 4 Kw Lifting Stroke 100 mm Hydraulic Pressure 40 Ton Payment T/T,LC Useful Working Length 400mm Transport Package Plastic Packing Specification Dimention 0.7*0.7*1.6 Trademark AGA Origin China HS Code 84642090 Production Capacity 300sets/Month

Product Description

Hydraulic Splitting / Pressing / Stamping Machine for Cobble Stone
1.Product No. P72/P81
2. Good services and warranty.
3. High power and easily operation.

Basic Info:
Stone pressing machine applicable for making paver tiles.
The oil cylinder is on the upper position. This creates a good air proof result and also protects is enlarged.  The manual handle provides safe operation.
The machine works by hydraulic to stamp out the pavers and diversified patterns available by changing the moulds.

Working Pictures:

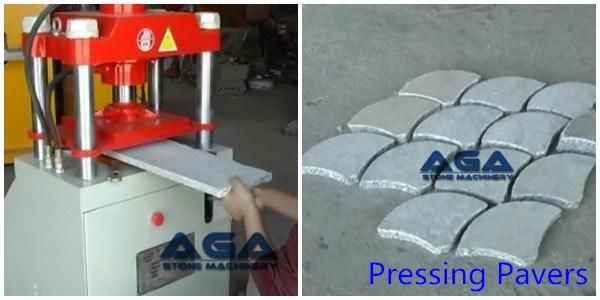

1.Pressing Pavers

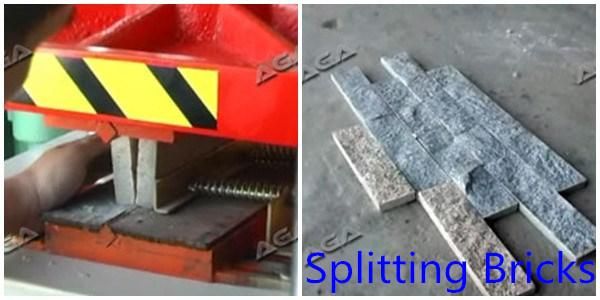

2.Splitting Bricks

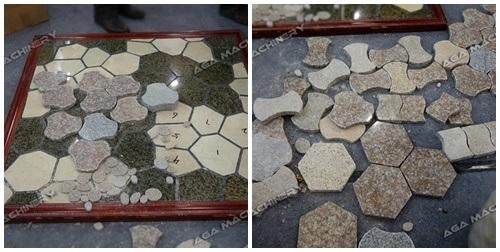

3.Various Shapes of Pavers

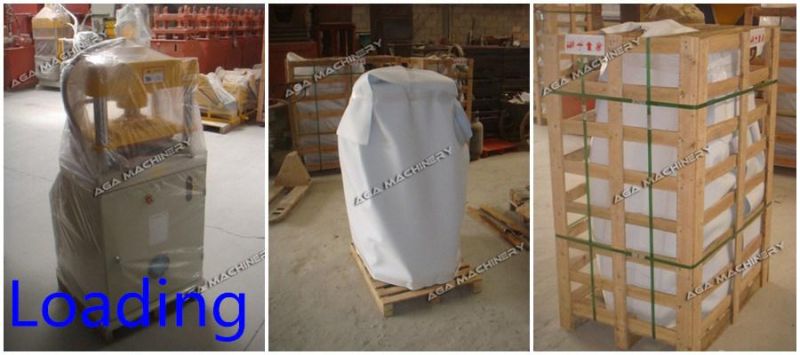

4.Loading


Specification:

P81

Max. cut size (L×W×H)	300×300 mm  12"×8"
Vertical stroke	100 mm   4"
Pressure	30 ton
Spindle motor	4 Kw   5 HP
Size (L×W×H)	0.7×0.7×1.6 m
Weight	800 Kg

P72

Max. split length	400 mm 16"
Up & down stroke	200 mm 8"
Pressure	40 Ton
Spindle motor	4 Kw  5HP
Size (L×W×H)	0.6×0.6×1.8 m
Weight	800 Kg

Features:
1,Hydraulic Stone Stamper
2,Automatic System with Easy Operation and Efficiency
3,Making Pavers for Plaza,Street, Garden, etc.
4,Max. Working Length: 400mm
5,Hydraulic Pressure: 40 Ton
6,Lifting Stroke: 200mm
7,Longiverty: 15 years
8,warranty: one year

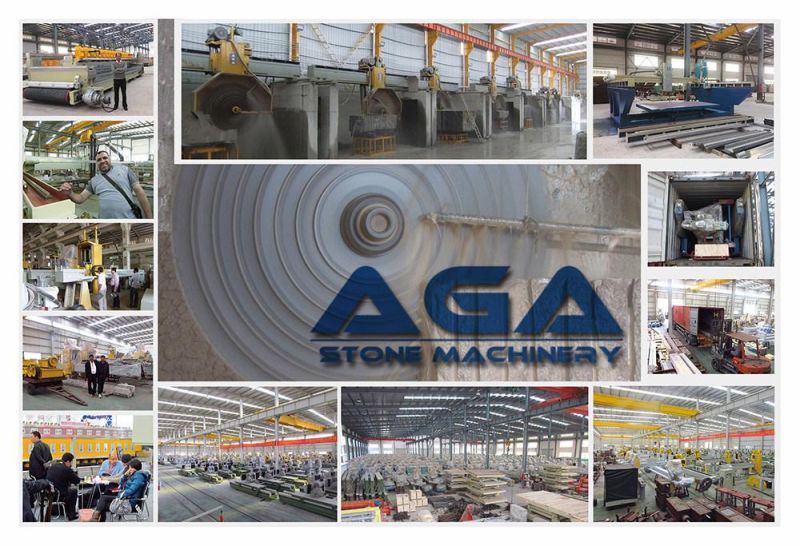

AGA Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block  cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.




AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

AGA Products:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.

Keyword:
Stone Splitter Machine,Stone Stamping Machine,Marble Splitter Machine,Marble Stamping Machine,Granite Stamping Machine,Paving Stone Machine.
