Bestlink Hydraulic Mosaic Tile Making Machine

Xiamen Bestlink Factory Co., Ltd.

Type：Hydraulic Cutting Machine
Application：Machinery & Hardware, Construction, Mineral Industry
Source Voltage：380V
Automation：Semi-automatic
Certification：CE
Color：Green

Base Info

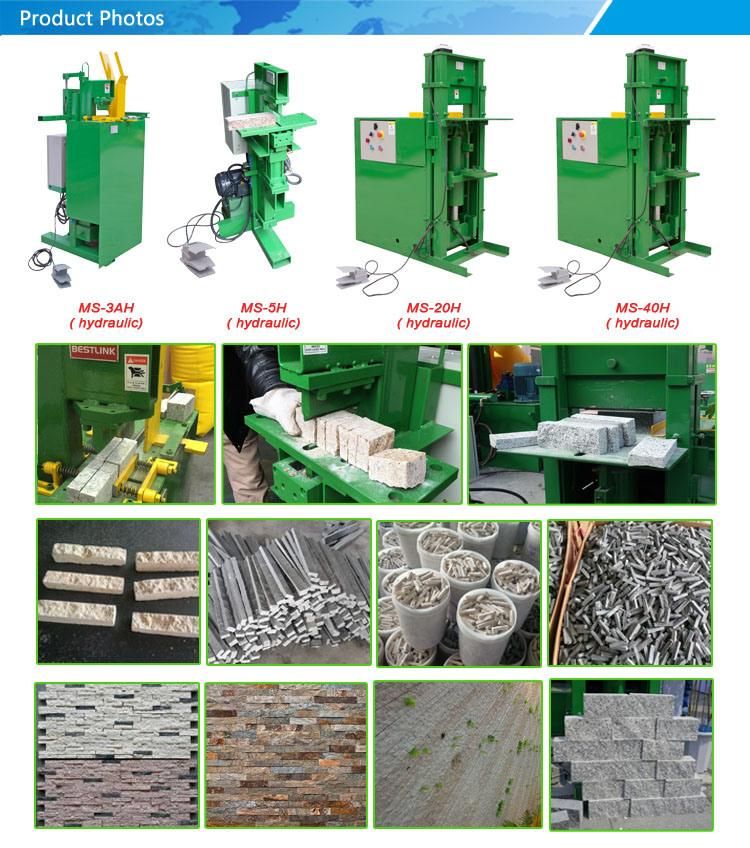

Model NO.：MS-3AH , MS-5H , MS-12H , MS-20H
Measure：500*600*1600 mm
Splitting Force：12tons
Power Supply：3kw
Gross Weight：210kgs
Transport Package：Pallet
Specification：CE
Trademark：BESTLINK
Origin：China
HS Code：84741090
Production Capacity：10000sets Per Year

Description

ModelMS-3AHMS-5HMS-12HMS-20HSplitting force (T)351220Max. Splitting Width (mm)120120240240Max.Splitting Heighth (mm)50100100150Power SupplyHydraulic,1kwHydraulic,1kwHydraulic,3kwHydraulic,5kwOverall Size (cm)140*90*6090*60*14090*50*130110*50*140Weight (kg)235235350450Aplicationsplit rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal controlChop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control.Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control.Chop various sizes flat face stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control.
Bestlink Hydraulic Mosaic Tile Making Machine

Bestlink Hydraulic Mosaic Tile Making Machine

Bestlink Hydraulic Mosaic Tile Making Machine

Bestlink Hydraulic Mosaic Tile Making Machine
