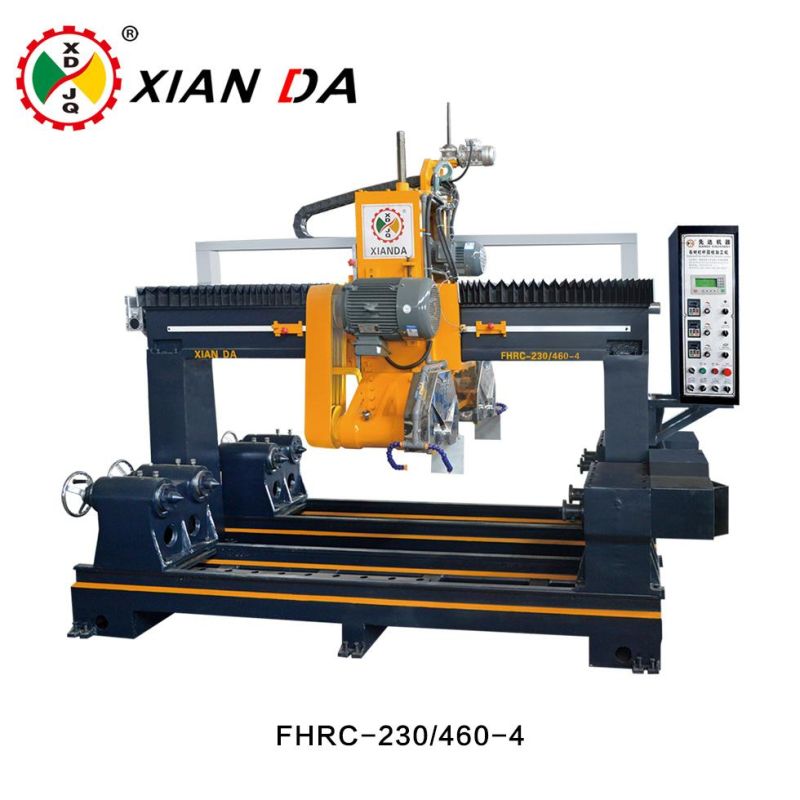

Four Pieces Baluster Cutting Machine for Stone Granite and Marble
Fujian Xianda Machinery Co., Ltd.- Type：Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：FHRC-230,460-4
- Control：PLC
- Certification：ISO
- Use for：Baluster Cutting
- Diameter of Blade：500mm
- Max Processing Diameter：230mm,4PCS,460mm,2PCS
- Cutting Length：50-1500mm
- Main Motor：11kw X 2
- Gross Motor：29.5kw
- Gross Weight：5000kg
- Water Consumption：6m³,H
- Warranty：12 Months
- Specification：3600x2000x3200mm
- Trademark：XIANDA
- Origin：Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. FHRC-230/460-4 Control PLC Certification ISO Use for Baluster Cutting Diameter of Blade 500mm Max Processing Diameter 230mm/4PCS,460mm/2PCS Cutting Length 50-1500mm Main Motor 11kw X 2 Gross Motor 29.5kw Gross Weight 5000kg Water Consumption 6m³/H Warranty 12 Months Specification 3600x2000x3200mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description
The machine adopts PLC control,three inverter,bridge structure,synchronous lifting and left-right walking,easy to operate,practical structure,and high efficiency.Dedicated to the processing of baluster,pillar,column base column caps,roadblock and other.
| Parameter | Unit | FHRC-230/460-4 |
| Diameter of blade | mm | φ500 |
| Max processing diameter | mm | φ230/4pcs;φ460/2pcs |
| Cutting length | mm | 15-1500 |
| Main power | kw | 11x2 |
| Gross motor | kw | 29.5 |
| Outline dimension | mm | 3600x2000x3200 |
| Gross weight | kg | 5000 |
| Water consumption | m³/h | 6 |

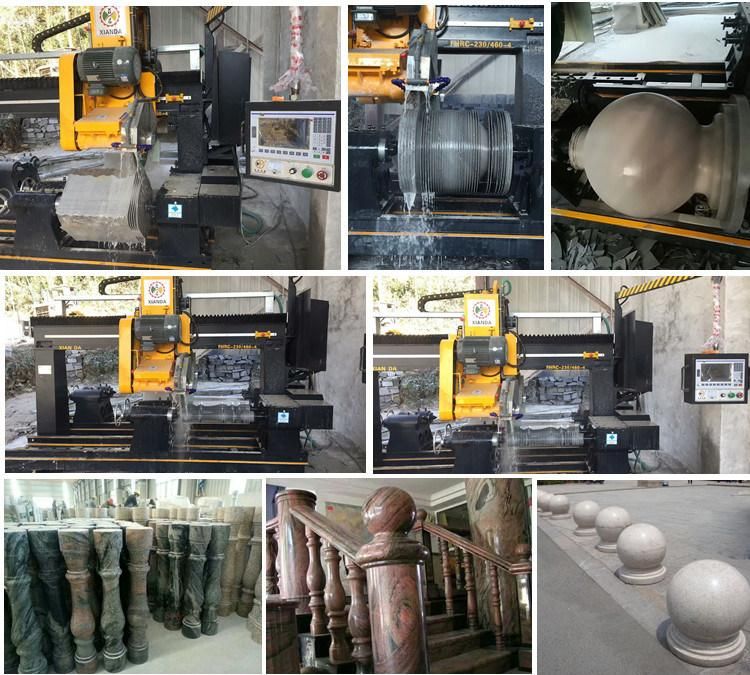

Product Show
Our Services
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
