Automatic Stone Edge Cutting Equipment for Profiling Door/Window Frame

Xiamen Aga Import and Export Co., Ltd.
  • Type：Flame Cutting Machine
  • Usage：Granite, Marble
  • Application：Machinery & Hardware, Construction, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

Base Info

  • Model NO.：FX1200
  • Control：CNC
  • Certification：ISO, CE
  • Blade Size：300-600mm
  • Max. Cut Length：2500,3000mm
  • Max.Cut Depth：400mm
  • Max.Cut Width：1200mm
  • Weight：4000kg
  • Spindle Motor：15 Kw
  • Transport Package：Wood
  • Specification：4.9x2.2x2.4m
  • Trademark：AGA
  • Origin：China
  • HS Code：84609090
  • Production Capacity：50PCS,Month

Description

Blade sizeΦ300-Φ600 mm  12"-24" Max. cut length2500/3000 mm  98"/118"Max. cut width1200 mm  47"Max. cut depth400 mm  16"Table size2500/3000 × 1200 mmSpindle motor15 Kw  20HPWater consumption3.6 m³/hSize4.9×2.2×2.4 mWeight4,000 Kg


Description of Stone Cutting Equipment
The stone cutting equipment is microcomputer controlledand is applicable for automatically cutting the profile  mouldings, boarder line, door frame, window frame etc. Its max. blade diameter is about 600mm. Its max. cutting size is 3000x1200x400mm. An optical fiber device tracks the template and makes precise copy cut automatically. The template is designed by yourself and it is easy to change for diversified patterns. There are two blades mounted on the spindle so it is able to process two materials at the same time that provides high working efficiency. The automatic stone cutting equipment with outstanding cost performance and high efficiency has won trust and reputation from our customers.
More Pictures and Working Videos on Http://agastonemachine.en.made-in-china.com

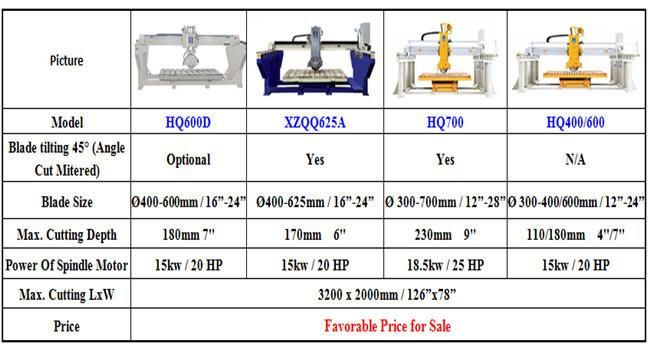

Fully Auto Granite Cutting Equipment for Reference
Automatic Stone Edge Cutting Equipment for Profiling Door/Window Frame

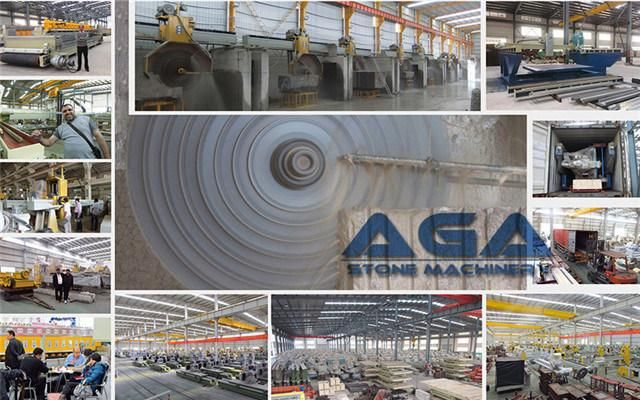

Company Description
AGA has been devoting to making machinery for processing and fabricating marble and providing reliable service.The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A., Canada, Europe, Mid East, Egypt, India, etc.Our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers obtain the best return on the investment.
Automatic Stone Edge Cutting Equipment for Profiling Door/Window Frame




keywords:stone cutting equipment/granite cutting equipment/marble cutting equipment
