• Model NO.：FHRC-230,460-4
• Control：PLC,CNC
• Certification：API, ISO, CE
• Diamond of Blade：Φ500
• Max Processing Diameter：Φ230,2PCS, Φ460,1PC
• Cutting Length：50-1500mm
• Main Power：11*2mm
• Gross Motor：29.5kw
• Outline Dimension：3600*2000*3200
• Gross Weight：5000kg
• Water Consumption：4m3,H
• Transport Package：Plastic Package
• Specification：3600*2000*3200
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. FHRC-230/460-4 Control PLC/CNC Certification API, ISO, CE Diamond of Blade Φ500 Max Processing Diameter Φ230/2PCS, Φ460/1PC Cutting Length 50-1500mm Main Power 11*2mm Gross Motor 29.5kw Outline Dimension 3600*2000*3200 Gross Weight 5000kg Water Consumption 4m3/H Transport Package Plastic Package Specification 3600*2000*3200 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

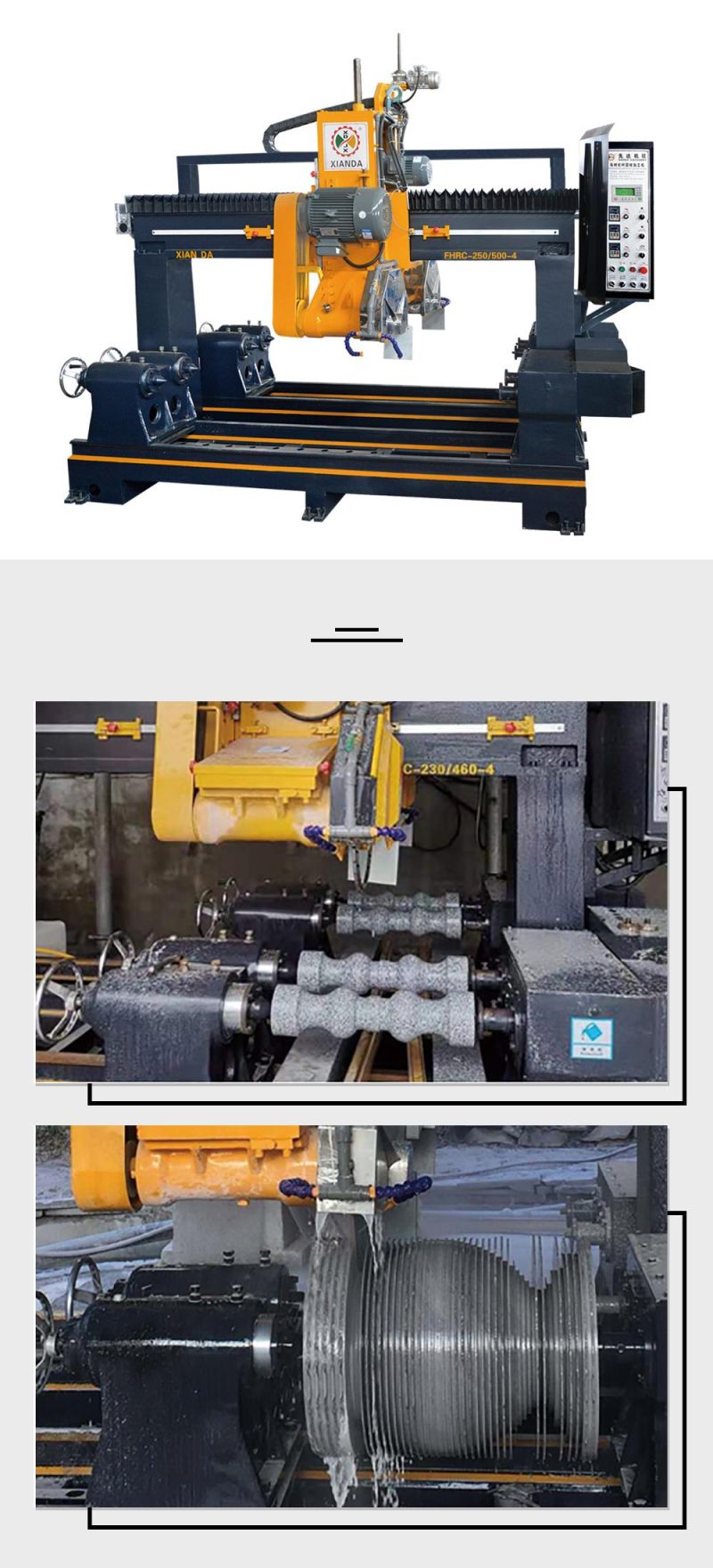

FHRC-230/460-4 marble granite handrail/column/Balustrade Cutting Machine adopts PLC control, the use of profiling probe devices, the probe automatically track curved (straight) line template, template profiling, both of blade holder in a whole block, moving in the oil-immersed cross beam, and adopt screw drive lifting, screw have a long life, horizontal, vertical moving steady, smooth cutting, high efficiency, while the use of oilimmersed gearbox gear structure, better gear and turbine housing to protect the process ideal for different specifications of cylinder, railings, flower pots and other special-shaped ball and stone products.



Technical Parameter


Parameter	Unit	FHRC-230/460-4
Blade Diameter	mm	φ500
Max Processing Diameter	mm	φ230/4pcs ; φ460/2pcs
Cutting Length	mm	200-1500
Main Motor	kw	11*2
Gross Motor	kw	29.5
Outline Dimension	mm	3600*2000*3200
Gross Weight	kg	5000
Water Consumption	m3/h	6

Xianda machinery


Fujian  Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Other stone cutting machines we produce:
       Diamond Wire Saw Machine for Trimming/Cutting/Squaring/Profiling,
       Bridge Cutting Machine for Block/Slab/Strip/Tiles,
       Stone Profiling Machine for Linear/Baluster/Pillar/Vase,
       Column Slab Processing Machine.
