• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

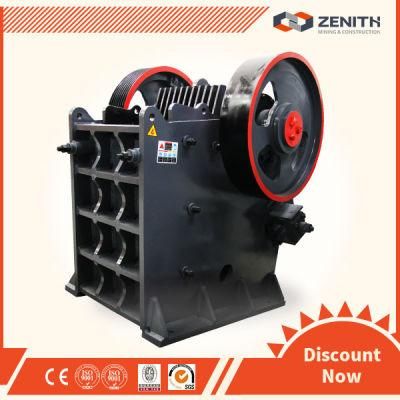

50-650tph basalt jaw crusher with high quality

1. Introductions of basalt jaw crusher
 basalt jaw crusher has the features of high crushing and even product size ratio.  It can be used to crush material, whose compression strength is not more than 320Mpa. PE Series is used in primary crushing, while PEW series is used in secondary crushing and fine crushing.And the basalt jaw crusher can be used in the field of mining, metallurgy, building material, highway, railway, water conservancy and chemical, etc.

 2. Features of basalt jaw crusher
 1) Advanced structure 2) High performance 3) High crushing ratio 4) High capacity 5) Overloading protection 6) Long-span life 7) More than 40 years experience manufacturer

 3. Work principles of basalt jaw crusher
 basalt jaw crusher are ideally primary and secondary crushing, with low power consumption and easy maintenance, each basalt jaw crusher has been carefully designed and manufactured to provide superior quality and performance. The optimal designed crushing chamber makes large reduction ratio and high efficiency. And the high rotating speed of the swing jaw and curve-designed haw plate results in a high capacity. basalt jaw crusher can achieve 4-6 crushing ratio and make the final ore in a even shape and it is widely applied to crush high hardness, medium hardness and soft rocks and ores. However, basalt jaw crusher can be used in Mining, Metallurgical industry, Construction and road building, Chemistry etc.

 4. After-Sale Service of our basalt jaw crusher
 Erection and CommissioningOperator TrainingSpare Parts SupplyWarranty Terms: 1 year Delivery Time: 25~30 days after receiving advanced paymentProducts Certificate: ISO9001:2008 5. Main specifications of basalt jaw crusher


Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600×2500×2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300×2320×3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140×2660×3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920×1460×1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400×2050×1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400×1850×1310
