• Model NO.：Discovery 5
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Processing Size：2600*2600*1500mm
• Dimension of Worktable：1400*2000mm
• Main Motor：11kw
• Outline Dimension：8000*6500*4100mm
• Gross Weight：7500kg
• Water Consumption：4m3,H
• Transport Package：Load in a 20 Feet Container
• Specification：8000*6500*4100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Discovery 5 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Processing Size 2600*2600*1500mm Dimension of Worktable 1400*2000mm Main Motor 11kw Outline Dimension 8000*6500*4100mm Gross Weight 7500kg Water Consumption 4m3/H Transport Package Load in a 20 Feet Container Specification 8000*6500*4100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

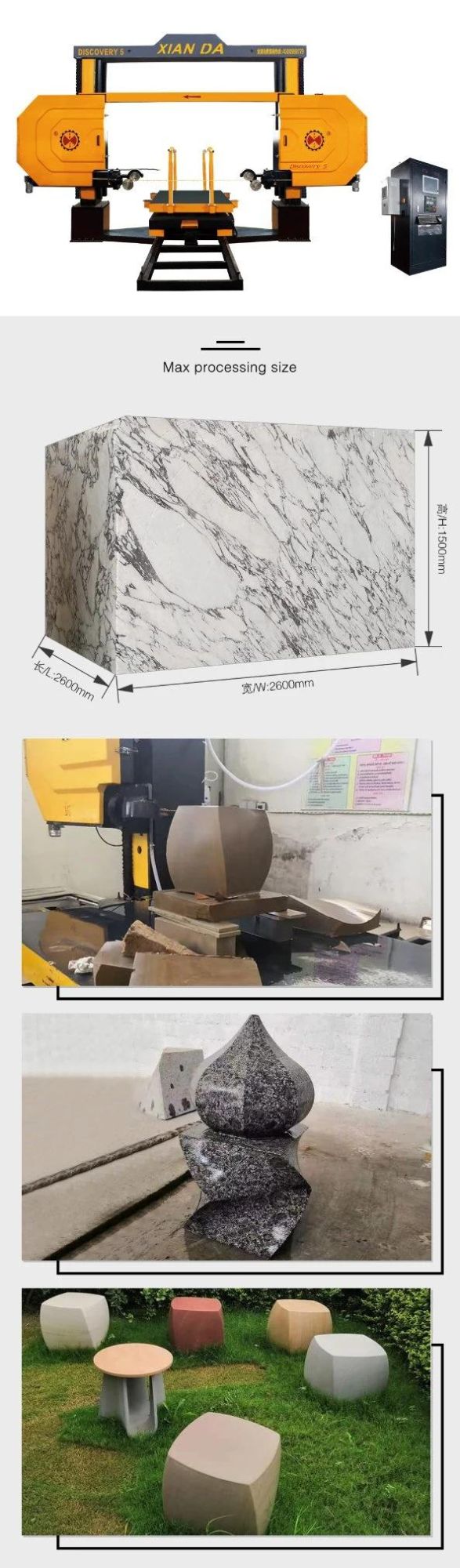

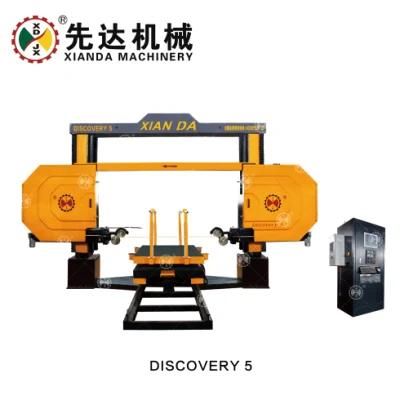

Discovery 5 adopts 5 axis CNC control systerm,It can process different size arc slabs, column, number, Letter  also different shapes of marble or granite.
and It can also process 3D shapes, Main body with advanced and unique structure, makes its cutting with excellent priecision, stability, efficiency etc advantages. its the ideal equipment for processing the specail shapes stone.



Technical Parameter

Parameter	Unit	Discovery 5
Max processing size	mm	2600*2600*1500
Dimension of worktable	mm	1400*2000
Main motor	kw	11
Wire speed	m/s	0-40
Outline dimension	mm	8000*6500*4100
Gross weight	kg	7500
Water consumption	m3/h	4

Xianda machinery



Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
