Bestlink Cp-90 Series Hydraulic Stone Pressing Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Stone Stamping Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic
- Cutting Ability：Medium Speed
Base Info
- Model NO.：CP-90 stone pressing machine
- Control：No
- Color：Green or as Our Request
- Fuctions：Stamping, Splitting, Cutting
- Splitter Power：40t and 70t
- Power：Hydraulic
- Transport Package：Crate
- Specification：CE
- Trademark：BESLINK
- Origin：Xiamen, Fujian
- HS Code：84791090
- Production Capacity：500 Set ,Year
Description
Basic Info.
Model NO. CP-90 stone pressing machine Control No Color Green or as Our Request Fuctions Stamping, Splitting, Cutting Splitter Power 40t and 70t Power Hydraulic Transport Package Crate Specification CE Trademark BESLINK Origin Xiamen, Fujian HS Code 84791090 Production Capacity 500 Set /YearProduct Description
Hydraulic Stone Pressing Machine for Cutting StoneProduct Description
1.CE Certificate
2.40 different models
3.It is used to press letfover and slabs
These kind of machine is specially designed for changing the leftovers of slabs or tiles into different shapes with different moulds by hydraulic system inside;The CP-90 machine have the output around 50m² ~100m² Per day, certainlly, if the operators have very goodexperience and skill, the yield will be much more, the machine have very compact structure, it is easily operated and maintained.
Tehcnial data for the most popular one CP-90:
Overall size:Main machine-- 50X80X100cm.150kg
For processing Size:20X20X1-5cm
Pump pack---50*50*65cm, 100kg
Hydraulic Pressure:20Mpa
Power:4KW
Power supply requirement:AC, 3 phases, 380± 10%@50Hz
Weight:650kgs
Max Movement Range (up to down):10cm
Maximum processing thickness:5cm
Lifespan of pressing blade:700-800 sqm(medium hardness).
Online Video:HTTP://xmbestlink.en.made-in-china.com

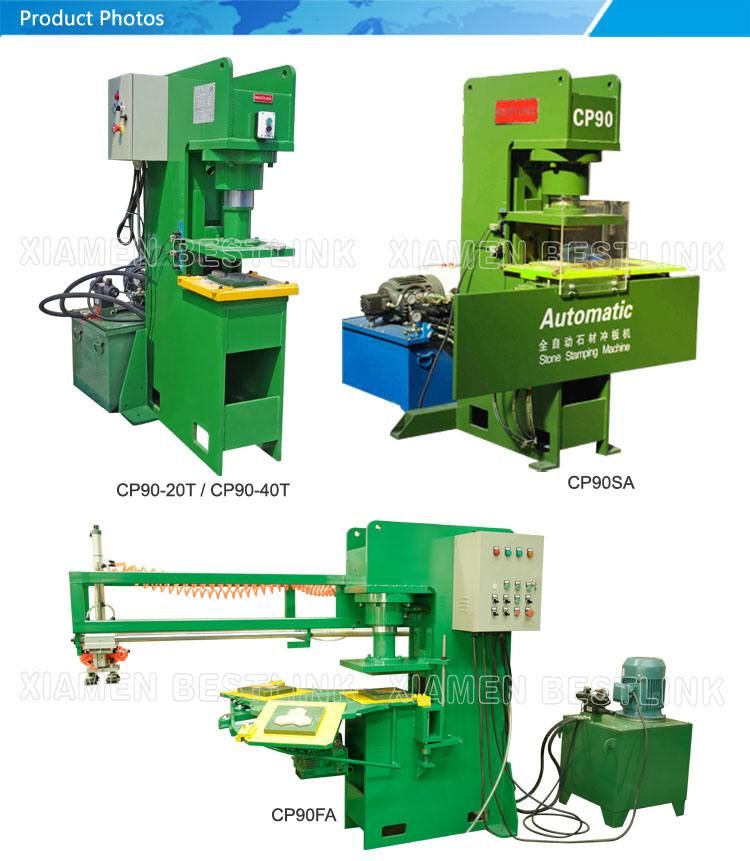

| Model | CP90-20T | CP90-40T | CP90SA | CP90FA |
| Hydraulic pressure (Mpa) | 20 | 20 | 20 | 20 |
| Splitting power (T) | 20 | 40 | 40 | 40 |
| Electric motor power (kw ) | 3.7 | 5.5 | 5.5 | 9 |
| Max.slab stamping size (cm) | 30*30*3 | 30*30*5 | 30*30*5 | 30*30*5 |
| Max splitting length (cm) | 30 | 35 | Semi-automatic | Fully-automatic |
| Slab thickness (cm) | 1-3 | 1-5 | 1-5 | 1-5 |
| Machine size (cm) | 80*100*150 | 80*100*150 | 80*100*150 | 230*95*185 |
| Weight (kg) | 500 | 580 | 650 | 1500 |
| Fuctions | stamping,cutting, splitting | stamping,cutting, splitting | stamping | stamping,air consumption 1m3/min. |
