• Model NO.：Discovery 5
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Dimension of Worktable：2500*1300mm
• Main Motor：11kw
• Outline Dimension：8000*6300*3800mm
• Gross Weight：7000kg
• Water Consumption：4m3,H
• Transport Package：Load in a 20 Feet Container
• Specification：3000*2000*1500mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. Discovery 5 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Dimension of Worktable 2500*1300mm Main Motor 11kw Outline Dimension 8000*6300*3800mm Gross Weight 7000kg Water Consumption 4m3/H Transport Package Load in a 20 Feet Container Specification 3000*2000*1500mm Trademark Xianda Origin Jinjiang, Fujian, China Production Capacity 1000 Sets/Year

Product Description



Technical Parameter

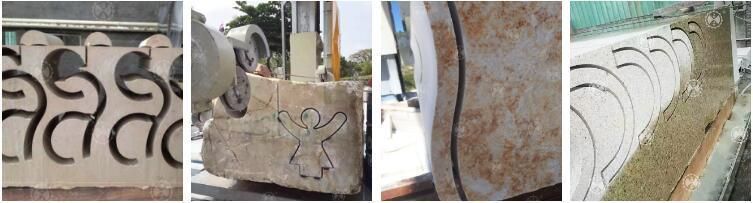

Discovery 5 adopts 5 axis CNC control system, it can process different size arc slabs, column,roman column,number,letter,Chinese words also different shapes of marble or granite.

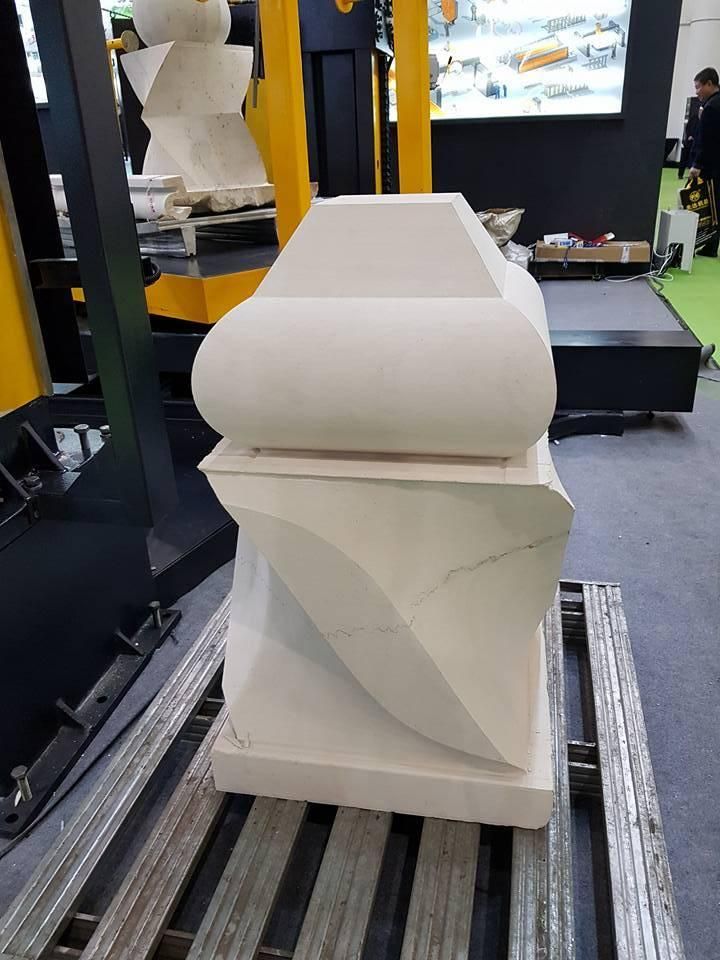

And it can also process 3D shapes. Main body with advanced precision, efficiency etc advantages.
It's the ideal equipment for processing the special shapes stone.

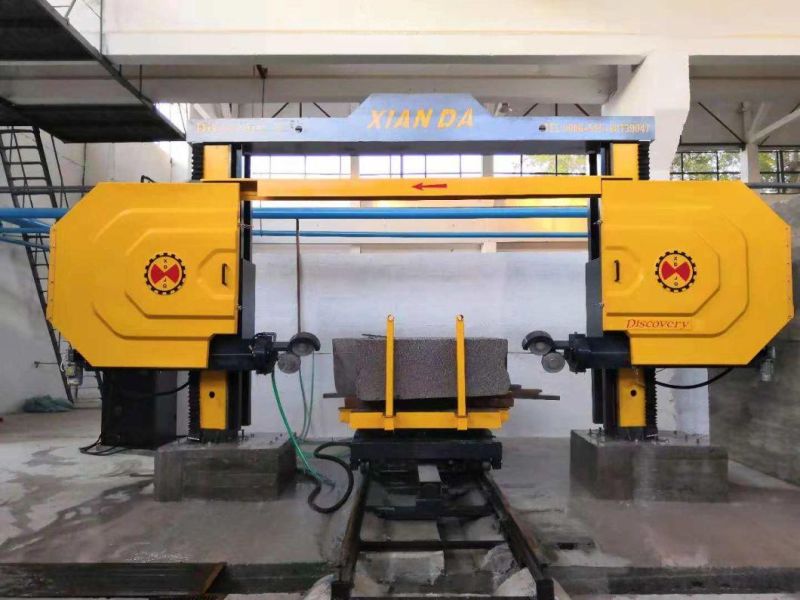

Discovery 5 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape. Discovery 5 Marble Stone Wire saw cutting machine. Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes. 1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision. 2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts. 3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle. 4. Worktable is running by lead screw and railway. 5. There has automatic alarm if wire broken. 6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension. Technical Parameter Parameter Unit Discovery 5 Max processing size mm 2600*2600*1500 Dimension of worktable mm 1400*2000 Wire speed  m/s 0-40 Main motor kw 11 Outline dimension mm 8000*6500*4100 Gross weight kg 7500 Water consumption m3/h 4 Xianda machinery Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc. With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines. Exhibition Our Service * Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. * After-sales service 24 hour on line.  If you have any problem,just conact our sales department,customer service department,etc at any time. Key words: stone machine, diamond wire saw, stone cutting machine

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
