• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

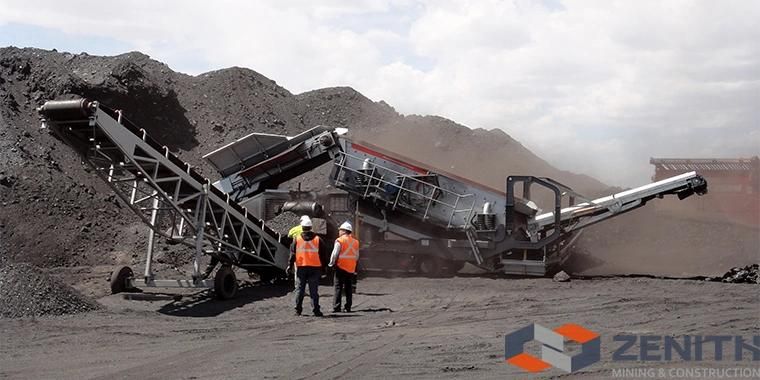

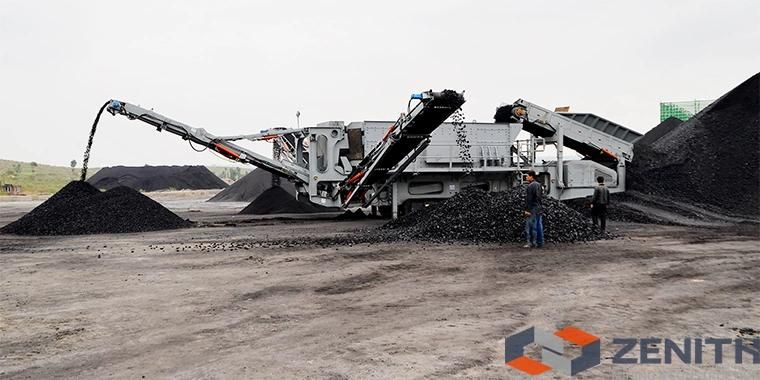

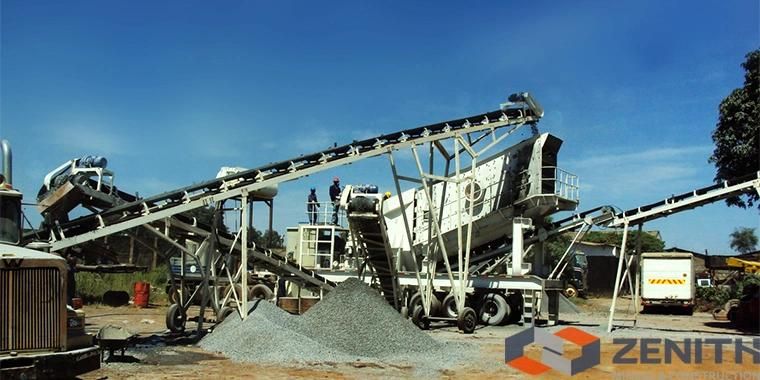

Complete Stone Crushing Plant, Stone Processing Machine, Stone Processing Line

Complete Stone Crushing Plant, Stone Processing Machine, Stone Processing Line includes Hopper, Vibrating Feeder, Jaw Crusher, Semi-trailer Chassis, and other supporting parts. The material is fed into the hopper by the loader. Vibrating Feeder can prescreen the material during its working process, and feed the bigger material into Jaw Crusher for primary crushing process. Then crushed material will be carried out by the belt conveyor.

Stone Processing Machine provide the new field of business opportunities for crushing and milling in the mining industry, it's newly developed ore-crushing equipment of zenith Company. The mobile jaw crushing plant is developed according to novel series stone crushing equipment's design idea, it's extremely convenient and efficient.

We have authoritative technical team in mobile crusher plants. In addition, we can provide different types of Jaw Crusher and Vibrating Screening and other optional equipments according to customers' requirement completely and provide the best mobile crushing services for you




Complete Stone Crushing Plant, Stone Processing Machine, Stone Processing Line Advantage

1. Quick road transportation.
2. Lower transportation cost.
3. Integrate equipment into one.
4. High flexibility and efficiency.
5. Easy to adjust and to collocate.
6. Reliable performance and convenient maintenance


Complete Stone Crushing Plant, Stone Processing Machine, Stone Processing Line parameters:


Parameter model	Transport length (mm)	Transport height (mm)	Transport width (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
YF938J69	11200	3900	2450	4700	2900	2600	42
YF1142J710	13000	4400	2450	5100	3100	2600	55
YF1349J912	15000	4800	3000	5600	3300	2800	72

Configuration

Parameter model	Feeder spec	Jaw crusher	Belt conveyor	Extended belt conveyor	Generator	Capacity (t/h)	Power (kw)
YF938J69	GZD-960X3800	PE600X900	B650X7M	Optional	Optional	70-150	91.5
YF1142J710	GZD1100X4200	PE750X1060	B800X9M	Optional	Optional	90-200	134
YF1349J912	GZD-1300X4900	PE900X1200	B1000X11M	Optional	Optional	150-300	146
