• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Year
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Year Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification CE, ISO Trademark Zenith Origin Shanghai Zenith HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

2019 Hot sale high performance stone primary crusher

Stone Primary Crusher introduction:

The Stone Primary Crusher is widely used crushing equipment. It has two types, single-toggle type and double-toggle type.

Generally, the single-toggle Stone Primary Crusher is applicable for coarse/medium crushing ores and rocks with compression strength under 300Mpa. The three models of jaw crushers can also crush ores and rocks of different hardness. The PEW single-toggle jaw crusher used for fine crushing is applicable for ores and rocks with medium hardness and below, and the double-toggle jaw crusher can be used to crush ores and rocks with various hardness and high corrosion.



Fetures and Advantages of Stone Primary Crusher



The Stone Primary Crusher has advantages of simple structure, reliable working, easy operation, convenient maintenance and low cost for equipment and production. It is widely used in metallurgy, mining, building materials, chemical industry and cement for coarse and medium crushing operations.

Stone Primary Crusher Application:

Stone Primary Crusher is widely used in various materials processing of mining &construction industries, such as it is suit for crushing granite, marble, basalt, limestone, quartz, cobble, iron ore, copper ore, and some other mineral &rocks.

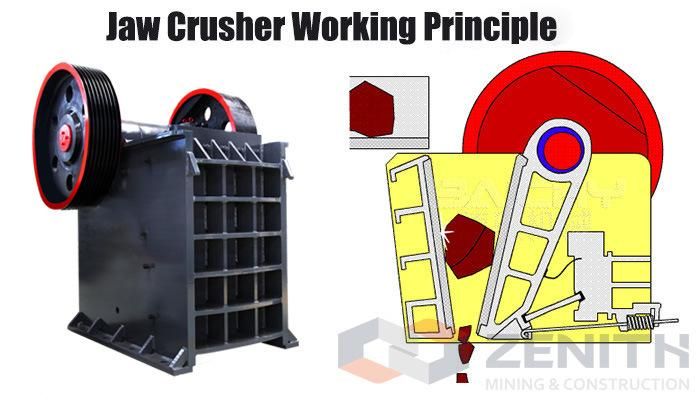

Working principle of Stone Primary Crusher

The Stone Primary Crusher is mainly composed of frame body, movable jaw part, toggle plates, locking devices with pull-rod spring and driving devices. The movable jaw is driven by motors for complex pendulum through triangle belt. Once the ores are poured into the crushing cavity crush, they will be extruded, split and bended due to the action of the swing jaw. The crushed ores will be discharged out at the moment when the swing jaw leaves the fixed jaw plate.


Stone Primary Crusher technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	150-350	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	8-185	Y355L1-8/185	4140×2660×3560
