• Model NO.：SDNFX-1800
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Cutting Diamension：Φ400-600mm
• Max Lifting Travel of Cutting Frame：850mm
• Dimension of Worktable：3500*1800mm
• Main Motor：18.5kw
• Gross Motor：23.5kw
• Outline Dimension：6000*3600*3100mm
• Water Consumption：6m3,H
• Gross Weight：6000kg
• Use for：Cutting Profiling Lines,Column,Column Slab
• Transport Package：Load in a 20 Feet Container
• Specification：6000*3600*2500mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. SDNFX-1800 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Cutting Diamension Φ400-600mm Max Lifting Travel of Cutting Frame 850mm Dimension of Worktable 3500*1800mm Main Motor 18.5kw Gross Motor 23.5kw Outline Dimension 6000*3600*3100mm Water Consumption 6m3/H Gross Weight 6000kg Use for Cutting Profiling Lines,Column,Column Slab Transport Package Load in a 20 Feet Container Specification 6000*3600*2500mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

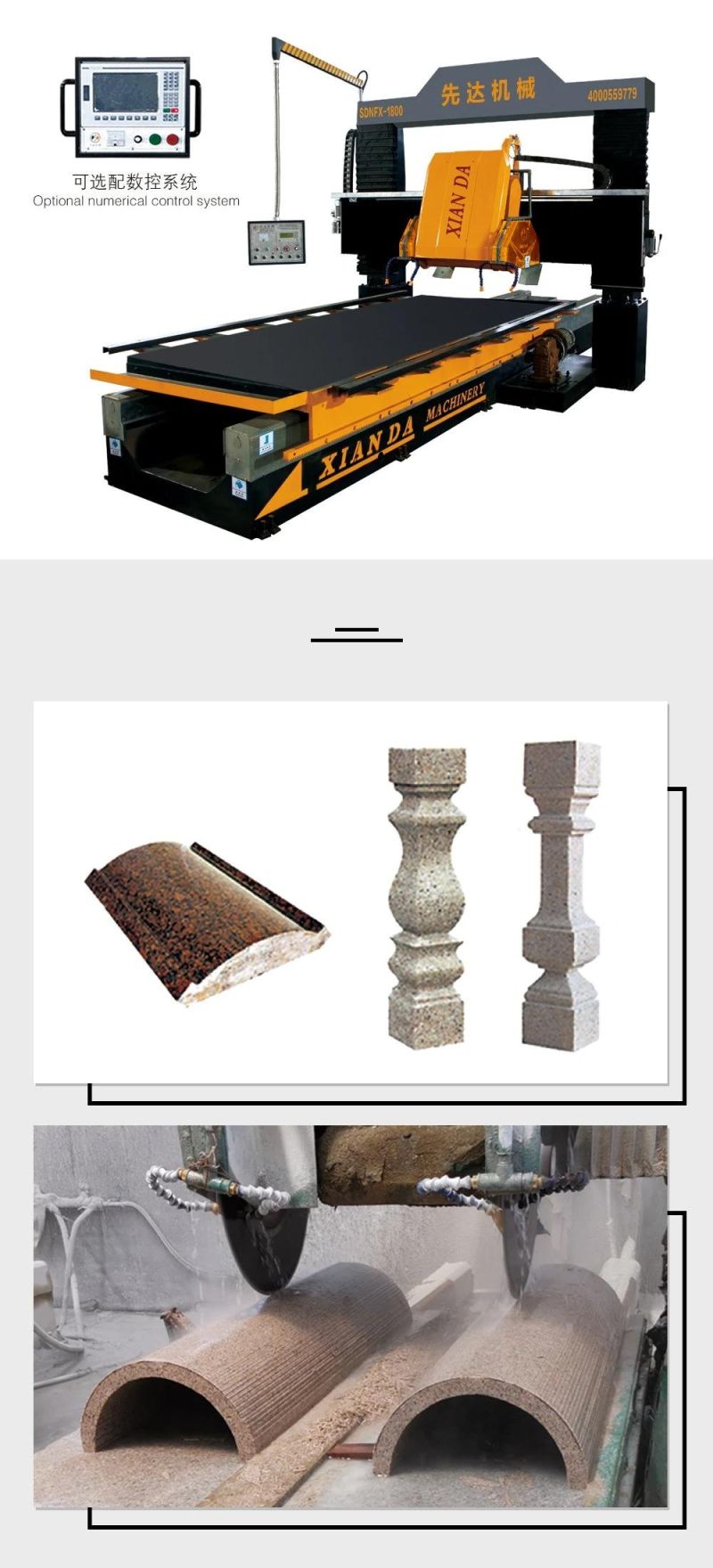

SCNFX-1800/DNFX-1800 adopts CNC or PLC system.It automatically profiling through diamond circular saws to cut stone with program,uses inverter to control up-down rising and left-right feeding ,adjusts the speed according to the stone material.This machine adopts CNC system, higher degree of automation, higher precision cutting; using double-blades designing,with higher cutting efficiency,higher stability, easy-operation to suit for lines,arc-shaped lines,Roman columns etc.
Remark: If choosing rotating worktable,the processing of arc-shaped lines can be done.

Technical Parameter


Parameter	Unit	SDNFX-1800	SCNFX-1800
Blade diameter	mm	300-600	300-600
Max lifting travel of cutting frame	mm	1000	1000
Worktable dimension	mm	3500*1800	3500*1800
Main motor	kw	15	15
Gross motor	kw	20	20
Outline dimension	mm	6000*3600*3300	6000*3600*3300
Gross weight	kg	7000	7000
Water consumption	m3/h	6	6

 Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.




Exhibition

Our Service

We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.


32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.  FAQ
