Overseas Service After Sales Solid Column Pillar Stone Machine /Long Solid Column Pillar Cut& Cutting Machine / Pillar Stone Machine/Stone Processing Machine
Fujian Xianda Machinery Co., Ltd.- Type：Column Pillar Cutting Machine
- Usage：Granite, Marble
- Application：Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：SCM-300,600-2
- Control：PLC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
- Diameter of Blade：Φ600mm
- Max Processing Diameter：Φ300mm,2PCS;Φ600mm,1PCS
- Max Cutting Length：200-3500mm
- Main Motor：11kw
- Gross Motor：17.5kw
- Outline Dimension：5500*1800*3800mm
- Water Consumption：4m3,H
- Gross Weight：4500kg
- Color：White,Yellow and Blue
- Use for：Processing Roman Pillar , Column
- Transport Package：Load in a 20 Feet Container
- Specification：5500*1800*3800mm
- Trademark：Xianda
- Origin：Jinjiang, Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. SCM-300/600-2 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Diameter of Blade Φ600mm Max Processing Diameter Φ300mm/2PCS;Φ600mm/1PCS Max Cutting Length 200-3500mm Main Motor 11kw Gross Motor 17.5kw Outline Dimension 5500*1800*3800mm Water Consumption 4m3/H Gross Weight 4500kg Color White,Yellow and Blue Use for Processing Roman Pillar / Column Transport Package Load in a 20 Feet Container Specification 5500*1800*3800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description
Product Description

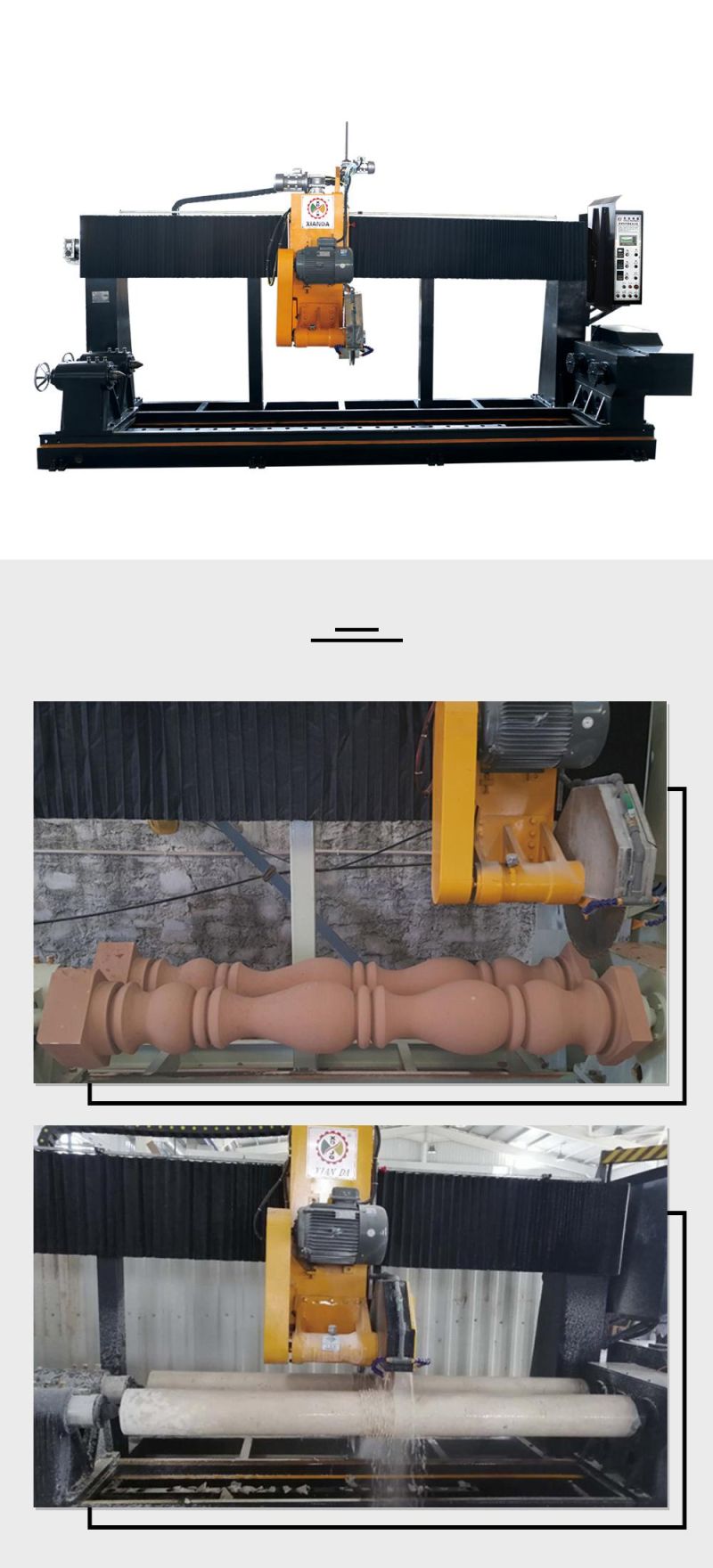

SCM-300/600-2 Solid Column Cutting Machine / Pillar Stone Machine adopt gantry machine design, microprocessor control and fiber optic probe. It can process all kind of solid stone of revolution,such as baluster, pellet, stylobate,cap and column and so on. It have already overcame the defects of manual process. This machine is automatic, after adjust the size of all direction, one worker can operate many machines. Processing length can be adjusted according to customer demand.
Technical Parameter
| Parameter | Unit | SCM-300/600-2 |
| Blade diameter | mm | φ600 |
| Max processing diameter | mm | φ300/2pcs φ600/1pcs |
| Cutting length | mm | 200-3500 |
| Main motor | kw | 11 |
| Gross motor | kw | 17.5 |
| Outline dimension | mm | 5500*1800*3800 |
| Gross weight | kg | 4500 |
| Water consumption | m³/h | 4 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Our Service
We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
Top 5 stone cutting machine manufacturer with ISO&CE certificate.
Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.
We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.
After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Does it can accept OEM?
A: Yes,and some of the part can change as customer require.
A: Yes,that we are the stone machinery factory for over 30 years.
