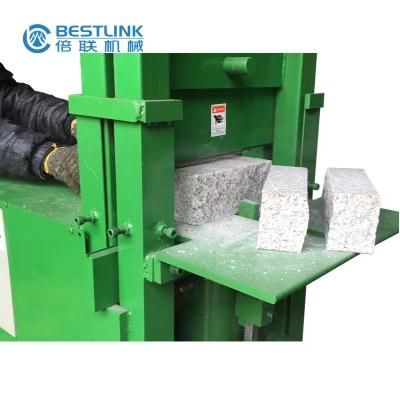

Natural Face Stone Splitting Processing Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Hydraulic Cutting Machine
- Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Semi-automatic

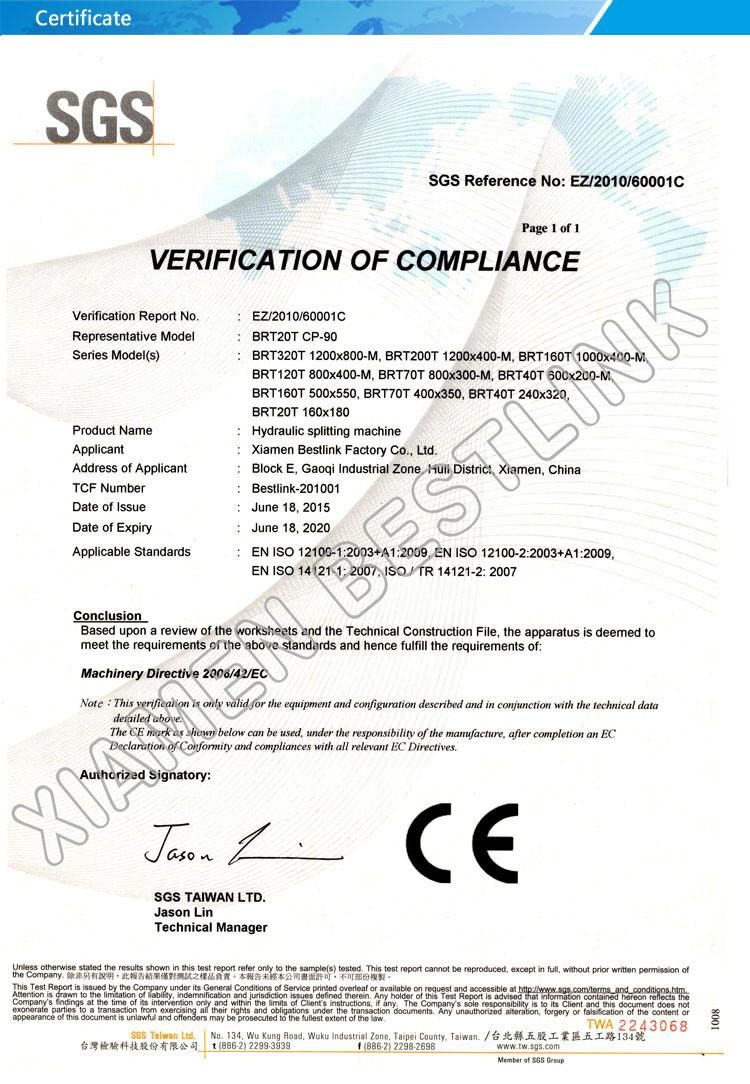

- Certification：CE
Base Info
- Model NO.：BRT20T
- Color：Green
- Function：New
- Drive：Hydraulic
- Shape：Bridge Type , Closed Type
- Transport Package：Pallet
- Specification：CE
- Trademark：Bestlink
- Origin：China
- HS Code：84741090
- Production Capacity：10000sets Per Year
Description

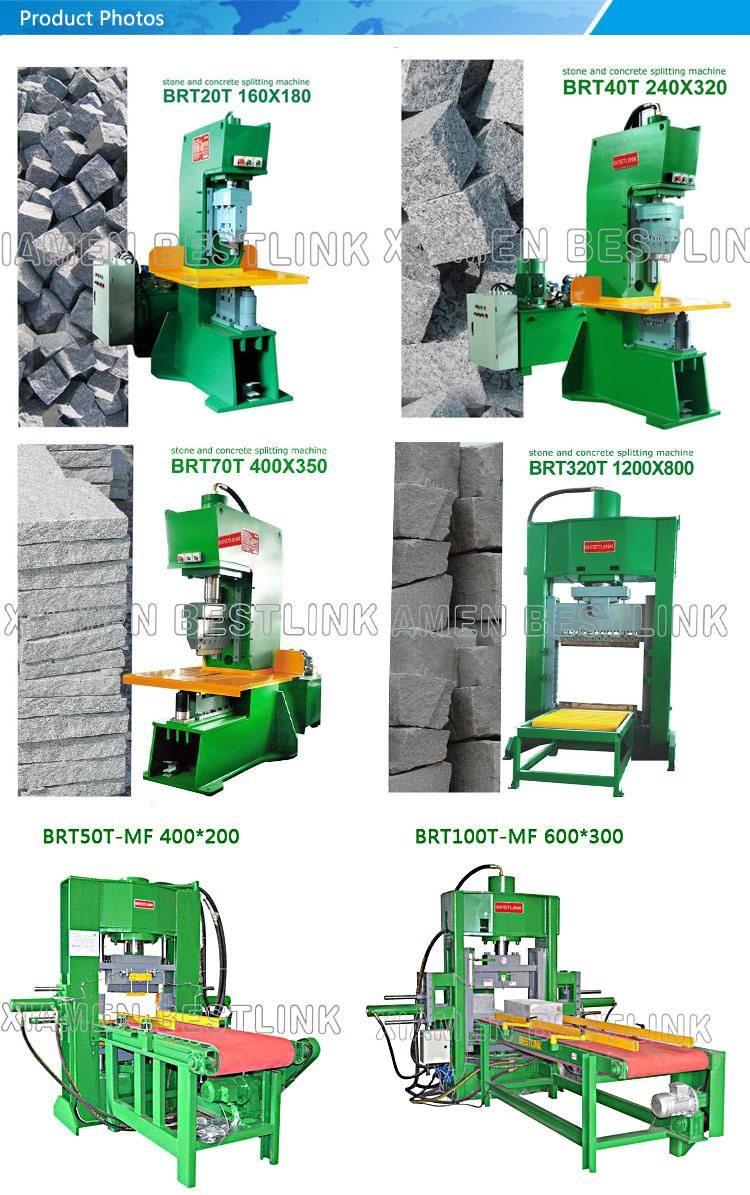

Bridge Type / Closed Type C-Front / Open Type Model No. BRT320T-1200*800-M BRT200T-1200*400-M BRT160T-1000*400-M BRT120T-1000*300-M BRT70T-800*300-M BRT40T-600*200-M BRT160T-500*550 BRT70T-400*350 BRT40T-240*320 BRT20T-160*180 splitting force T 320 200 160 120 70 40 160 70 40 20 max.splitting width mm 1200 1200 1000 1000 800 600 500 400 240 160 max.splitting height mm 800 400 400 300 300 200 550 350 320 180 Single blade size mm 194*50*40 194*50*40 194*50*40 194*50*40 160*40*25 160*40*25 194*50*40 194*50*40 160*40*25 160*40*25 Blade QTY. pcs 48 48 40 40 40 32 20 16 12 8 Adaptation of upper/lower blade mm 36*20 30*15 30*15 20*10 20*10 20*10 30*15 20*10 15*10 10*5 Power supply KW 22 15 15 15 11 7.5 15 11 7.5 7.5 main oil cylinder data mm Φ400/Φ280-800 Φ320/Φ200-400 Φ280/Φ200-400 Φ280/Φ200-300 Φ220/Φ140-300 Φ180/Φ120-200 Φ280/Φ200-550 Φ220/Φ140-350 Φ160/Φ110-320 Φ120/Φ80-180 Bench height mm 900 900 900 900 900 900 900 900 900 900 machine overall size(L*W*H) mm 2250*1500*3515 2010*1240*2855 1810*1240*2855 1780*1140*2575 1570*1140*2490 1390*1140*2300 1970*1200*3300mm 1500*1200*2520 1260*1000*2300 1145*1000*2030 machine weight kg 7000 6000 4800 4000 3000 2200 7000 3000 2200 1800 Hydraulic unit size mm 1280*1000*1475 1280*1000*1475 1280*1000*1345 1280*1000*1345 960*650*1220 800*650*1100 1280*1000*1345 960*650*1220 800*650*1100 800*650*1100 Hydraulic unit weight kg 600 600 550 550 400 310 550 400 310 310

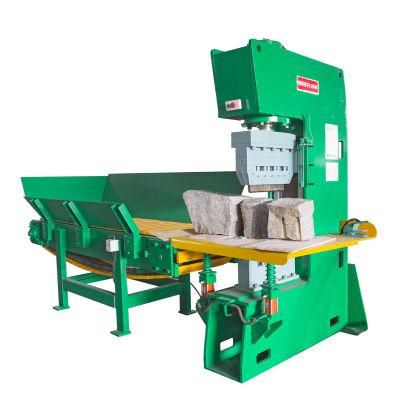

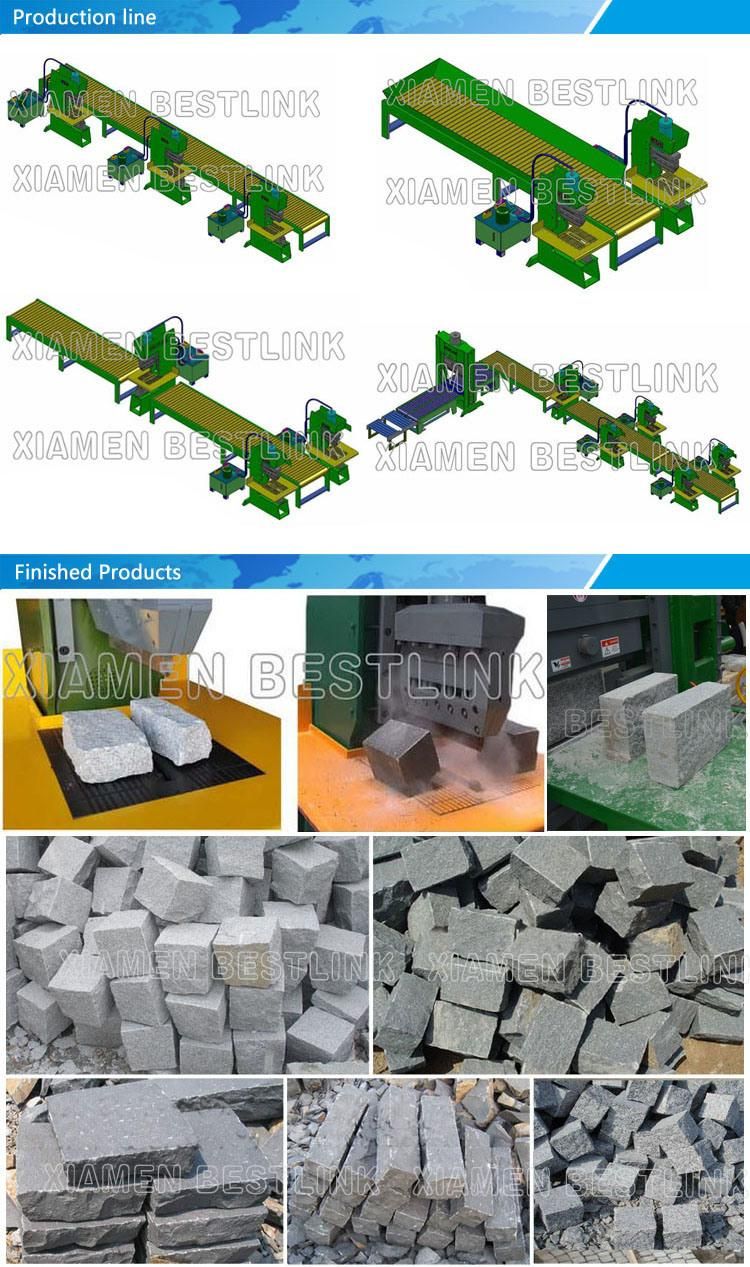

Conveyer Systems can be situated at the front or back of the splitting machine to facilitate the movement of irregular and heavy stones. Thanks to this application it's possible to have a continued input of semi manufactured products, which will give an increase of work productivity.
