• Model NO.：YS series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. YS series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

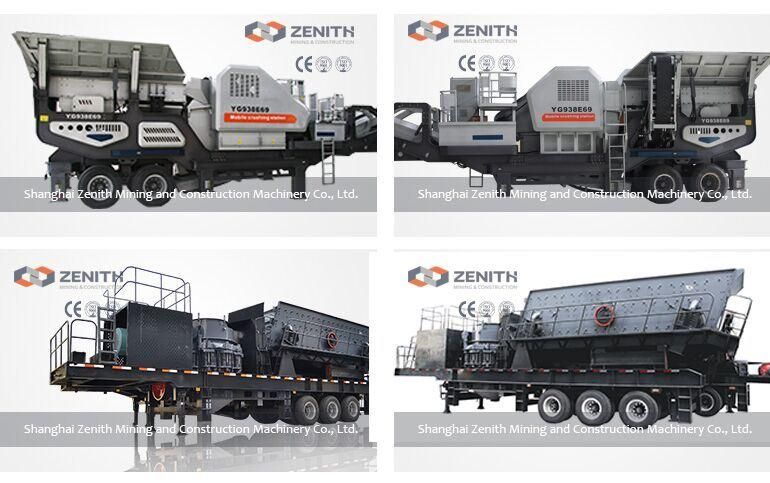

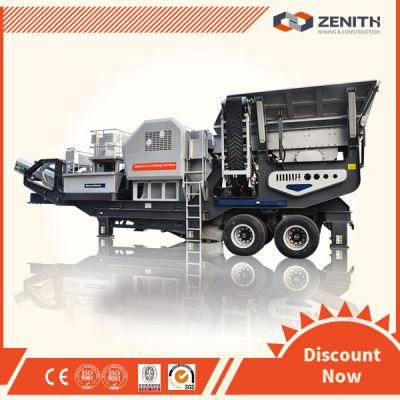

Famous brand high quality small stone crusher mobile

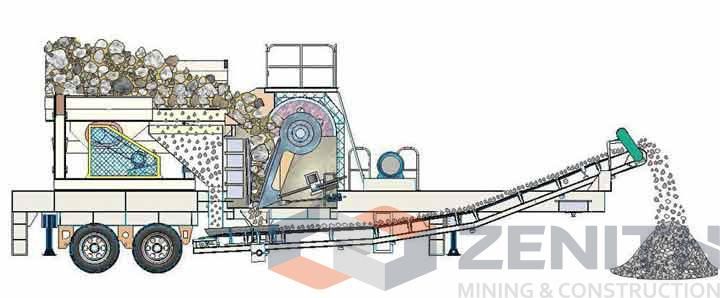

small stone crusher mobile introduction:

small stone crusher mobile provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

small stone crusher mobile features:

1. Hydraulic-drive feeding plate is convenient and reliable.
2. Easy to control by equipping with high-tech LCD touch screen and PLC control system.
3. Feeder grates pre-screen scrap and excurrent material can be conveyed by side belt or main belt either.
4. Belt conveyors and Magnetic iron separator are easy to use.
5. Employing fully rigid boat structure, the chassis features high strength, low contact pressure, good passing ability(easy transpotation) and good adaptability to hilly and marsh areas.
6. High pulling forque travel motor with mature techniques offers strong driving force and high reliability. The use of all-walt variable hydraulic technique in the travel system ensures high performance, reliability and utilization of the motor.

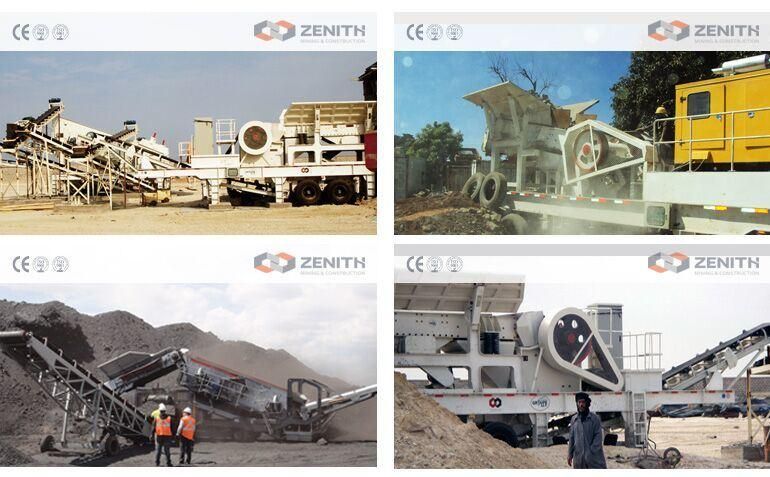

small stone crusher mobile Application:

small stone crusher mobile can be used in crushing various stone and ore,such as iron ore,copper ore,gold ore,Marble,pebbles,bluestone crushing plant.Also it can be used in building waste and road material crushing,bricks,concrete,

small stone crusher mobile technical data:


Parameter model	Transport length (mm)	Transport width (mm)	Transport height (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
Y3S1548F1010	11000	2500	4000	6000	2800	4000	42
Y3S1848F1210	12200	2800	4200	6500	3000	4000	46
Y3S1860F1214	12500	2800	4500	6500	3000	4200	51
Y3S2160F1315	13500	3000	4800	6800	3200	4200	57

Configuration:

Parameter model	Screen model	Impact crusher model	Belt conveyor model	capacity (t/h)	Power(kw)
Y3S1548F1010	3YK1548	PF1010	B500X7M	50-250	70-90
Y3S1848F1210	3YK1848	PF1210	B650X7M	70-300	128.5-150.5
Y3S1860F1214	3YK1860	PF1214	B650X8M	90-400	154-190
Y3S2160F1315	3YK2160	PF1315	B800X8M	120-450	210-297
