• Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/Year

Product Description

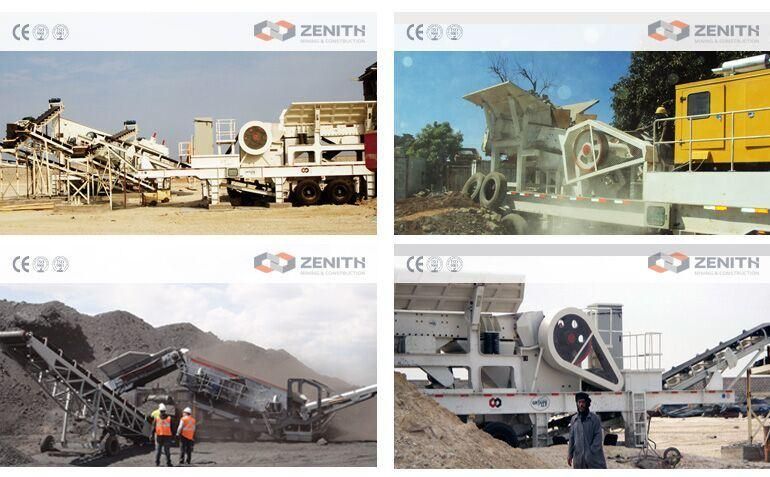

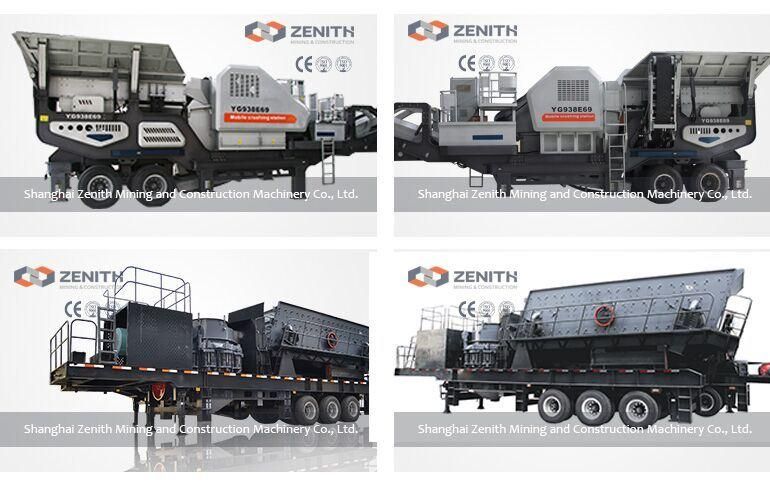

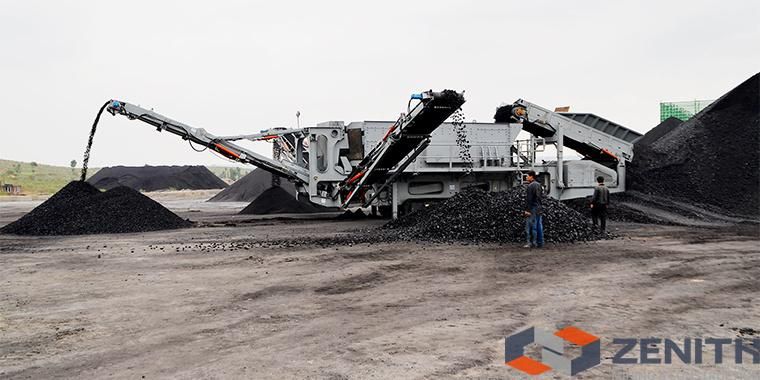

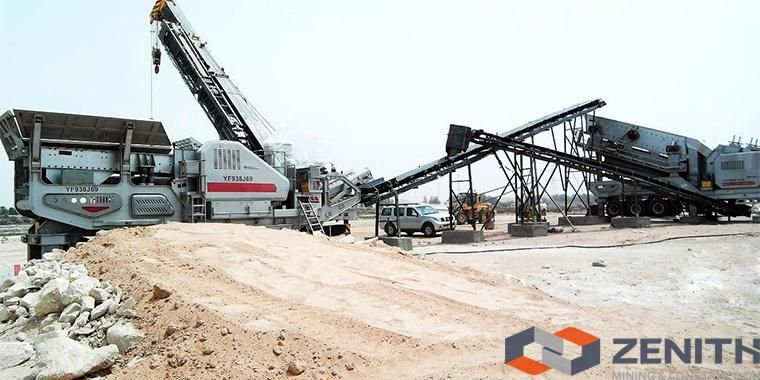

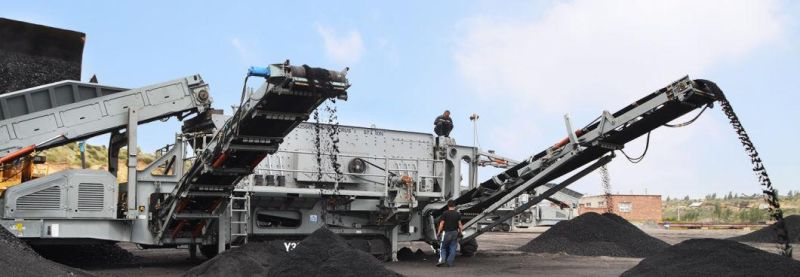

china wholesale High Efficiency mobile cone crusher and screening



mobile cone crusher and screening introduction :

mobile cone crusher and screening provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. Mobile Crusher Plant, Mobile Crushing Machine concept is fully adaptable to all mobile crushing needs, it set up a new range of business opportunities for coarse and fine crushing. It can eliminate the obstacles of the crushing places and circumstances, and offer the high efficient and low cost project plants for the client. To the client, it is the best choice.

mobile cone crusher and screening Features

1. Strong mobility;
2. Integration of a complete set of units
3. Lowest transportation cost;
4. Flexible combination, better adaptability;
5. Working directly and efficiently;
6. Adopt the form of overall installation, and eliminate the the form of segregation one, greatly reduce the consumption of materials and time.

mobile cone crusher and screening Application

mobile cone crusher and screening are mainly used in the fields of metallurgy, chemicals, building materials and hydroelectricity and other frequently moving industries, especially in the fields of eaxpressway, railway, hydroelectric projects. The mobile crusher are engaged in creating more business opportunity and greatly reducing the cost for our customers.

mobile cone crusher and screening parameters:


Parameter model	Transport length (mm)	Transport height (mm)	Transport width (mm)	Max. height (mm)	Max. width (mm)	Belt conveyor height (mm)	Total weight (ton)
YF938J69	11200	3900	2450	4700	2900	2600	42
YF1142J710	13000	4400	2450	5100	3100	2600	55
YF1349J912	15000	4800	3000	5600	3300	2800	72

Configuration

Parameter model	Feeder spec	Jaw crusher	Belt conveyor	Extended belt conveyor	Generator	Capacity (t/h)	Power (kw)
YF938J69	GZD-960X3800	PE600X900	B650X7M	Optional	Optional	70-150	91.5
YF1142J710	GZD1100X4200	PE750X1060	B800X9M	Optional	Optional	90-200	134
YF1349J912	GZD-1300X4900	PE900X1200	B1000X11M	Optional	Optional	150-300	146
