• Model NO.：XZQQ625
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Blade Size：400-625 mm
• Stone Cutting Length：3200mm
• Stone Cutting Width：2000mm
• Stone Cutting Thick：170mm
• Table Tilting Vertically：0-85 Degree Easy for Materials Loading
• Table Rotation Horizontally：0-360 Degree Stopped Any Positon
• Blade Tilting：0-45 Degree for Mitered Cuts
• Power of Spindle Motor：15 Kw 20HP
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Plastic
• Specification：Dimention (L*W*H): 6*5*2.6m
• Trademark：AGA
• Origin：China
• HS Code：84641090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Blade Size 400-625 mm Stone Cutting Length 3200mm Stone Cutting Width 2000mm Stone Cutting Thick 170mm Table Tilting Vertically 0-85 Degree Easy for Materials Loading Table Rotation Horizontally 0-360 Degree Stopped Any Positon Blade Tilting 0-45 Degree for Mitered Cuts Power of Spindle Motor 15 Kw 20HP Repeat Cutting 99 Repeat Cutting by Program Transport Package Plastic Specification Dimention (L*W*H): 6*5*2.6m Trademark AGA Origin China HS Code 84641090 Production Capacity 200sets/Month

Product Description

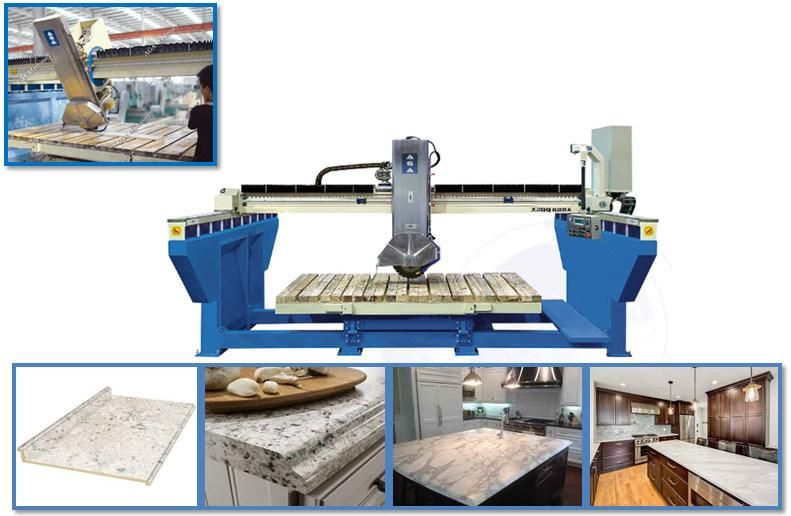

Premium CNC Machine Monoblock Stone Bridge Saw Cutting Granite Marble Quartz Countertops
Model: XZQQ625
The whole bridge saw is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz stones.
Bridge saw XZQQ625 is the best one made with full functions, including mono frame, pendant control panel, touch screen, wireless remote, table rotation and tilting, head tilting, hydraulic pump, etc.
If you need a new machine with good price, this is exactly what you need.
Advanced CNC Machine Bridge Saw Possibilities:
1) Bridge saw is made of very strong cast iron for stable running and stainless steel for protection.What you see, what you get. It is monoblock structure frame, easy for loading, transportation and installation.

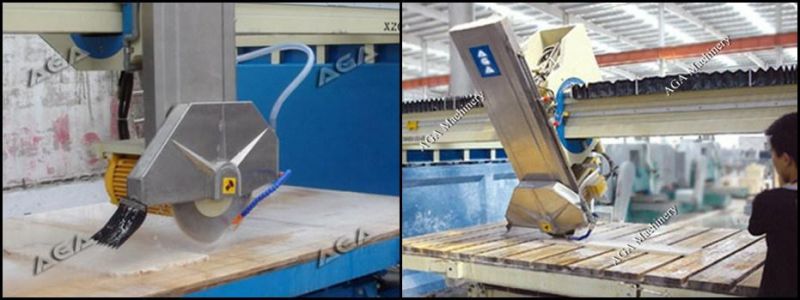

2) Bridge saw head provides automatic power tilting of 0°-45° for miter cuts, very excellent in cutting kitchen countertops.

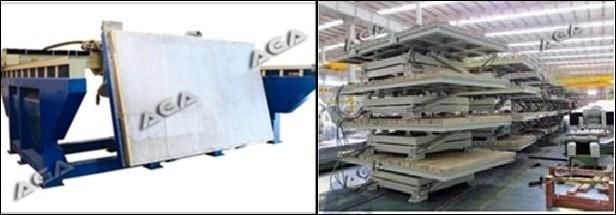

3) Worktable can rotate 0-360° stopping at any position and tilt 0-85°, easy for cutting direction changing and slab loading.

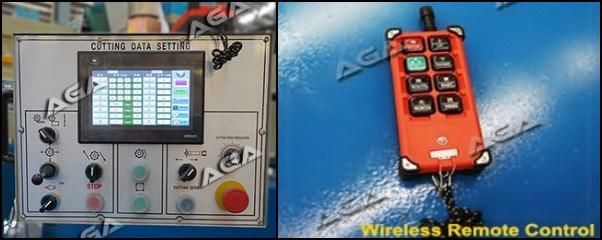

4) This mono block bridge saw machine is computer control and with color Display Touch Screen. Touch-sensitive operating system, friendly human-machine interface design. Besides, the whole saw can be controled by wireless remote.

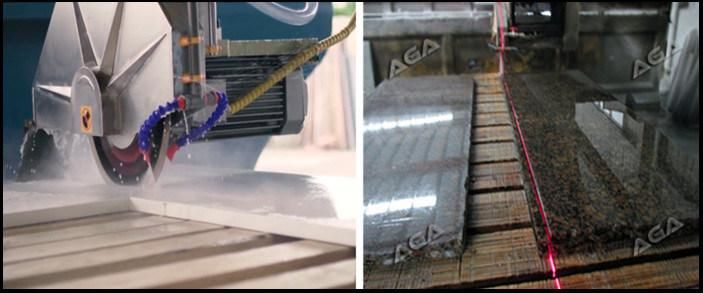

5) Bridge saw togethering with ultra-high precision rotary encoder positioning and infrared device, making every slab cutting beautifully.
6) Operating Language in English and Input Sizes unit in Inch or mm.
7) Robust monoblock granite marble bridge saw hot sales in U.S.A, Canada, Australia, South Africa, Eurpoe, Mexcio, Egypt, India, etc. Customers paid and they got the saws and super happy. Believe this bridge saw will also turn you much more in your long term stone business.

Advanced CNC Machine Stone Bridge Saw Specification:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Advanced CNC Machine Stone Bridge Saw advantages:
The design of the bridge saw provides the user safe and easy exploitation, high performance and productivity.
Y axis side walking group and X axis cutting movement group, control racks, pinions, linear rails and ball-bearings are working in oil pool. All moving parts are protected from water and dust by covering.
All comandulli bridge saws are manufactured not only to perform consistently at the highest level for many years, but also to enable longevity of the machine.
The machine structure goes through a metallization process, and is finished with a special cataphoresis painting treatment allowing both a long rust free life, and great looks.


Maxmize your granite, mabrle and quartz production with the most robust cnc machine bridge saw





CNC Machine Bridge Saw Hot Sales in Global Market:
This bridge saw is made with the best quality and good price, we sent it quite a lot to the granite marble fabricators throughout the world, the customers paid and they got the machines and super happy.

Key words:
Stone bridge saw, granite bridge saw, stone cutting machine, bridge cutting machine, automatic bridge saw, china bridge saw, granite saw, stone saw, granite cutting machine, granite sawing machine, bridge sawing machine, slab cutting machine, cnc machine, cnc cutting machine, stone cnc machine, tiles cutter, etc.


FAQs:
1) Payment:
By wire transfer. T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.

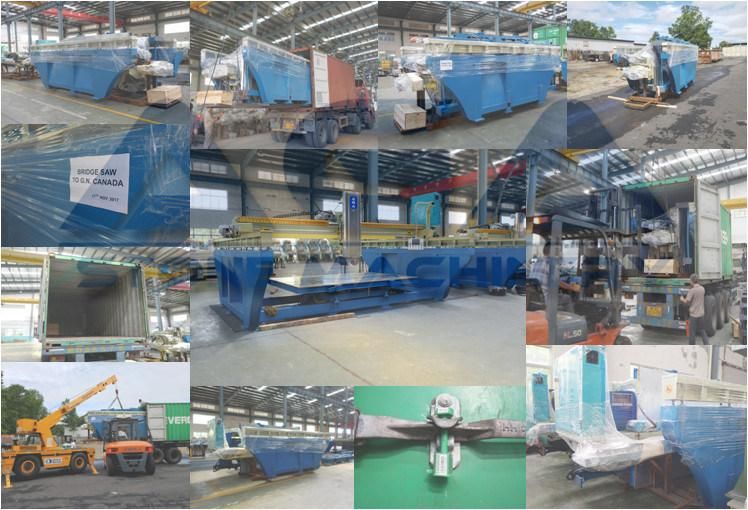

3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Guarantee:
Warranty for one year.
24-hour technical support Internet or by Telephone, free instructions and Problem solving.


Why choose AGA Machinery?

You can depend on high quality service from AGA Machinery. We provide 24 hours on-line service. Whenever you have any questions please feel free to contact us, we're more than happy to serve you.
You will get much more benefits from AGA machines working in your factory. Robust machines with high efficiency, longer lifetime and stable performance makes you stand out of other fabricators.
What you see will be what you get and what you get will be much more what you paid!
