Stone Quarry Work Sandstone Quarry Cutting Machines
Quanzhou Keen Diamond Tool Co., Ltd.- Type:CNC Cutting Machine
- Usage:Red Brick, Jadestone, Concrete Curb, Granite, Marble
- Application:Machinery & Hardware, Construction, Stone Industry
- Source Voltage:380V
- Automation:Automatic
- Certification:CE
Base Info
- Model NO.:LQ-WSM-55KW
- Item:Sandstone Quarry Cutting Machine
- Main Motor Power:37-75 Kw
- Length of Wire:20-150 M
- Diameter of Driving Wheel:600-1000 mm
- Speed:0-40 M,S
- Length of Track:2 M,PC
- Use:Stone Quarrying
- Transport Package:Crate
- Specification:CE SGS
- Trademark:KEEN TOOL
- Origin:Quanzhou Fujian
- HS Code:84641090
- Production Capacity:30sets,Month
Description
Basic Info.
Model NO. LQ-WSM-55KW Item Sandstone Quarry Cutting Machine Main Motor Power 37-75 Kw Length of Wire 20-150 M Diameter of Driving Wheel 600-1000 mm Speed 0-40 M/S Length of Track 2 M/PC Use Stone Quarrying Transport Package Crate Specification CE SGS Trademark KEEN TOOL Origin Quanzhou Fujian HS Code 84641090 Production Capacity 30sets/MonthProduct Description

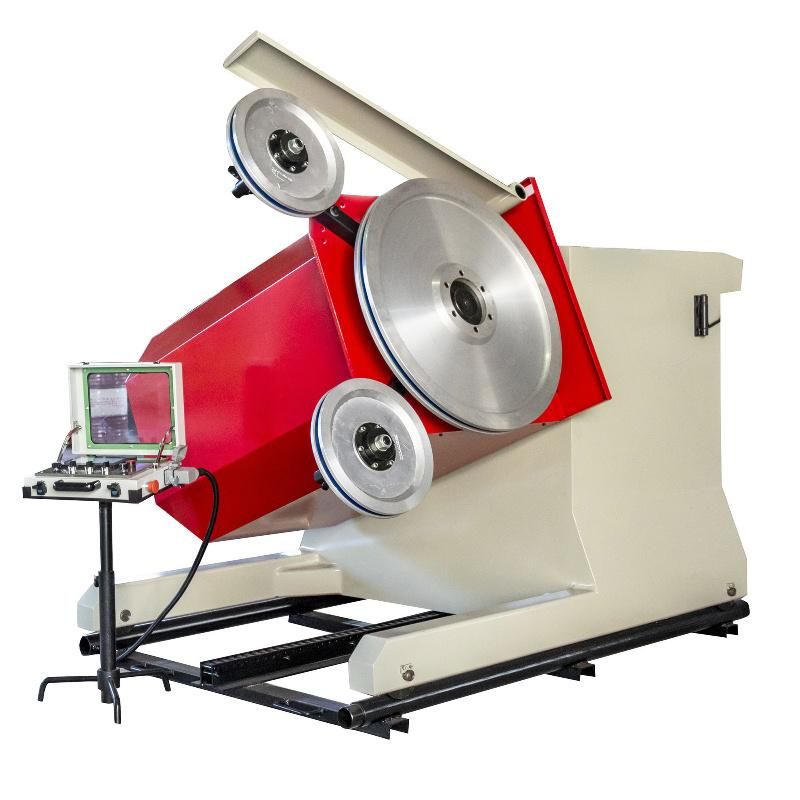

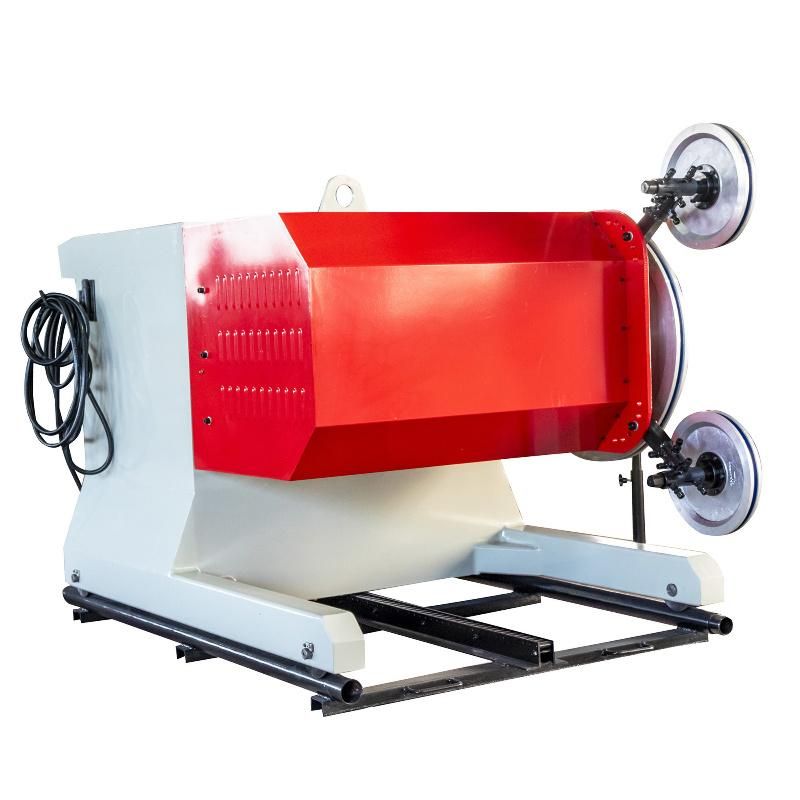

Description:Our "LQ" series sandstone quarry cutting machine with detailed features of:
1. Variable wire speed range from 0-40 M/S.
2. Automatic step-less tensioning system to keep the wire always in optimal working condition.
3. Motorized rotation of driving wheel holder from 0-3600 with limit protection for over movement.
4. Motorized lateral extension of flywheel shaft position +/- 350-400mm with limit protection for over movement.
5. Maximum travel speed on rail without loading 1.75 Meters/Min.
6. Safety alarm and stop system in case of unexpected wire break or any other faults.

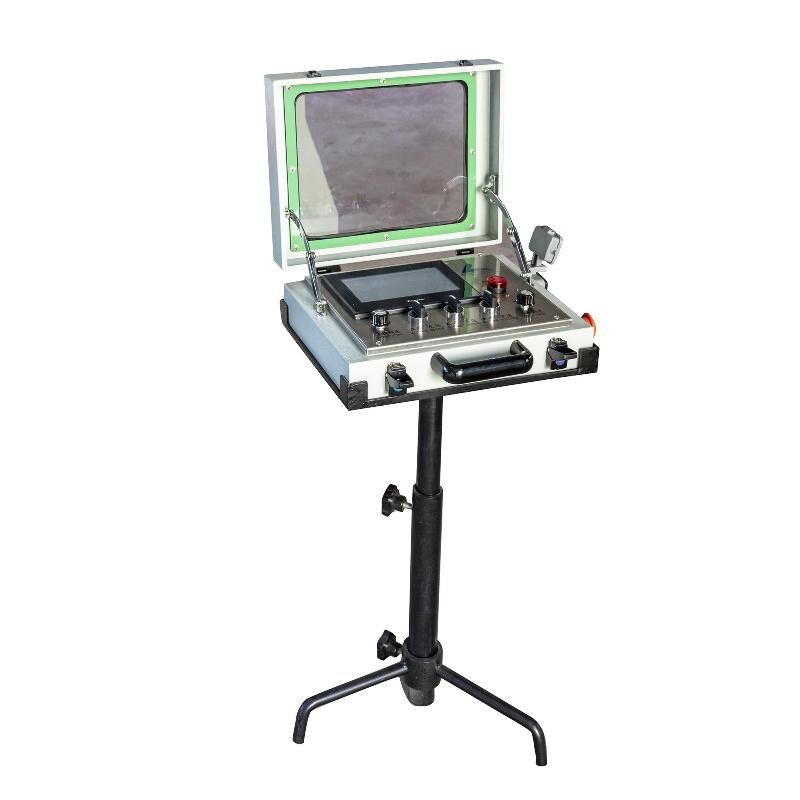

7. Distant control with very simple panel to operate the saw with better safety easier understanding to the operator.
8. Separate automatic reset selection switch to control the rotation and lateral extension movement; Which can be take off when it is no need.
9.20 second main motor start alarm sound and flash light to warn around people leave away.

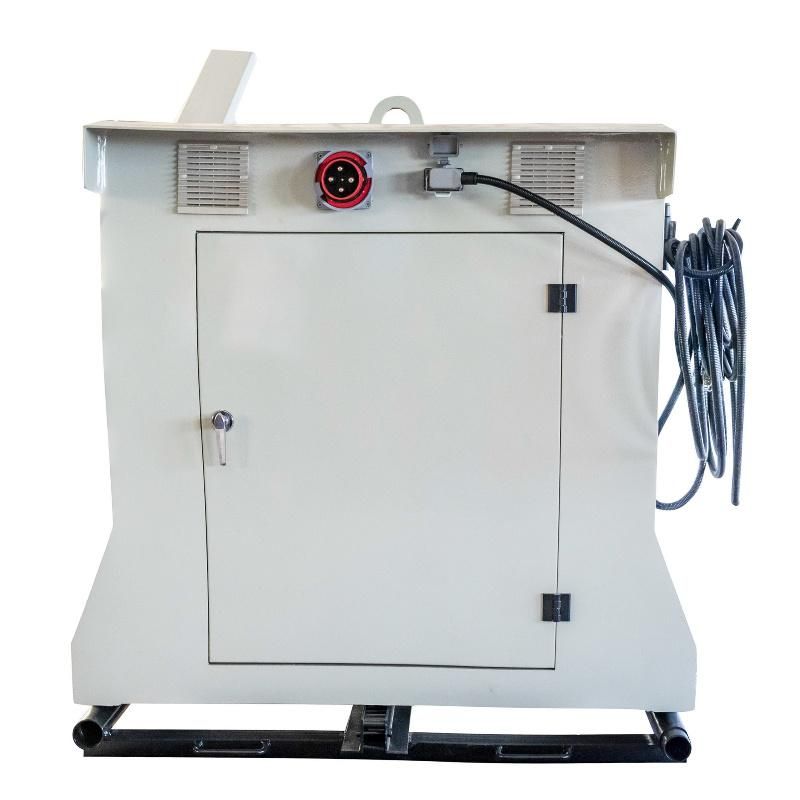

10. Big and strong steel frame with dimension of 2m length, 1.4m width and 1.3meter height which allows more inside space for easier maintenance and repairment.
11. General gross weight: 2500-3400kgs; General volume dimension: 4-7cubic meter (with packing)
Technical Data:
Model | Main motor | Length of Wire | Linear Speed | Diameter of drive wheel | Application |
LQ-WSM-37KW | 37 kw | 20-80 m | 0-40 m/s | 800-1000 mm | For Quarry |
LQ-WSM-45KW | 45 kw | 20-100 m | 0-40 m/s | 800-1000 mm | For Quarry |
LQ-WSM-55KW | 55 kw | 20-120 m | 0-40 m/s | 800-1000 mm | For Quarry |
LQ-WSM-75KW | 75 kw | 20-150 m | 0-40 m/s | 800-1000 mm | For Quarry |

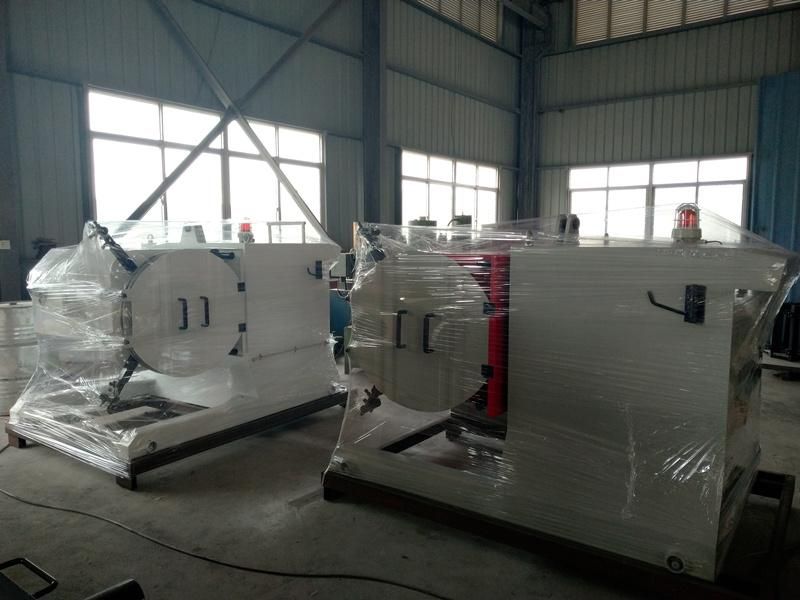

Package and Shipment:
