• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Cut Length：3200mm
• Max.Cut Width：2000mm
• Max.Cut Depth：17mm
• Transport Package：Plastic Packing
• Specification：6*5*3m
• Trademark：AGA Machinery
• Origin：Xiamen China
• HS Code：84641090
• Production Capacity：200sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Cut Length 3200mm Max.Cut Width 2000mm Max.Cut Depth 17mm Transport Package Plastic Packing Specification 6*5*3m Trademark AGA Machinery Origin Xiamen China HS Code 84641090 Production Capacity 200sets/Month

Product Description

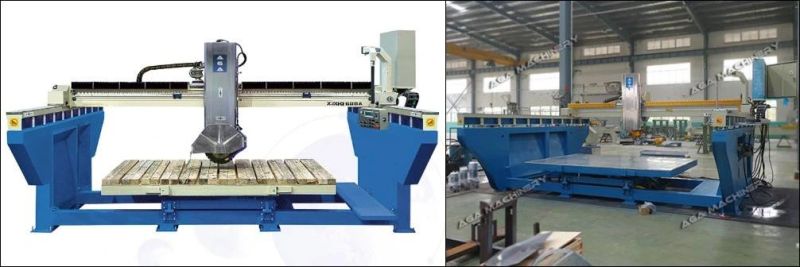

Premium CNC Machine Granite Bridge Saw Cutting Countertops Automatically
Machine model: XZQQ625A

China CNC Machine/Granite Bridge Saw/Stone Bridge Saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

China CNC Machine/Granite Bridge Saw/Stone Bridge Saw advantages:
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble and quartz.
1) Main structures of the machine are made of very strong cast iron and stainless steel for protection. Monoblock frame provides stable operation.
2) The tilting head provides 0°-45°for miter cut very excellent performance in cutting and fabricating countertops.
3)Bridge saw table rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
4) Table tilts 0°-85° for easy load of big slabs.
5) PLC control makes each operation easily. All functions are operated on the Display Control Panel.
6) Wireless remoter provides easy conrols of the bridge saw making its users very friendly.
7) Cutting guied by laser provides precision position in +/-0.2mm.
8) This machine is very simple and easy for you to download at the door, also it's very easy to install the machine.
9) Electric components and parts of good international brand adopted, reliability guaranteed.

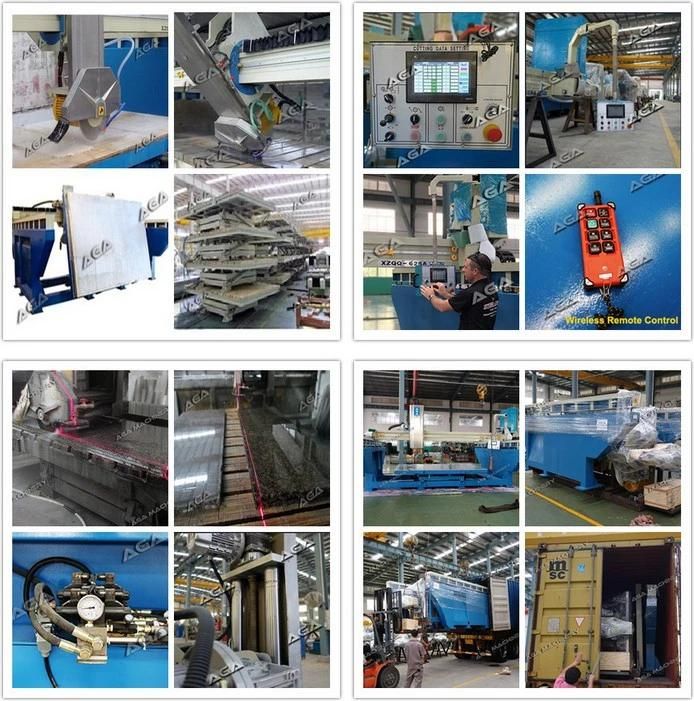

Robust bridge saws shipped out throughout the world:


Key words:
Stone bridge saw, stone bridge saw, granite bridge saw, stone saw, granite cutting machine, stone cutting machine, bridge cutting machine, bridge saw, cutting machine, auto bridge saw, cnc machine, cnc cutting machine, stone cnc machine, slab cutting machine, countertops machine, slab saw, stone saw, tiles cutting machine, etc.

FAQ:
1) Payment:
T/T in advance, we accept 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
