Special for Big Stone Sculpture, Figure, Buddha Statue CNC Carving Machine 5D 4D, with Vertical Ratory and Saw Milling Unit
Linyi Chaoda International CNC Technology Co., Ltd.- After-sales Service：Life Time
- Warranty：1 Year
- Function：Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Granite
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：JCS1520R
- Motor Power：High Power
- Engraving Head Speed Adjustability：Small Adjustable Range
- Certification：CE, ISO, BV, TUV
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Ice, Wood, Plastic, Foam, Light Metal
- Customized：Customized
- Applicable Material：Wood, Stone, Glass, Ice, Soft Metal, Plastic, Foam
- X,Y, Z Working Size：150mm(Diameter)*2000mm(Length) Can Be Customerized
- Pindle Power：11kw Water Cooling Spindle,12kw
- Operating System：4 Axis Ncstudio, 5 Axis Syntec
- Transport Package：Plywood Case
- Specification：working size 500mm(diameter)*2000mm(length)
- Trademark：CHAODA
- Origin：China
- HS Code：8465990000
- Production Capacity：800sets,Year

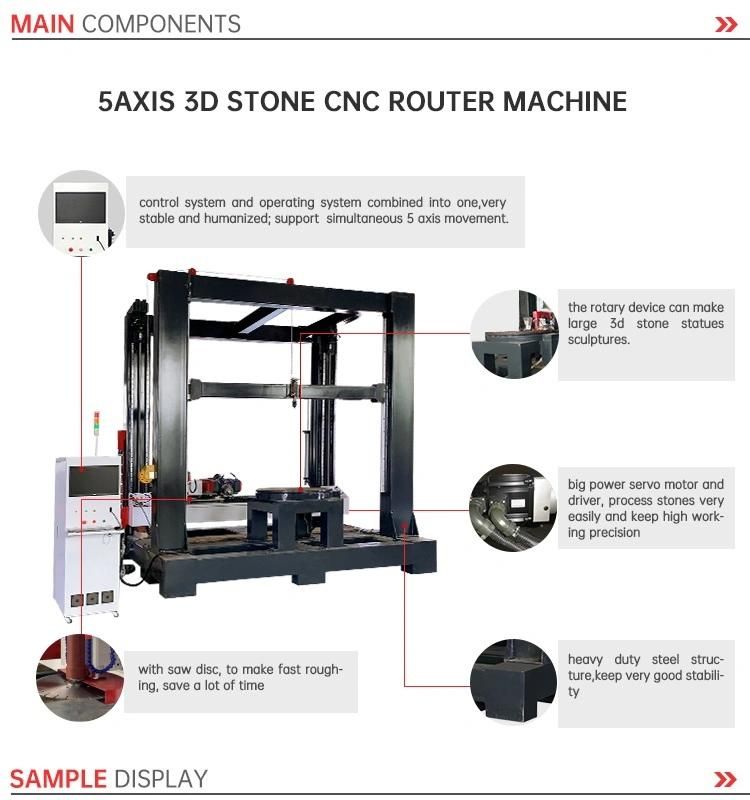

Description
Model No.
JCS1520R 5AXIS
Lathe bed
heavy duty steel structure
Table
No
Rotary Working size
1500mm diameter, 2000mm length
Spindle power
11kw water cooling spindle
Spindle rotating
12000rpm
Max.travelling speed
55m/min
Max.working speed
15m/min
Control system
5 Axis Syntec
Motor
Servo
Saw blade function
yes
Auto oil system
yes
Voltage
AC380v,3 phase,50Hz
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum block, Copper and so on.
It is mainly for stone scupture carving, stone statue engraving, stone column making etc.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
