• Model NO.：HLMJX-12C~24C
• Application：Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Quartz
• Type for Grinding Machine：Disc Grinding Machine
• Grinding Machine Type：Vibration Polishing Machine
• Grinding Method：Wet Grind
• Certification：SONCAP, ISO, CE
• Condition：New
• No. of Heads：12-24
• Spindle Motor Power：7.5*20+9*4kw
• Total Power：106-198kw
• Water Consumption：17-25m³,H
• Weight：15-21
• Working Width：400-1050,1250mm
• Working Thickness：12-50mm
• Transport Package：Standard
• Specification：7500*2150*2200-11500*2150*2200
• Trademark：Henglong
• Origin：Fujian, China
• HS Code：84642090
• Production Capacity：150 Sets,Year

Basic Info.

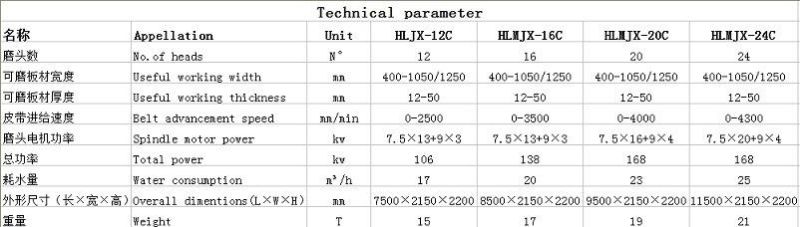

Model NO. HLMJX-12C~24C Application Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble, Quartz Type for Grinding Machine Disc Grinding Machine Grinding Machine Type Vibration Polishing Machine Grinding Method Wet Grind Certification SONCAP, ISO, CE Condition New No. of Heads 12-24 Spindle Motor Power 7.5*20+9*4kw Total Power 106-198kw Water Consumption 17-25m³/H Weight 15-21 Working Width 400-1050/1250mm Working Thickness 12-50mm Transport Package Standard Specification 7500*2150*2200-11500*2150*2200 Trademark Henglong Origin Fujian, China HS Code 84642090 Production Capacity 150 Sets/Year

Product Description

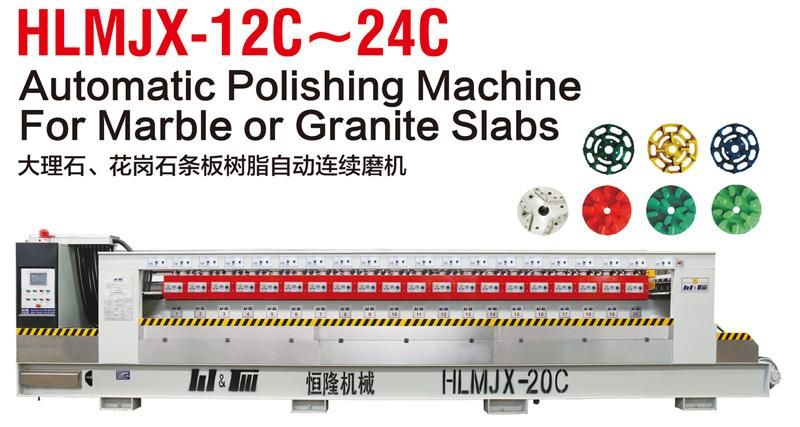

Henglong Automatic polishing machine for granite or marble slabs
HLMJx-12C~24C
 1. This machine adopts foreign advance design and automatic controlling systems,combining with the demand of domestic market. It is a new  intergration model og high-efficiency (about 500sqiuare meter/10h) low cost ,easy operation and durable.
2.It uses standard casting iron,steel,the brand electronic appliance,bearing and other components from Germany,Japan and Taiwan.

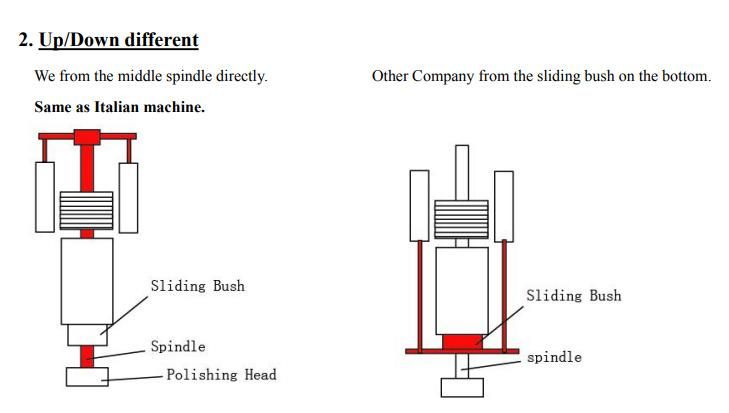

3. It adopts PLC  control system,  the operators can set the paremeter freely by the programmable controller with LCD screen. It equips with fault indicating system and alarming system abrasive consumption. The machines fits for continuous-grinding and polishing granite slabs. The conveying belt and the cross beam adopt frequency conversions for speed adjusting. Its processing width and working pressure of grinding heads can be adjusted freely (it can use resin polishing head and triangle resin abrasive material). The machine can identify the shape of the plates automatically, each disc(grinder)can resin and decend automatically by the identified shape while recording the output of grinding plate. The main spindles of the machine adopt the structure of sleeve-sliding.The whole machine is manufactured  according the standardized process and it's performance is up to the domestic top level.

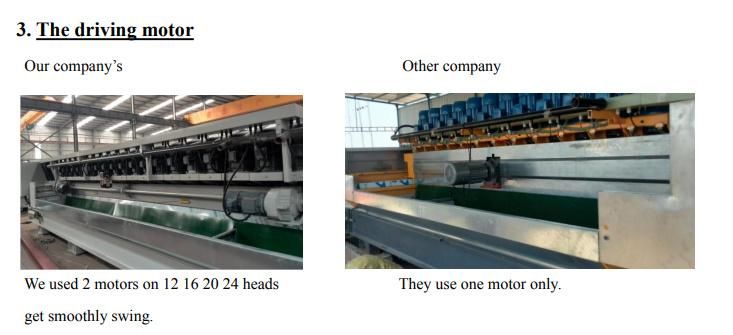

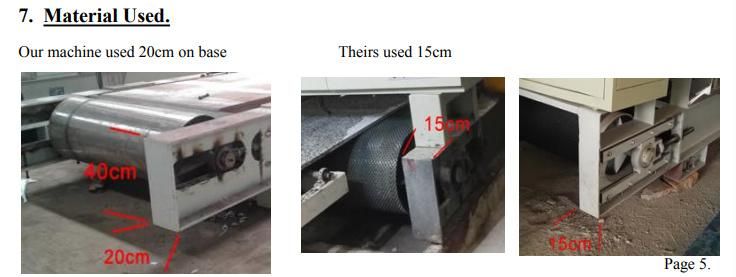

Details

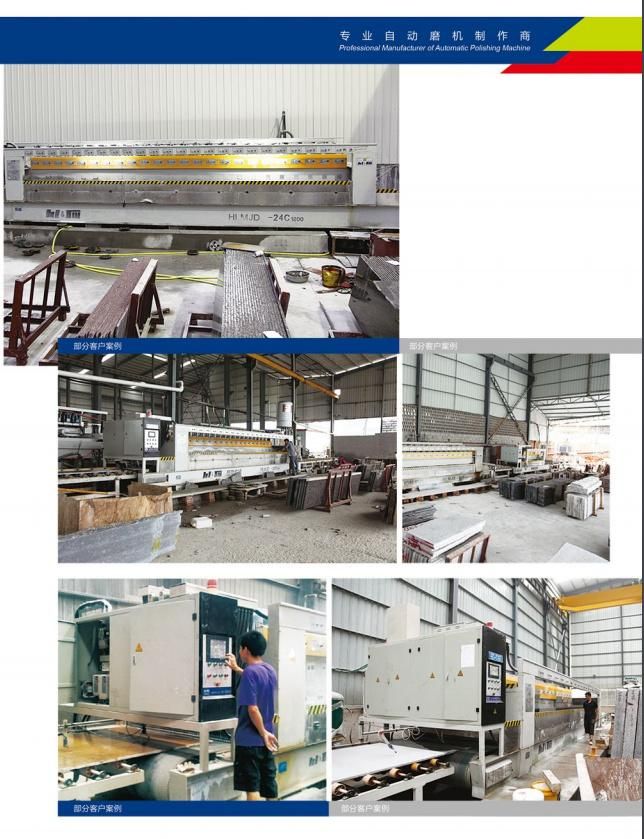

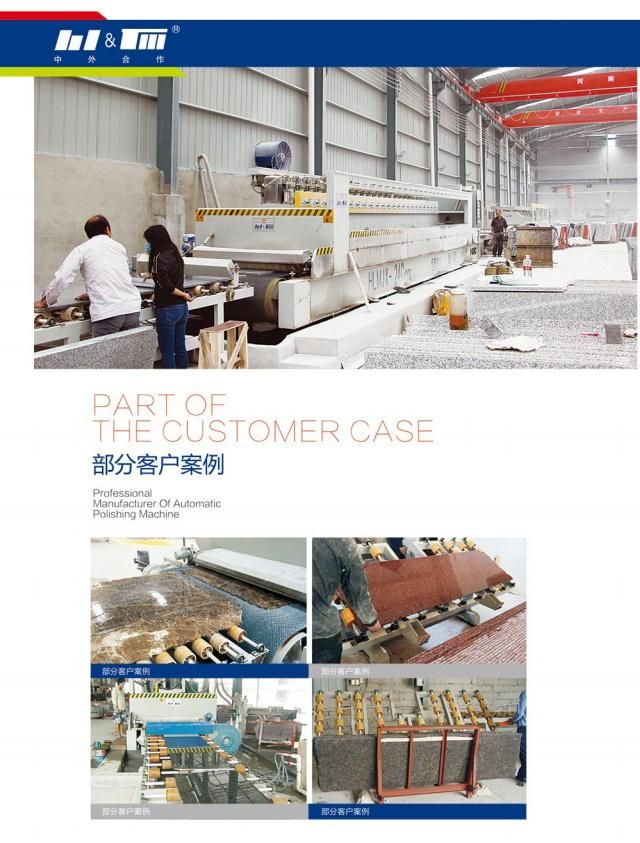

Part of case
