China Leading Micro Powder Grinding Mill Stone Grind Flour Mill

Zhengzhou General Mining Machinery Co., Ltd.
  • Control：Artificial
  • Automation：Automatic
  • Precision：High Precision
  • Application：Ceramics, Glass, Cement Brick, Granite, Marble, Ore, Coal, Cement, Limestone, etc.
  • Type for Grinding Machine：Centrifugal Grinding Machine
  • Grinding Method：Dry Grind

Base Info

  • Model NO.：YGM
  • Certification：ISO, CE, SGS
  • Condition：New
  • Installation：Under The Guidance of Engineer
  • Warrenty：1 Year
  • After-Sale Service：Training, Technical Support, etc.
  • Mining Object：Mining Machinery
  • Delivery：7-15 Working Days
  • Price Advantage：Own Factory Can Offer Best Price
  • Brand Name：Tym
  • Transport Package：International Packing Standard
  • Specification：YGM65, YGM75, YGM85, YGM85B, YGM95, YGM130, YGM160
  • Trademark：TYM
  • Origin：China Mainland
  • HS Code：8474201000
  • Production Capacity：60 Sets,Month

Description

Basic Info.

Model NO. YGM Certification ISO, CE, SGS Condition New Installation Under The Guidance of Engineer Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Mining Object Mining Machinery Delivery 7-15 Working Days Price Advantage Own Factory Can Offer Best Price Brand Name Tym Transport Package International Packing Standard Specification YGM65, YGM75, YGM85, YGM85B, YGM95, YGM130, YGM160 Trademark TYM Origin China Mainland HS Code 8474201000 Production Capacity 60 Sets/Month

Product Description

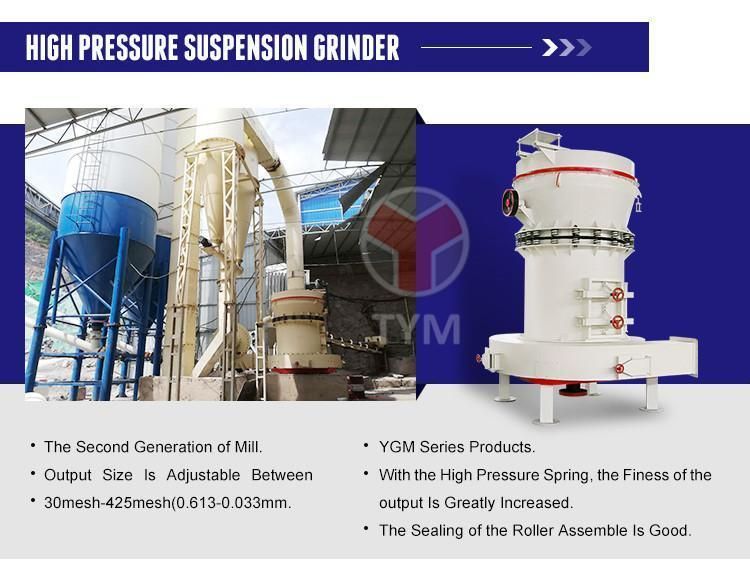

High Pressure Suspension Grinding MillApplication:High-pressure suspension grinding mill is mainly used to the powder processing of mineral products in the industries of metallurgy, construction materials, chemical and mining. etc. It can produce powder from various non-flammable and non-explosive mineral materials with mohs hardness below 9.3 and humidity below 6%, such as quartz, feldspar, calcite, talcum, barite, fluoride, Xircom, cinder, white lime, cement clinker, activated carbon, and so onChina Leading Micro Powder Grinding Mill Stone Grind Flour Mill Features (compared with Raymond mill):
1. Special designed, above the plum flower frame, setting a pressure device weighted 1500kg-2000kg. The capacity increased by 10-30% under same power, the grinding pressure from grinding device to the material increased by 800-1500kgf, the fineness of final product can be up to 1000 mesh.
2. The machine is applicable to various kinds of materials, can be used for grinding all kinds of materials less than 9.3 mohs hardness.
3. The dedusting effect is completely up to national standards.
4. The grinding device adopts the high quality and efficient processing technology, multilevel seal guarantee the good sealing effect.
5. The change cycle of grinding roll and grinding rill is long; Eliminating the disadvantages of centrifugal crusher that change cycle of vulnerable parts is short.
6. The grinding device use multilevel seal, the seal effect is good.China Leading Micro Powder Grinding Mill Stone Grind Flour Mill
ModelMaximum Feed size(mm)Output size(mm)Capacity(T)Power of main frame(kw)
YGM65< 150.613-0.0330.4-1.815
YGM75< 150.613-0.0331-318.5
YGM85< 200.613-0.0331.2-4.622
YGM85B< 200.613-0.0331.2-4.622
YGM95< 250.613-0.0332.1-5.637
YGM130< 300.95-0.0333-9.575
YGM160< 600.95-0.0335-22185
