• Model NO.：Stone Cone Crusher
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Customized
• Finished Size：6-38mm
• Application Fields：Metallurgy, Construction, Road Paving, Chemistry a
• Motor Power(Kw)：132-630
• Transport Package：Transport Package
• Specification：36-2181t,h
• Trademark：CHAENG
• Origin：Henan
• Production Capacity：36-2181t,H

Basic Info.

Model NO. Stone Cone Crusher Finished Surface Thread Process Certification CE, ISO Condition New Color Customized Finished Size 6-38mm Application Fields Metallurgy, Construction, Road Paving, Chemistry a Motor Power(Kw) 132-630 Transport Package Transport Package Specification 36-2181t/h Trademark CHAENG Origin Henan Production Capacity 36-2181t/H

Product Description

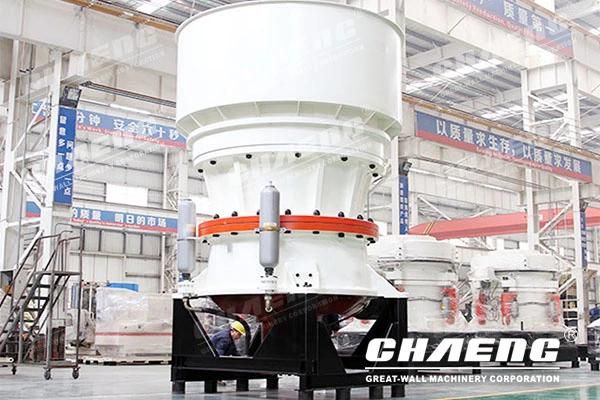

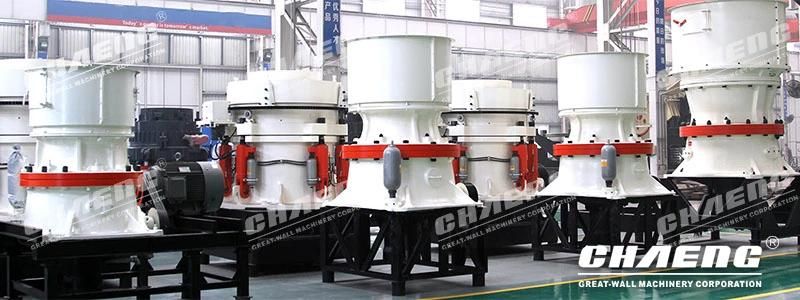

Introduction of single cylinder hydraulic cone crusher

2020 Factory Price New Energy Saving Single Cylinder Hydraulic cone crusher can crush materials of above medium hardness, such as iron ores, copper ores, limestone, quartz, granite, gritstone, etc. And it is widely used in metallurgy, building, hydropower, transportation, chemical industry, etc. When used in production line, it can be used as secondary, tertiary or quaternary crushing.
Working Principle of single cylinder hydraulic cone crusher

The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close. The crushing cone axis is forced to swing by the eccentric bearing bushing, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. To the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
At the same time, the crushing material is very excellent in particle size, and its quality is even better., it is widely accepted and favored by users in the industry, and is particularly sought after by metal ore and construction sand processing plants. It has become one of the hot selling equipment in the industry.

 Specification of single cylinder hydraulic cone crusher

Model	Discharge size	Installed power	Min. capacity	Max. capacity	Chamber	Auxiliary classification
GCPF500	32mm	400Kw	400t/h	530t/h	C2 thick	HP Hydraulic
GCPF300	16mm	220Kw	170t/h	215t/h	M middle	HP Hydraulic
GCPF500	38mm	400kw	425t/h	580t/h	C1 Super thick	HP Hydraulic
GCPF300	22mm	220Kw	220t/h	260t/h	C2 thick	HP Hydraulic
GCPF440	25-51mm	220Kw	195t/h	486t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	29-51mm	220Kw	225t/h	511t/h	S1 middle thick	Single Cylinder Hydraulic
GCPF440	35-54mm	220Kw	267t/h	601t/h	S1 Super thick	Single Cylinder Hydraulic
GCPF660	38mm	315Kw	318t/h	895t/h	S2 middle thick	Single Cylinder Hydraulic
GCPF660	41mm	315Kw	345t/h	1050t/h	S1 middle thick	Single Cylinder Hydraulic

Advantages of single cylinder hydraulic cone crusher
Features:
High production capacity, high crushing efficiency
Laminate broken, good product size
A variety of chamber types combine the best strokes to accommodate a wide range of particle size requirements;
The life of wear parts; simple is long.
Simple design, convenient maintenance, low operating costs.ly.

 About CHAENG

1.Based on high-end and advanced equipment

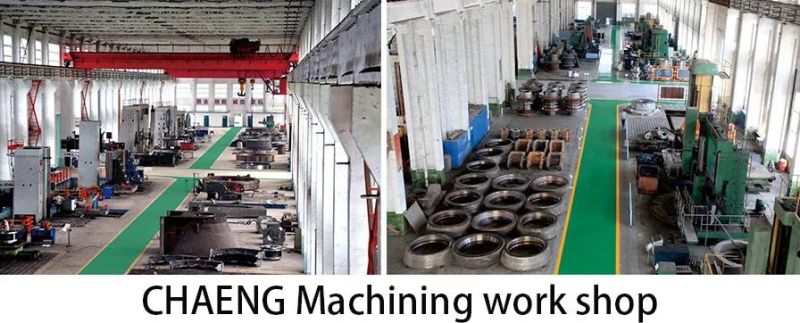

With large casting base, machining and assembling workshop, CHAENG has strong casting and processing strength. All the main engines for the turnkey project are self-made, and other supporting auxiliary machines are bought from excellent brands at home and abroad, which means that we can control the whole quality and construction period of the project.2.Multiple patents, controlling the core technologies
The company has a professional technical team in many fields with more than 100 people, such as technology, equipment, hydraulic, electrical and civil engineering. So we can design the whole sandstone aggregate production line independently. We stick to independent research and innovation all the time, continuously optimize product performance and improve the technological content of products. We have research center of aggregate, powder and high-performance concrete, so we can provide scientific and professional sandstone aggregate production system solutions for the customers.
CHAENG has won man honorary awards, such as "top 100 suppliers in China cement industry", "top 10 innovative enterprise in China cement industry", "high-growth private enterprise in Henan Province", "technological innovation demonstration enterprise of  energy conservation and emission reduction in Henan Province", "National high-tech enterprise" and so on.
