Stone Processing Machinery

High Efficiency Gold Mining Equipment Made in China

Zhengzhou General Mining Machinery Co., Ltd.
  • Type:Stone Grinding Machine
  • Control:CNC
  • Automation:Automatic
  • Precision:Precision
  • Application:Ceramics, Cement Brick, Granite, Marble, Gold Ore
  • Type for Grinding Machine:Drum Grinding Machine

Base Info

  • Model NO.:in details
  • Grinding Method:Wet Grind
  • Certification:ISO, CE, SGS
  • Condition:New
  • Delivery Time:7-20 Days
  • Installation:Under The Guidance of Engineer
  • Certificate:ISO;SGS;CE:Ciq:FTA;etc
  • Warrenty:1 Year
  • After-Sale Service:Training, Technical Support, etc.
  • Discharging Size:20-200 Mesh.Can Be Adjusted
  • Feeding Size:<25mm
  • Exporter Type:Factory Manufacturer
  • MOQ:1 Set
  • Transport Package:Bulk Carrier
  • Specification:ISO, CE, SGS
  • Trademark:TYM
  • Origin:Henan, China
  • HS Code:8474202000
  • Production Capacity:60 Sets,Month

Description

Basic Info.

Model NO. in details Grinding Method Wet Grind Certification ISO, CE, SGS Condition New Delivery Time 7-20 Days Installation Under The Guidance of Engineer Certificate ISO;SGS;CE:Ciq:FTA;etc Warrenty 1 Year After-Sale Service Training, Technical Support, etc. Discharging Size 20-200 Mesh.Can Be Adjusted Feeding Size <25mm Exporter Type Factory Manufacturer MOQ 1 Set Transport Package Bulk Carrier Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474202000 Production Capacity 60 Sets/Month

Product Description

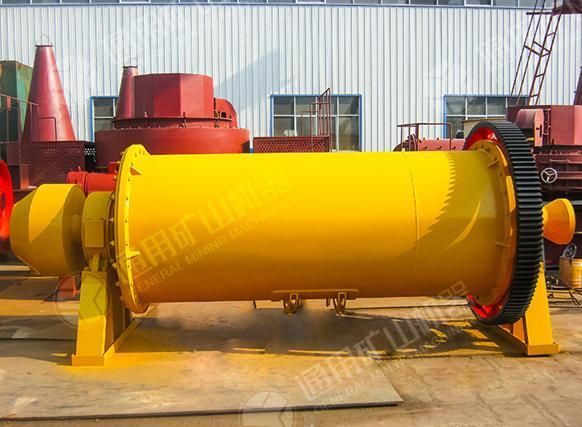

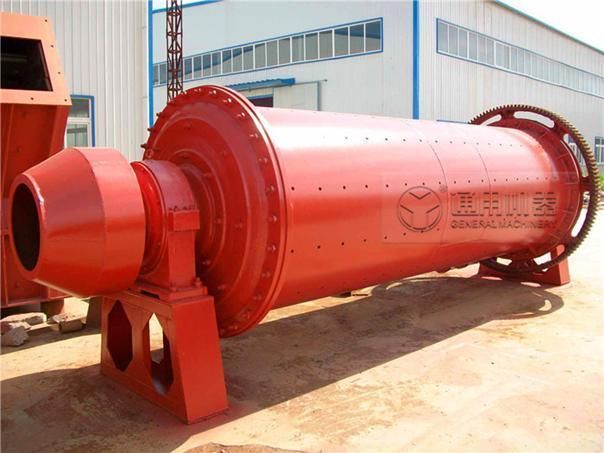

Ball millBall mill application:
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. 2 It is widely used in building material, chemical industry, etc. There are two ways of grinding: The dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.

High Efficiency Gold Mining Equipment Made in ChinaWorking principle of ball mil:

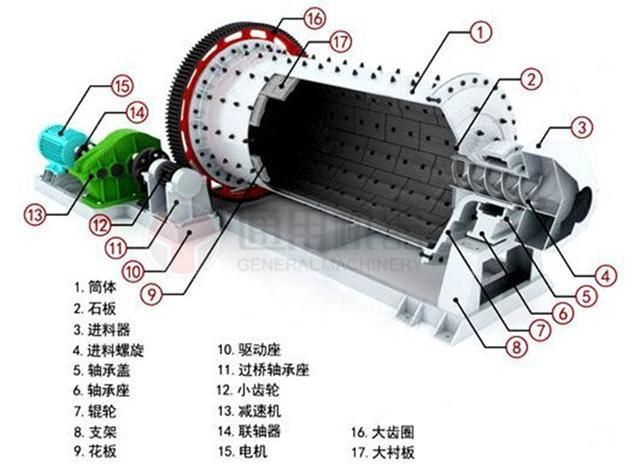

To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several minutes.

Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.

ModelSpeed of bucket (r/min)Weight of ball (t)Size of feed opening (mm)Size of outputting feed (mm)Production (t/h)Power (Kw)Weight (t)
Φ 900× 1800381.5≤ 200.075-0.890.65-218.53.6
Φ 900× 3000382.7≤ 200.075-0.891.1-3.5224.6
Φ 1200× 2400323.8≤ 250.075-0.61.5-4.84512.5
Φ 1200× 3000325≤ 250.075-0.41.6-54512.8
Φ 1200× 4500327≤ 250.075-0.41.6-5.85513.8
Φ 1500× 3000278≤ 250.075-0.42-59017
Φ 1500× 45002714≤ 250.075-0.43-611021
Φ 1500× 57002715≤ 250.075-0.43.5-613224.7
Φ 1830× 30002411≤ 250.075-0.44-1018028
Φ 1830× 64002423≤ 250.075-0.46.5-1521034
Φ 1830× 70002425≤ 250.075-0.47.5-1724536
Φ 2200× 55002130≤ 250.075-0.410-2237048.5
Φ 2200× 65002130≤ 250.075-0.414-2628052.8
Φ 2200× 75002133≤ 250.075-0.416-2947556
High Efficiency Gold Mining Equipment Made in ChinaHigh Efficiency Gold Mining Equipment Made in ChinaHigh Efficiency Gold Mining Equipment Made in ChinaCompany information:

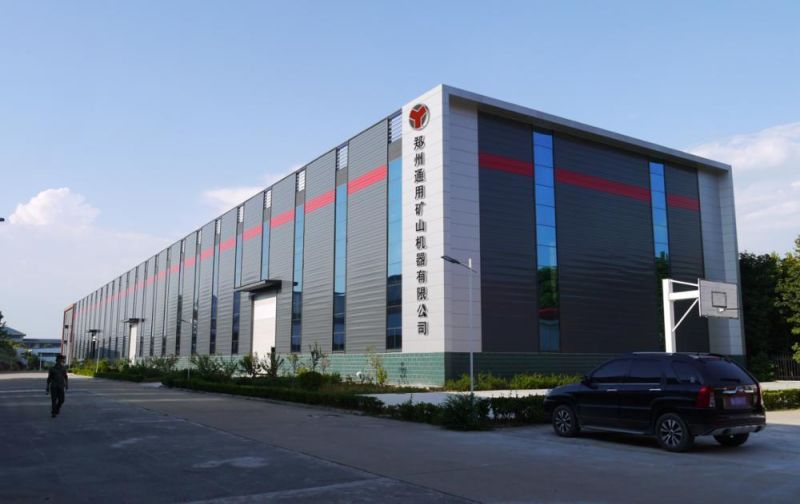

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.

What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you.

High Efficiency Gold Mining Equipment Made in China
Pre-sale services:
(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

Sales tracking:
(1)Product acceptance.
(2)Help customers to develop construction programs.

After-sale services:
(1) Free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) Equipment installation.
(3) On-site training of operators.
(4) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!
