Laser Granite Cutting Machine Manufacture European

Fujian Wanlong Diamond Tool Co., Ltd.
  • Usage：Ceramics, Glass, Fire Brick, Red Brick, Jadestone, Concrete Curb, Granite, Marble
  • Application：Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Certification：API, CCC, UL, SONCAP, GOST, ISO, CE

Base Info

  • Model NO.：PLC 600
  • Control Way：Laser
  • Table Rotation：90°,360° Upon Your Choice
  • Max Cutting Size：3200*2000*180mm
  • Cutting Head：Can Tilt 45degree
  • Main Motor：Siemens
  • Lifting System：Hydraulic
  • PLC：Panasonnic PLC
  • Inverter：Panasonnic
  • Contactor：FUJI
  • Transport Package：Container
  • Specification：6000*4800*2800
  • Trademark：wanlong
  • Origin：China
  • HS Code：8464101000
  • Production Capacity：50sets ,Month

Description

Basic Info.

Model NO. PLC 600 Control Way Laser Table Rotation 90°/360° Upon Your Choice Max Cutting Size 3200*2000*180mm Cutting Head Can Tilt 45degree Main Motor Siemens Lifting System Hydraulic PLC Panasonnic PLC Inverter Panasonnic Contactor FUJI Transport Package Container Specification 6000*4800*2800 Trademark wanlong Origin China HS Code 8464101000 Production Capacity 50sets /Month

Product Description

Product Description

Laser granite cutting machine manufacture European

Product Description

Laser Bridge Cutting Machine (WL/PLC-700)

PLC-700 is controlled by computer.

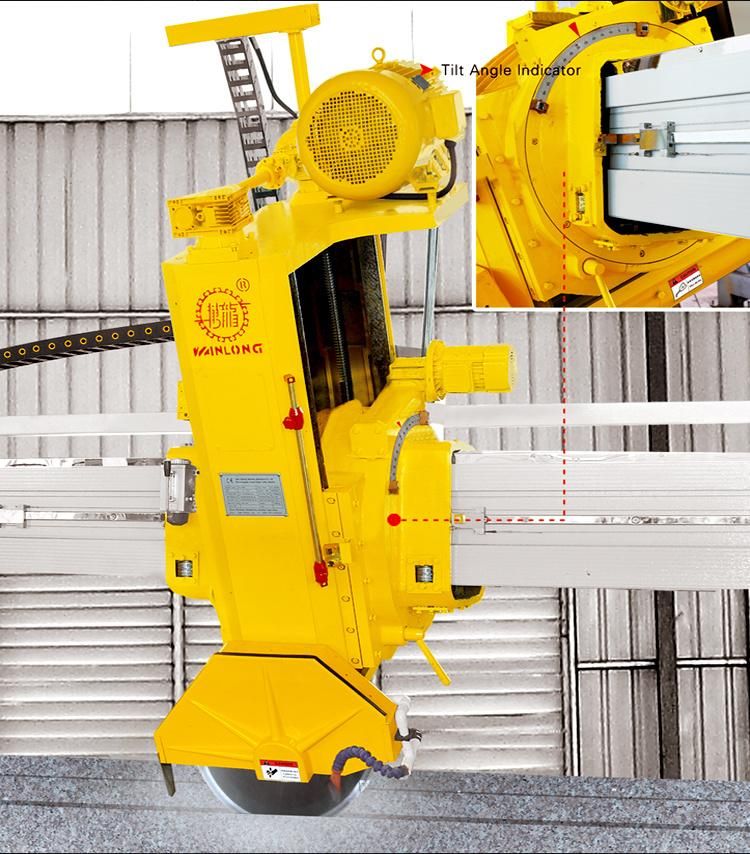

The blade can tilt 45 degree in solid.

High efficiency for cutting slab & tile, stable and reliable
Feature
1. Wide bridge structure with crossbeam, large size of slab cutting available

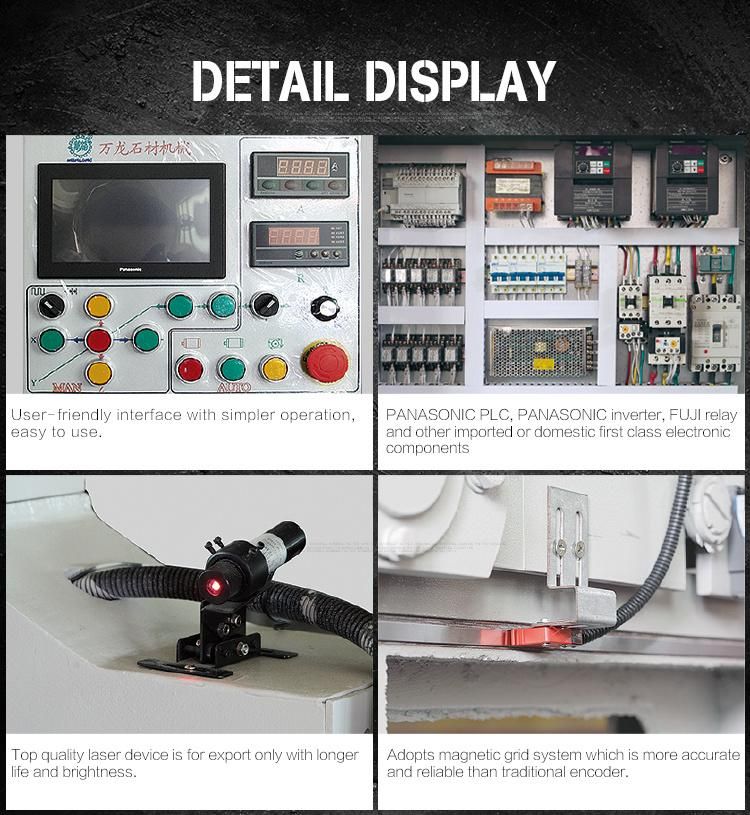

2. Equipped with infrared device, precise cutting location reachable
3. Dustproof design of the slide track ensures the precise guide movement & long lifespan
4. Worktable can tilt & rotate in wide angle for special processing
5. PLC control system, programmable, fully automatic & smooth feeding
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese name brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface design
9. CE certificate

The crossbeam is made of strong cast iron to avoid distortion after long run
Guide rail is oil impregnated and protected from water and dust

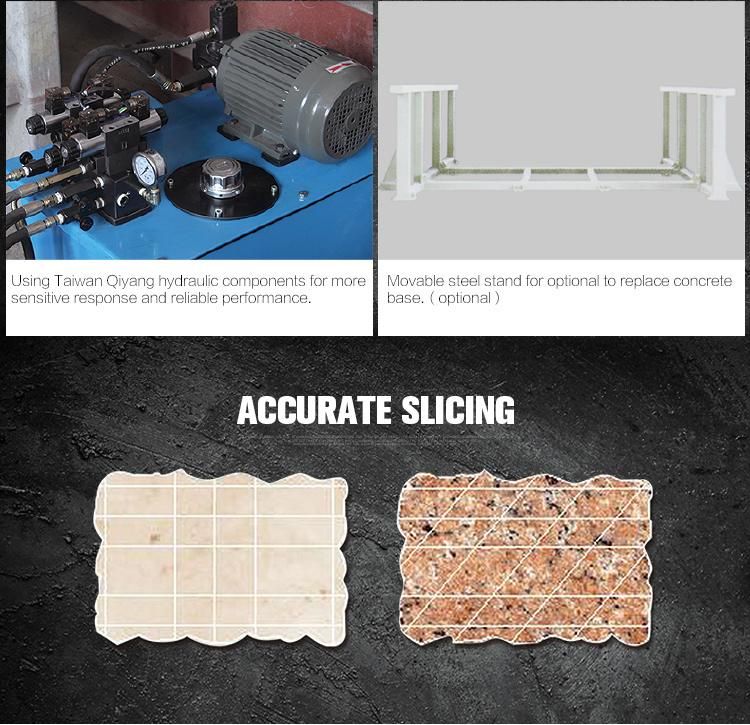

Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
Horizontal movement of the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed
Worktable can tilt 0-85° , and rotate 0-360° .
Equipped with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic
Lead Time: 30 days after receipt the down payment

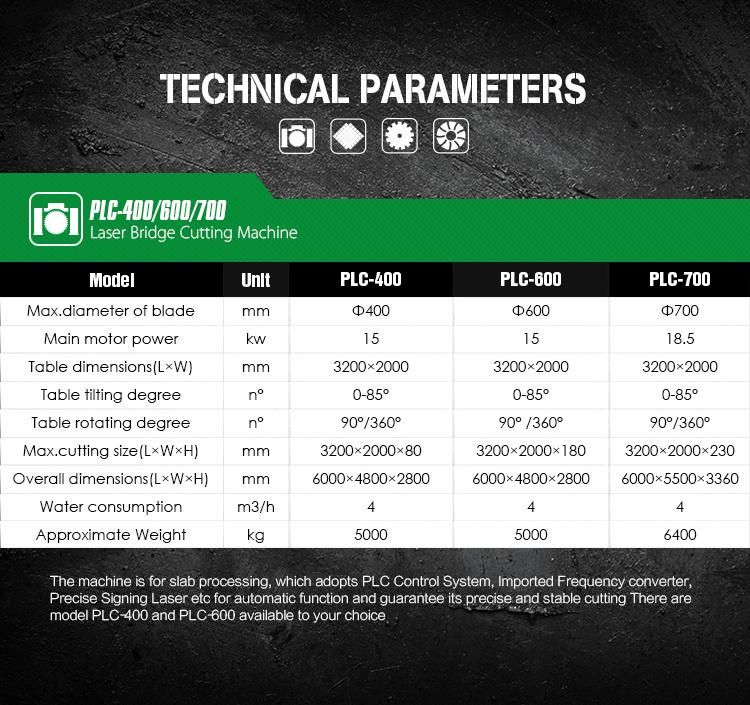

  Technical Parameter  PLC-350-400  PLC-700
  Max Dia of Blade  400mm  700mm
  Workable Tilting Degree  0-85  0-85
  Workable Rotating Degree  90/360  90/360
  Workable Dimension  3200X2000  3200X2000
  Max. Cutting Dimension(LXWXH)  3200X2000X80  3200X2000X180
  Main Motor Power  15kw  15kw
    Power Requirement  3 Phs 380V 50Hz  3 Phs 380V 50Hz
  Water Consumption  4  (cbm/h)  4  (cbm/h)
  Overall Dimension  6000X5000X2800  6000X5000X3000
  Total Weight  5, 000kg  6,400kg

Laser Granite Cutting Machine Manufacture European
Laser Granite Cutting Machine Manufacture European
Laser Granite Cutting Machine Manufacture European
Laser Granite Cutting Machine Manufacture European
Laser Granite Cutting Machine Manufacture European

Wanlong is now one of the biggest manufacturers of diamond tools, supplying products for stone cutting, polishing, grinding and drilling.

Professional Team

23 years of experience in diamond tools industry;
900 experienced employees;
2100 clients from 108 countries and regions;
200,000 pieces segments of daily production output.

Company Information

Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 22 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.

Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

Machinery: Wanlong Mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. More than 22 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.



Following products are supplied:

1. Diamond segments and diamond saw blade, ranging from 200mm to 3500mm.

2. Dry cutting & turbo saw blade.

3. Diamond wire and beads for granite & marble.

4. Polishing abrasive.

5. PDC Cutters for Oil & Gas Drill Bits and Chain Saw machine.

6. Bridge Cutting Machine & Auto Polishing Machine, etc.

 1).QSQ-2200/2500 Bridge Multiblade Block Cutter

 2). QZQ-900/1200 Bridge Cutting Machine

 3).PLC-400/600 Laser Bridge Cutting Machine

 4).MS-2600/3000 Polishing Machine

 5).SY-S80 Hydraulic Pressing Machine, etc.
