Zy-MW Series Multi-Wire Saw Machine
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：Good Technical Services
- Warranty：3 Years
- Type：CNC Cutting Machine
- Usage：Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Mineral Industry, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：ZY-MW 42
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO, CE
- Cutting Slab：9
- Cooling Water：1000L,Min
- Nw：45t
- Max Cutting Length：3200mm
- Max Cutting Height：2000mm
- Transport Package：Ply Wood
- Specification：11000*5900mm
- Trademark：Stonewin
- Origin：Fujian, China
- HS Code：8464109000
- Production Capacity：100 Sets,Year
Description
ZY-MW SERIES MULTI-WIRE SAW MACHINE TECHNICAL DATA ZY-MW 10 ZY-MW 21 ZY-MW 36 ZY-MW 42 ZY-MW 58 ZY-MW 72 MAX.CUTTING LENGTH 3200mm 3200mm 3200mm 3200mm 3200mm 3200mm MAX.CUTTING HEIGHT 2200mm 2200mm 2200mm 2200mm 2200mm 2200mm SLABS STANDARD THICKNESS 20/30mm 20/30mm 20/30mm 20/30mm 20/30mm 20/30mm MAX.CUTTING SLAB QUANTITY 9 20 35 41 57 71 DIAMOND BEADS DIAMETER 6.4/7.3mm 6.4/7.3mm 6.4/7.3mm 6.4/7.3mm 6.4/7.3mm 6.4/7.3mm DIAMOND WIRE LENGTH 23000mm 23000mm 23000mm 23000mm 23700mm 23700mm MAX.INDIVIDUAL WIRE TENSION 200/250KG 200/250KG 200/250KG 200/250KG 200/250KG 200/250KG WIRE SAW SPEED 0-35m/s 0-35m/s 0-35m/s 0-35m/s 0-35m/s 0-35m/s MAIN MOTOR POWER 55KW 95KW 132KW 160KW 250KW 280KW COOLING WATER 250L/min 500L/min 800L/min 1000L/min 1800L/min 2300L/min MACHINE LENGTH 11000mm 11000mm 11800mm 11800mm 11800mm 11800mm MACHINE HEIGHT 5900mm 5900mm 5900mm 5900mm 5900mm 5900mm NET WEIGHT 20T 30T 35T 45T 50T 65T

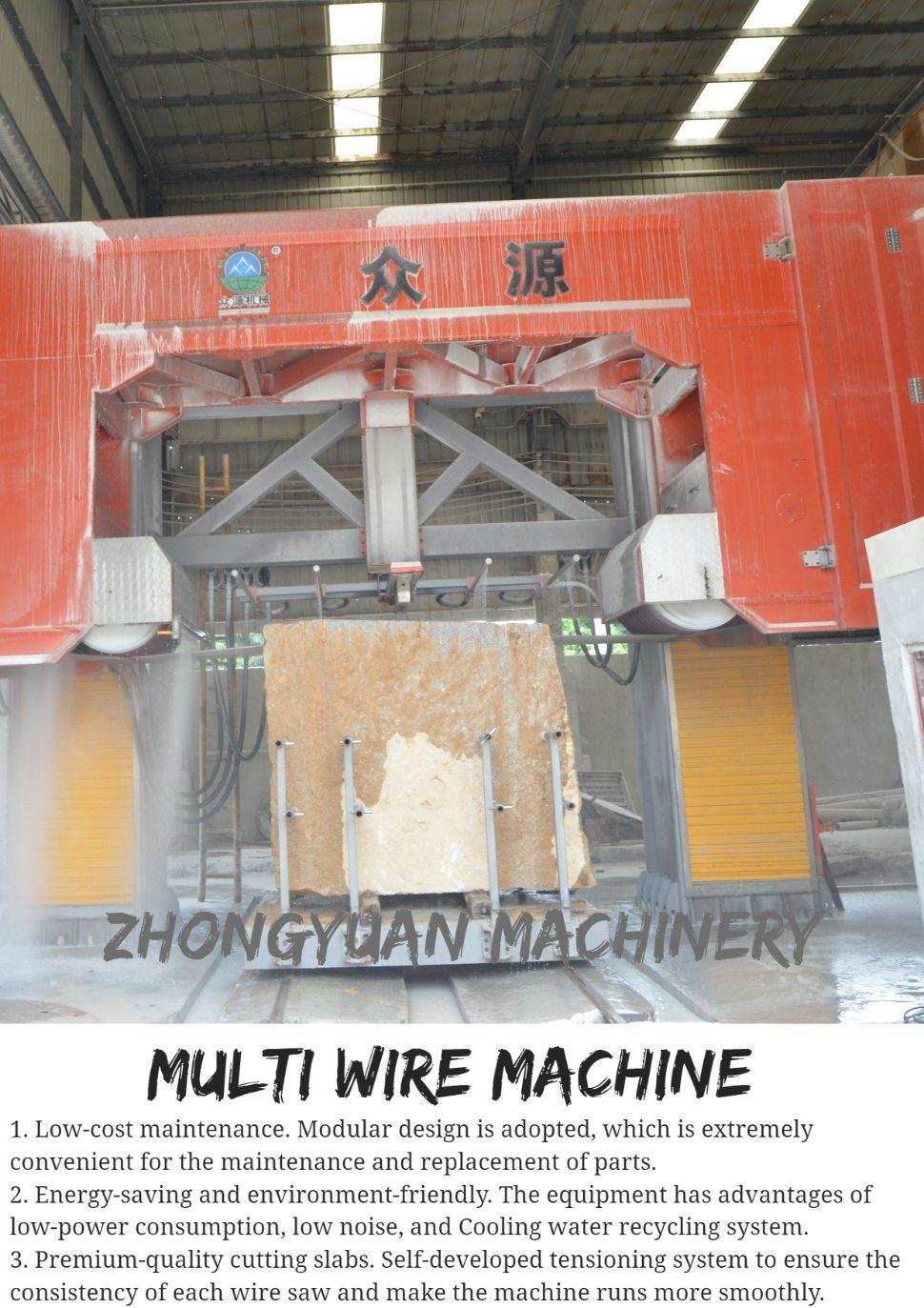

Functions and Features:
This machine mainly consists of the following main parts: driving system, tension system, lifting system, trolley system, speed regulation system, sprinkler system, and lubrication system.Its main features as follows:
1. This machine abandons the traditional linear roller system and adopts high precision linear sliding track in an all-round way to ensure the stable operation of the vertical column linear slider during the machining process.
2. This machine adopts the new international digital control technology to provide a comprehensive guarantee for the smooth operation of the equipment.
3. This machine adopts the self-developed tensioning system to ensure the consistency of each wire saw and make the machine run more smoothly. 4. This machine adopts PLC digital control system to realize the modular combination of various parts, display the running status of the equipment in real time through the display screens, and realize the automatic operation by setting the operating parameters you desired.
5. The design of the machine is reasonable, stable operation, convenient operation, small floor space occupied, high processing efficiency, energy saving and environmental protection.
6. Various specifications available to cut different widths of blocks, mainly used for processing large slabs of granite, marble and artificial stone. It is the ideal replacement for sand saws and provides more choices for large-scale processing among various stone enterprises.
COMPANY PROFILES

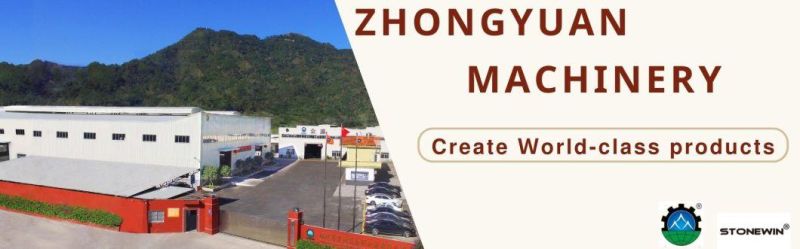

Fujian Xiapu Zhongyuan Machinery Co., Ltd. is an integrative enterprise, which is specialized in researching, developing,
manufacturing and selling of "ZHONGYUAN" and "STONEWIN" brands quarrying equipments and tools,
is state High-tech Enterprises. The company has R&D centers for wire saw machine and diamond wire saw.
It has an Fujian Ningde AQT Imp&Exp Co., Ltd., focusing on international trade,it owns an outstanding and professional team for technical R&D,
marketing and services. The company is located in Xiapu, and nearby the CRH railway station, Shen-Hai Expressway and Mawei Port.
And the plants take up an area of 20,000 square meters. The location has the advantages of superior position, convenient transportation and beautiful environment.
The fields of researching, developing, manufacturing and services of the products are based on the international perspective and the local market.
The company has a number of self-developed product patents, first-class producing and processing technology;
and it is one of the earlier stone machinery and equipments suppliers. The company mainly produces wire saw machine,
multi-wire saw machine, diamond wire saw, diamond multi-wire saws, cavern type wire saw machine,horizontal drilling machine,
DTH drilling machine, and related accessories and tools. The products are widely sold in domestic and international markets,
and getting good reputation from customers.Based on the manufacturing philosophy of "excellent quality is derived from precision and advantage",
the company is constantly exploring new technology, overcoming industry technical difficulties,
and concentrating its advantages and resources to produce high performance, reasonable structure,
premium quality and competitive price "ZHONGYUAN" brand products.
"Good quality creates famous brand" is the eternal purpose of development of the company.
To further enhance the core competitiveness of the products, the company strictly upholds the scientific management of the modern enterprise,
constantly makes technology innovation, and continuously improves manufacturing. The company established a complete marketing service system.
We have perfect detection means and perfect after-sales service networks for "ZHONGYUAN" products.
The company is dedicating to its new and regular customers from home and abroad by the principle of "Quality first, Creditability first, Customer first".
