Stone Statue Sculpture Making 1530 CNC Router Machine
Linyi Chaoda International CNC Technology Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble, Granite,Stone,Wood
- Automation：Semi-automatic
- Control：CNC
- Motor Power：Middle Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：JCS1530L
- Certification：CE, BV, TUV, SGS
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Type：Stone Statue Sculpture Making CNC Router
- Flat Working Size：1500mm*3000mm*500mm
- Rotary Working Size：800mm Diameter, 2000mm Length
- Spindle Power：5.5kw Water Cooling Spindle
- Control System：Ncstudio,Syntec
- Motor：Servo Motor
- Saw Blade Function：Yes
- Auto Oil System：Yes
- Option：Polishing Pad
- Transport Package：Protected by Film and Fastened with Metal Wires
- Specification：customized
- Trademark：CHAODA
- Origin：China
Description
Basic Info.
Model NO. JCS1530L Certification CE, BV, TUV, SGS Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Type Stone Statue Sculpture Making CNC Router Flat Working Size 1500mm*3000mm*500mm Rotary Working Size 800mm Diameter, 2000mm Length Spindle Power 5.5kw Water Cooling Spindle Control System Ncstudio/Syntec Motor Servo Motor Saw Blade Function Yes Auto Oil System Yes Option Polishing Pad Transport Package Protected by Film and Fastened with Metal Wires Specification customized Trademark CHAODA Origin ChinaProduct Description
stone statue sculpture making 1530 cnc router machine

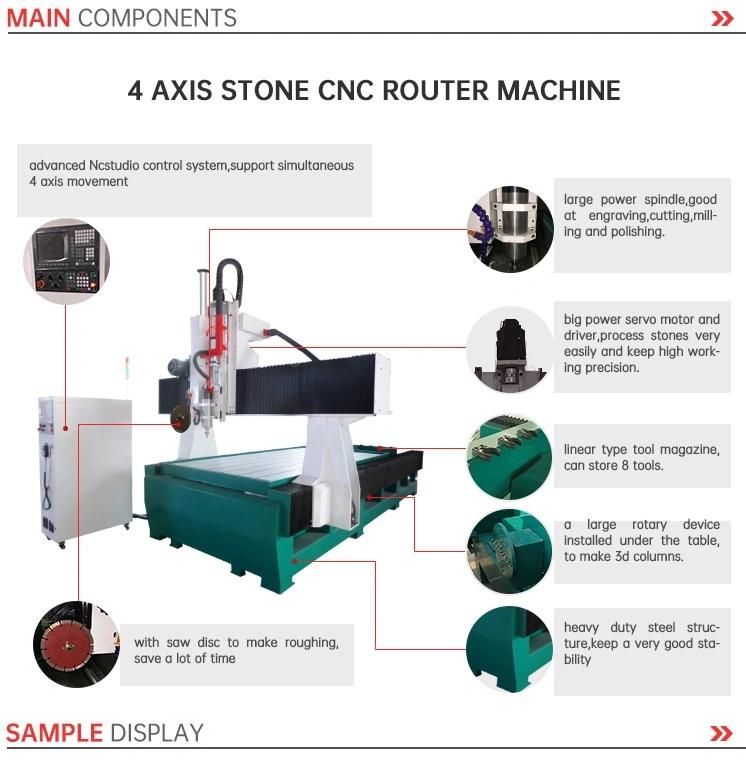

- Heavy duty steel structure, keep machine with very good stability.
- Adopt good quality machine parts,to make machine with high performance and durability.
- Multi-function, machine is with both rotary device and flat able,can process 3d columns,also can process plane materials.
- The big rotary device can process different kinds of 3d roman columns corbel pilasters cylinders pillars.
- With saw blade function,for fast rough machining,10 times saved working time.
| Model No. | JCS1530L |
| Lathe bed | heavy duty steel structure |
| Table | Removable,T-slot with clamps |
| Flat Working size | 1500*3000*500mm |
| Rotary Working size | 800mm diameter, 2000mm length |
| Spindle power | 5.5kw /7.5kw BT30 water cooling ATC spindle |
| Spindle rotating | 18000 /24000rpm |
| Max.travelling speed | 55m/min |
| Max.working speed | 20m/min |
| Tool magazine | Linear type automatic tool changer, 8 tools ability |
| Control system | 4 Axis Nsctudio /Syntec |
| Motor | Servo |
| Saw blade unit | yes |
| Auto oil system | yes |
| Voltage | AC380v,3 phase,50Hz |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone,Travertine, Quartzite,
Slate, Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
