• Model NO.：CNC3500
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Gross Weight：10500kg
• Outline Dimensio：9800*7500*4500mm
• Main Motor：15kw
• Max Processing Size：3500*3500*2100mm
• Water Consumption：6m³,H
• Dimension of Worktable：2000*2500mm
• Color：Blue and Yellow
• Transport Package：Load in a 40 Feet Container
• Specification：9800*7500*4500mm
• Trademark：KINGRHIL
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. CNC3500 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Gross Weight 10500kg Outline Dimensio 9800*7500*4500mm Main Motor 15kw Max Processing Size 3500*3500*2100mm Water Consumption 6m³/H Dimension of Worktable 2000*2500mm Color Blue and Yellow Transport Package Load in a 40 Feet Container Specification 9800*7500*4500mm Trademark KINGRHIL Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

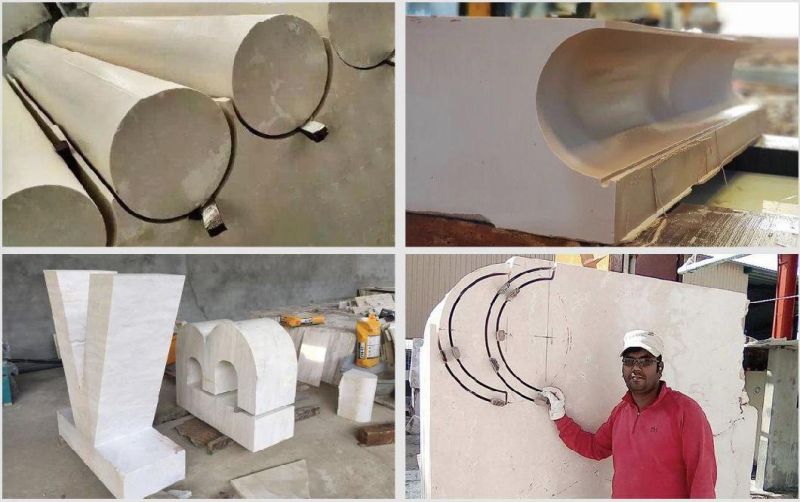

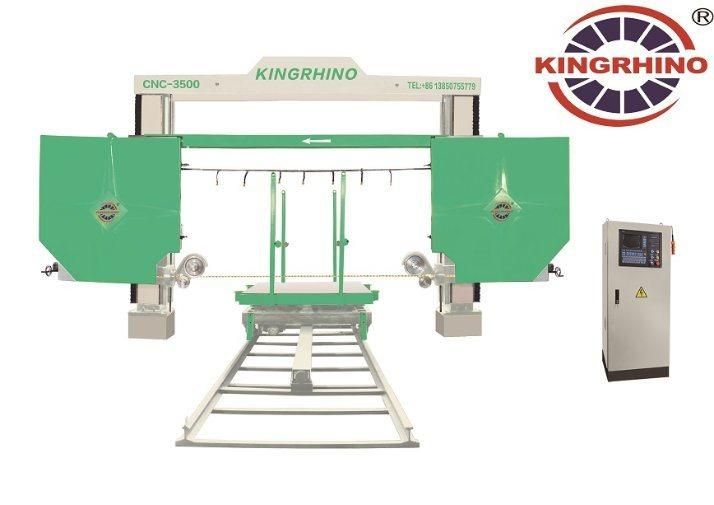

CNC 3500, four-axis linkage, is controlled by CNC. It is the ideal equipment for block cutting and processing, including column slab, pillar, Roman column, numeral, letter, Chinese characters,etc..
Main features are as follows:
1. The main motor uses inverter for speed control.
2. The track uses steel frame reinforced structure, much stronger.
3. The worktable is 360° rotary and adopts double nut structure, more stable,
4. Synchronous lifting through intermediate drive makes its cutting more stable and efficient.
5. The cantilever gearbox uses S-type waterproof structure to prevent water damaging the bearing and insure the accuracy of the cutting radian.
6. Aluminum wheel diameter is 1600mm.The dynamic balance on aluminum wheel makes each position of the same weight and ensures accurate cutting.
7. The lifting structure uses 16 surfaces slideway and 28pcs rolling wheels structure, making the support more stable and adjusting the gap after the pillar wears, which greatly enhances the cutting stability and elongates the bead rope's service life.

Technical Parameter

Parameter	Unit	CNC3500-diamond wire saw machine
Maximal Processing Size (L*W*H)	mm	3500*3500*2100
Worktable size	mm	2000*2500
Wire Speed	m/s	0~40
Main Motor	kw	15
Water consumption	m³/h	6
Gross weight	kg	10500
Outline dimension (L*W*H)	mm	9800*7500*4500

Exhibition

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
