• Model NO.：PE
• Crushing Style：Extruding & Milling
• Compressive Strength (For Crushing)：100-250MPA
• Crushing Degree：Fine Grinding Machine
• Finished Surface：Hole Process
• Certification：CE, ISO
• Condition：New
• Color：as Clients Required
• Discharge Size：20-60
• Capacity(T/H)：5-20
• Motor Power(Kw)：15
• Overall Dimension(mm)(L*W*H)：1150*1275*1240
• Weight(T)：2.8
• Motor：China Brand or as Request
• Installation：Under The Engineer′s Guidance
• Warranty：2 Years
• Delivery Detail：Within 7-15 Days After Receiving The Prepayment
• Transport Package：Wooden Packing or as Clients Required
• Specification：Optional
• Trademark：HongKe
• Origin：Zhengzhou, Henan, China
• HS Code：84742090
• Production Capacity：200 Sets, Month

Basic Info.

Model NO. PE Crushing Style Extruding & Milling Compressive Strength (For Crushing) 100-250MPA Crushing Degree Fine Grinding Machine Finished Surface Hole Process Certification CE, ISO Condition New Color as Clients Required Discharge Size 20-60 Capacity(T/H) 5-20 Motor Power(Kw) 15 Overall Dimension(mm)(L*W*H) 1150*1275*1240 Weight(T) 2.8 Motor China Brand or as Request Installation Under The Engineer′s Guidance Warranty 2 Years Delivery Detail Within 7-15 Days After Receiving The Prepayment Transport Package Wooden Packing or as Clients Required Specification Optional Trademark HongKe Origin Zhengzhou, Henan, China HS Code 84742090 Production Capacity 200 Sets/ Month

Product Description

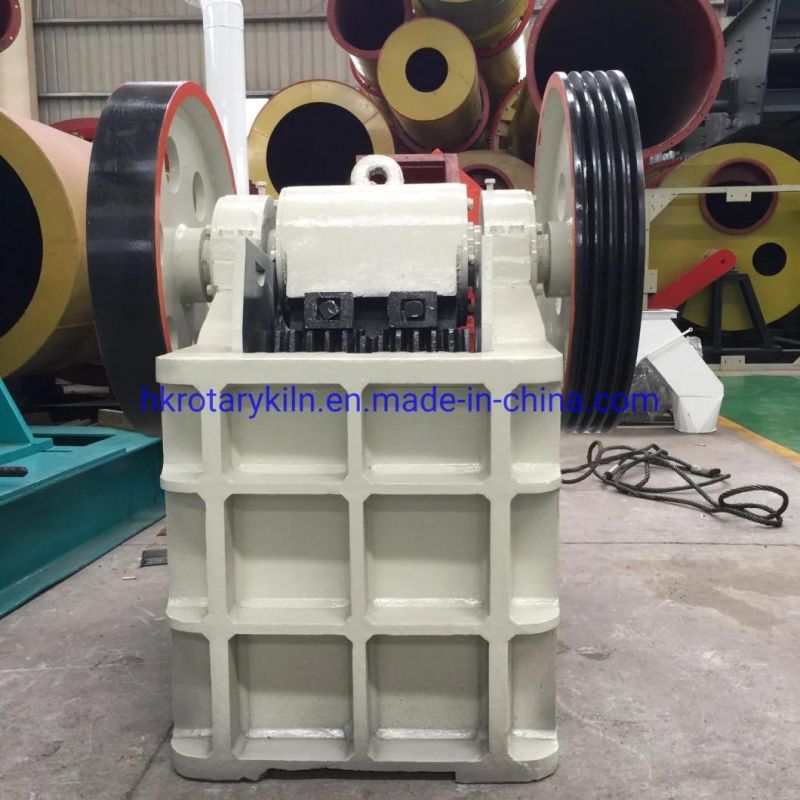

Stone Crusher Machine


Stone crusher is widely used in the world market mining industry nowadays, for primary crushing of hard rocks and block materials.
The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.


1. Application of Stone crusher

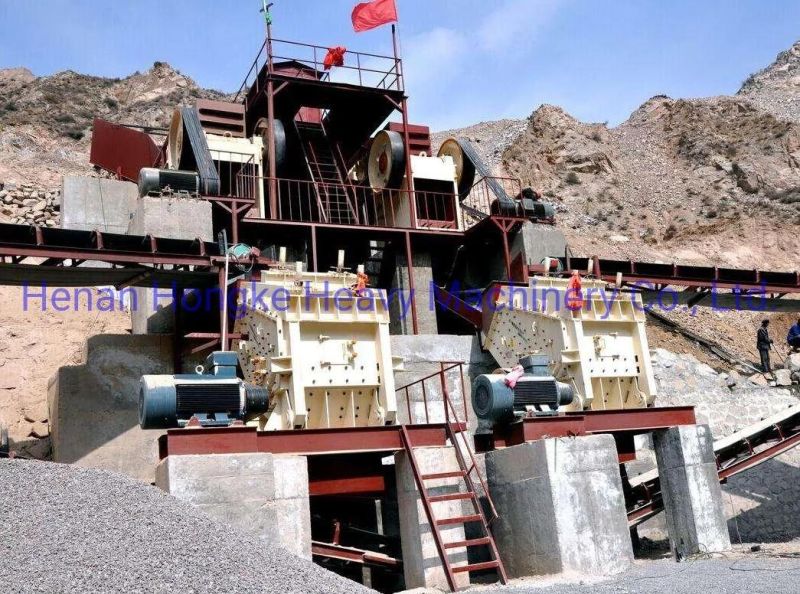

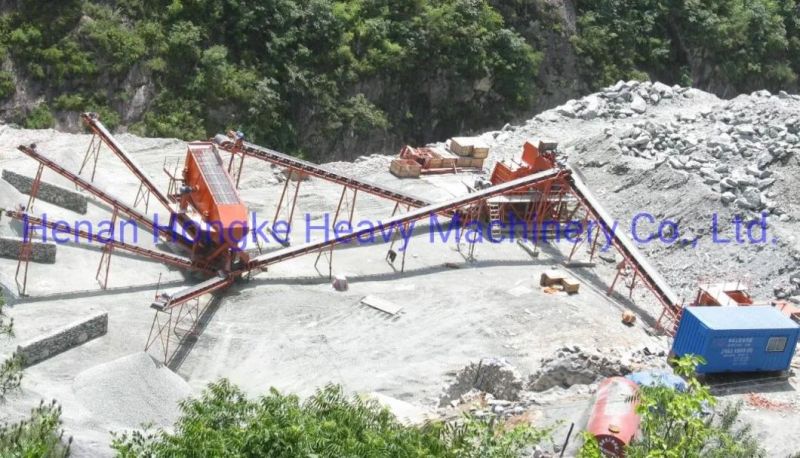

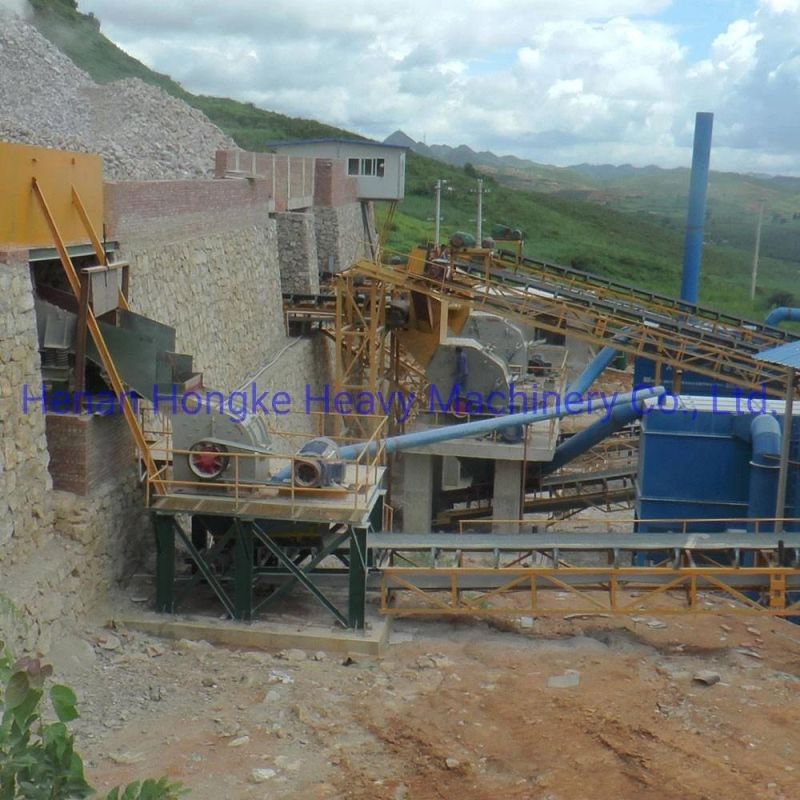

Stone Crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.
The angle between the fixed jaw and movable jaw becomes smaller.
The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.


2. Features of Stone Crusher
Stone crusher has features like simple structure, large crushing ratio, high capacity, even particles, convenient maintenance, low production cost and so on.

3. Working Principle of Stone Crusher
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;
The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;
When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger; the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity.

4.Technical parameters of Stone Crusher

Model	Max. Feeding Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor Power (kW)	Overall Dimensions (mm)	Weight (t)
PE250×400	200	20-60	5-20	15	1150×1275×1240	2.8
PE400×600	350	40-100	15-60	30	1700×1732×1653	6.5
PE500×750	425	50-100	50-100	55	2035×1921×2000	10.3
PE600×900	480	65-160	60-130	75	2290×2206×2370	16.5
PE750×1060	630	80-140	80-180	110	2620×2302×3110	29
PE900×1200	750	95-165	140-260	110	3789×2826×3025	54.5
PEX250×750	210	25-60	10-40	22	1667×1545×1020	5
PEX250×1000	210	25-60	15-50	30	1550×1964×1380	6.5
PEX250×1200	210	25-60	20-60	37	1560×2104×1415	7.7

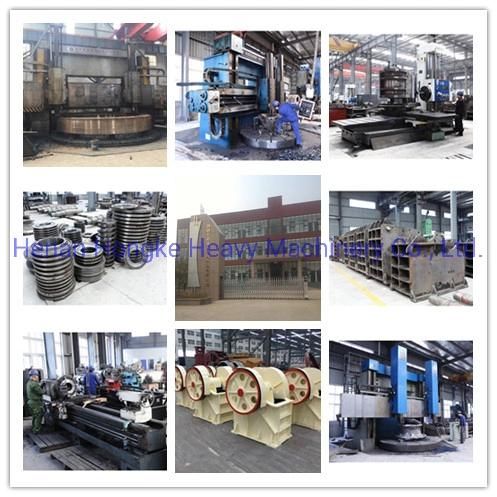

5.About our company jaw crusher
