CNC Carving Marble Granite Stone Machine
Hefei Aquila CNC Equipment Co., Ltd.- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
Base Info
- Model NO.：BD1325A
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Water Sink/Tank：Powder-Painting
- X/Y/Z Axis Working Area：1300*2500*300mm
- Spindle Motor Power：5.5kw Water Cooled
- Control System：Nc Studio,DSP
- Transport Package：Woosen Case Case Package
- Specification：1800*2500mm
- Trademark：Boiro
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. BD1325A Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Water Sink/Tank Powder-Painting X/Y/Z Axis Working Area 1300*2500*300mm Spindle Motor Power 5.5kw Water Cooled Control System Nc Studio/DSP Transport Package Woosen Case Case Package Specification 1800*2500mm Trademark Boiro Origin China HS Code 84659900 Production Capacity 300 Sets/MonthProduct Description

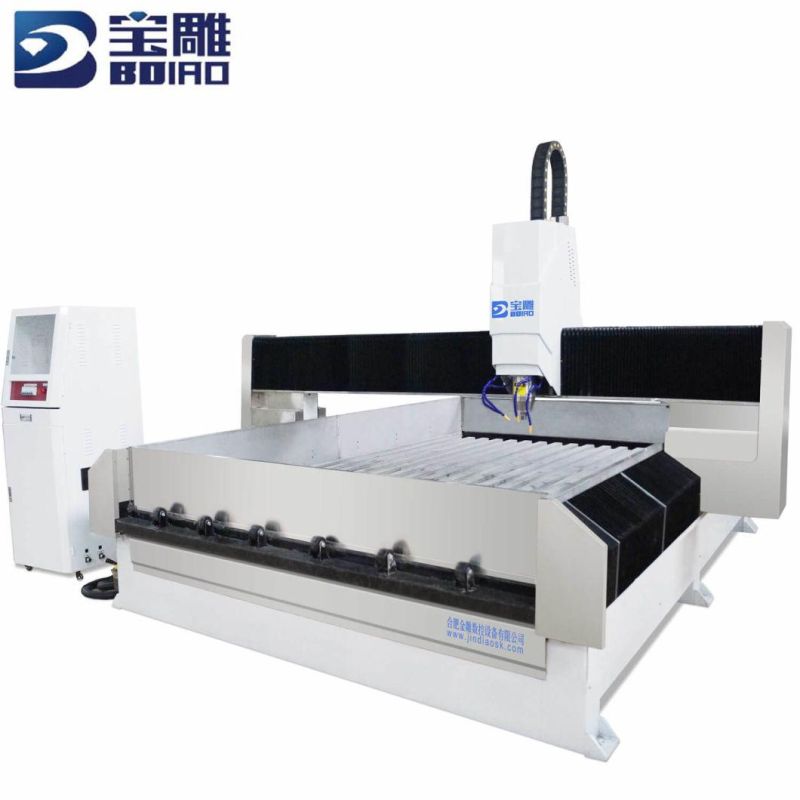

CNC Carving Marble Granite StoneMachine
Keywords: 15 years experience of productionISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:
| Model | BD1325A Heavy Duty Stone CNC Router |
| Machine Structure | Thick steel welded, w/ aging treatment |
| Working Table | Aluminum T-slot table protected with PVC |
| Water Sink/Tank | Powder-painting |
| X/Y/Z Axis Working Area | 1300*2500*300mm |
| Spindle Motor Power | 5.5KW water cooled |
| Spindle Rotational Speed | Adjustable 0-24000 rpm/min |
| Control System | NC Studio/DSP |
| Guide Rail | Taiwan imported linear guide rail |
| Drive System | X/Y axis helical rack & pinion, Z axis Taiwan ball screw(contracting brake for Z axis) |
| Drive Motor | Stepper motor / Yaskawa Servo motor, 750W |
| Inverter | Fuling/ Zoncn |
| Max. Traveling Speed | 25 m/min |
| Max.Working Speed | 15 m/min |
| Resolution | 0.01 mm |
| Tool Shank | Φ 3.175mm,Φ 4mm, Φ6mm, Φ12mm |
| Dictate Format | G-Code / HPGL |
| Cooling System | Circulating water-refluxing design |
| Working Voltage | AC380V 3PH 50HZ |

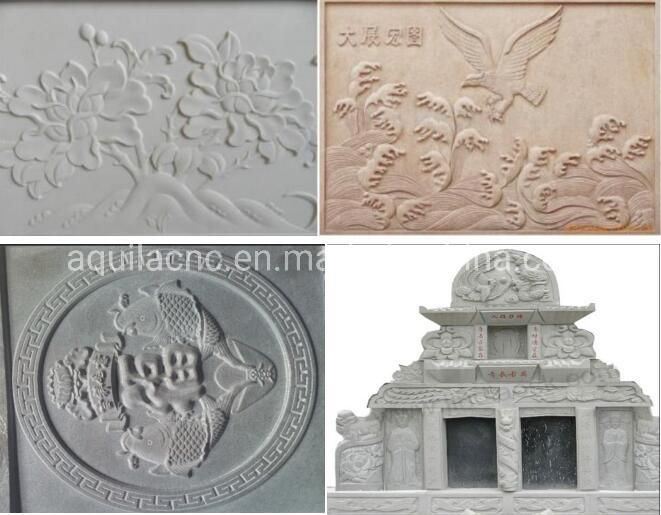

Applicable Scope:
