• Model NO.：BD3020-H
• Certification：CE, ISO, GOST, SONCAP
• Current：AC
• Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
• Customized：Customized
• Transport Package：Wooden Case
• Specification：3000*2000*330mm
• Trademark：Boiro
• Origin：China
• HS Code：84649090
• Production Capacity：300,Month

Basic Info.

Model NO. BD3020-H Certification CE, ISO, GOST, SONCAP Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Transport Package Wooden Case Specification 3000*2000*330mm Trademark Boiro Origin China HS Code 84649090 Production Capacity 300/Month

Product Description

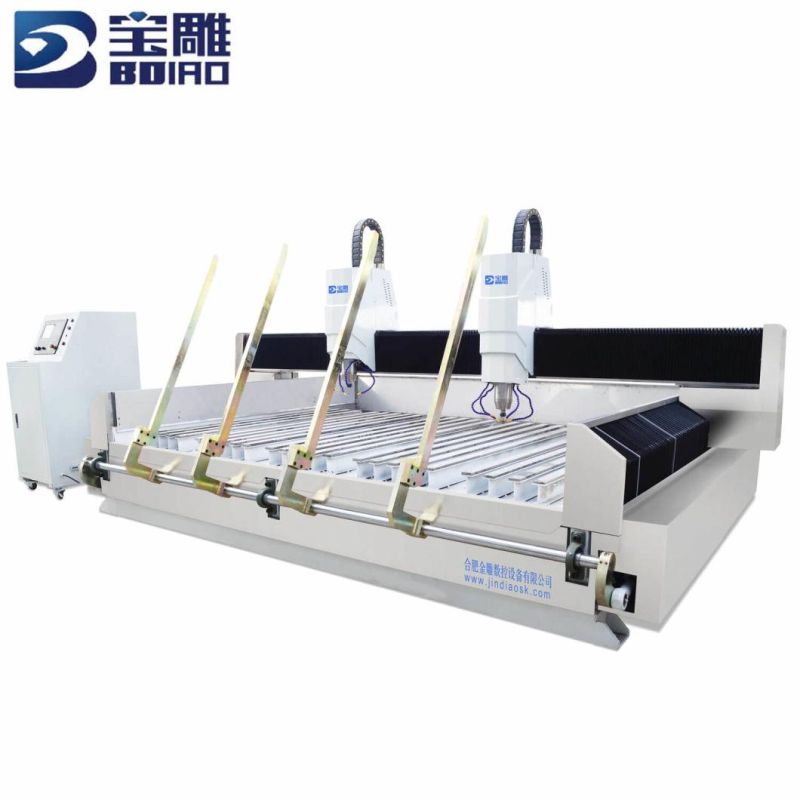

CNC Router machines for stone engraving/CNC Carving Machine
Keywords:  15 years experience of production
                     ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                     Three Brands: Mars, Golden Eagle, Boiro
                     Technicist who go abroad to offer after-sale service




Technical Parameters:


Model	BD3020-H Flip Table Stone CNC Router Machine                         (Other sizes can be customize as your request)
Machine Structure	Thick steel welded, w/ aging treatment
Working Table	Aluminum T-slot table protected with PVC
Water Sink/Tank	Powder-painting (Stainless steel is optional)
X/Y/Z Axis Working Area	3000*2000*330mm
Spindle Motor Power	5.5KW water cooled
Spindle Rotational Speed	Adjustable 0-24000 rpm/min
Control System	NK260
Cooling System	Water Circlation Cystem
Guide Rail	Taiwan imported linear guide rail
Drive System	X/Y axis helical rack & pinion, Z axis Taiwan ball screw
Drive Motor	Stepper motor (Servo motor is optional)
Inverter	Fuling/ Zoncn
Max. Traveling Speed	25 m/min
Max.Working Speed	15 m/min
Resolution	0.01 mm
Dictate Format	G-Code / HPGL
Working Voltage	AC380V 3PH 50HZ
Remark	Hydraulic flip material

Applicable Scope:

Widely used in stone processing industry, tombstone processing industry, mold processing industry,
all kinds of art relief, decoration industry, ceramic processing, advertising industry; be applied for t
he 3D relief of marble, jade, granite, tombstones, milestone, sandstone, ceramic tiles, glass, bluestone
and other stone materials, or for 2D sculpture, cutting, drilling, grinding, polishing, chamfering etc..




Performance Feature:

1.Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability.
2.Famous brand big torque motor, low noise, large power, high efficiency.
3.Adopt imported square linear guide rail, high speed, high precision, long life.
4.Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive,
fast speed, big strength.
5.Reasonable dustproof and waterproof design, fully protect the machine transmission parts.
6.Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/
Mastercam/ JD Paint/ Ucancam, etc..


Package and Shipment:



Company show:

Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province.
Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and t
rading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center,
Woodworking CNC Router, Stone CNC Router, Jade CNC Router,
4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology.

With over 15 years experience and dozens of national patents, our company has passed the
ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise
which Honors Contract and Keeps Promise.



Certificate:



FAQ:

Q1. how to get the most suitable machine and best price?
A1.Please tell me what's material you want to cutting or engraving ?
what's MAX size of carved material ?
Then I will recommend the most suitable model and the best price for you.
Q2. In case of failure,how to do?
A2. Call us----our engineers are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q3. What is the type of shipping and producting time?
A3. we offer EXW, FOB and CIF which you can choose as you like.
when you pay for the pre-payment, we will arrange producting which about 7--15 days.
If you have any doubt, ples contact with me, l will reply for you in time.
