Mars-GM2513 CNC Stone Engraving Machine 1325 Carving 3D Granite Marble Stone CNC Machine
Hefei Aquila CNC Equipment Co., Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：MARS-GM2513
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- X/Y Axis Working Area：2500*1300mm
- Z Axis Working Area：600mm
- Spindle Motor Power：7.5kw,9kw(Optional)
- Spindle Speed：0-12000rpm
- Tools Magazine：8-20PCS
- Tool Shank Diameter：Bt40
- Drive Motor：Yaskawa
- Control System：Syntec,Nc Studio,Mars
- Way of Fixing Workpiece：Suction Cup
- Cooling Method：Round Spray
- ODM/OEM：Yes
- Working Voltage：280,330 V
- Table Structure：Dustproof and Waterproof Design
- Guide Rail：Taiwan
- MOQ：1 PCS
- Transport Package：Wooden Case Package
- Specification：2500*1300mm
- Trademark：Boiro
- Origin：China
- HS Code：84659900
- Production Capacity：300 Sets,Month
Description
OthersDrive System X/Y axis helical rack & pinion, Z axis Taiwan ball screw Guide Rail Taiwan imported linear guide rail PMI Cooling System Circulating water-refluxing design/Round Spray Oil System Automatic Oil system Way of Fixing Workpiece Double-sided sealed vacuum adsorption system Suction cup 8pcs Water and dust resistant Intelligent dust proof cooling system Hand wheel Electric hand wheel Profile polishing wheel Max diameter 150mm Tool magazine 20pcs ATC tool Tool type BT40, Φ35, Φ30 Collet ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20 Vacuum Pump 1*7.5KW Positioning cylinder 6pcs Electric Appliance Germany Schneider Reducer Planetary reducer Working accuracy ±0.08mm Re-positioning accuracy ±0.05mm Max. Traveling Speed 25 m/min Max.Working Speed 15 m/min Water Sink/Tank Powder-painting (Stainless steel is optional) Dictate Format G-Code / HPGL Water consumption 46L/min Air pressure 0.8Mpa Weight 3000KGS Working Voltage AC380V 3PH 50HZ 1 Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability 2 Famous brand big torque motor, low noise, large power, high efficiency 3 Adopt imported square linear guide rail, high speed, high precision, long life 4 Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength 5 Reasonable dustproof and waterproof design, fully protect the machine transmission parts 6 Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc.. 7 The ATC system: linear-type ATC system makes the whole process from the holing ,
cutting, shaping and polishing finished at one go, fully realize high automation 8 Tools and abrasives: a large number of imported and domestic specifications and shapes of tools and abrasives, as well as a variety of processing requirements 9 Vacuum adsorption device with double-sided seal makes the workpiece loading and unloading convenient, fast and accurate, ensuring that the stone is not moved when grinding and polishing 10 The z-axis adopts high-precision imported ball screw drive to ensure the precision. Y axis selection of high - precision gear rack transmission, high speed, big power 11 Adopt gantry structure, stable structure, high stability
Packing and delivery:
Warranty Information:
1.Warranty and Service:
Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.
Technical support: You will also get technical support and service all the lifetime.
(1).Technical support by phone, email or Whatsapp/Skype around the clock.
(2).Friendly manual and operation video online.
(3).Engineer available to service machinery overseas.
2.After sales Services:
(1).Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
(2).You will be able to get free training advice towards our machine in our factory.
(3).You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
3.Quality control:
(1).Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015.
(2).All finished machine we shipped out are 100% strictly tested by our QC department and engineering department.
FAQ Before Ordering:
Q 1. I have no idea which machine can meet my need,what should I do?
A: Please tell the what's material you want to working on ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Then I will recommend the most suitable machine for you.
Q 2. I do not know how to handling CNC Router,what should I do?
A: We will supply you a training video and English handbook to teach you how to operate.Or we will welcome you to arrive China to field-based learning .
Q 3. If my machine has some problems in the warranty period,what should I do?
A: If the machine part broken within warrantry time,we will send new part to you for free.
Q 4.How about your after-sales service ?
A: Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock. And we can arrange technician go to your company to solve problem if neeeded.

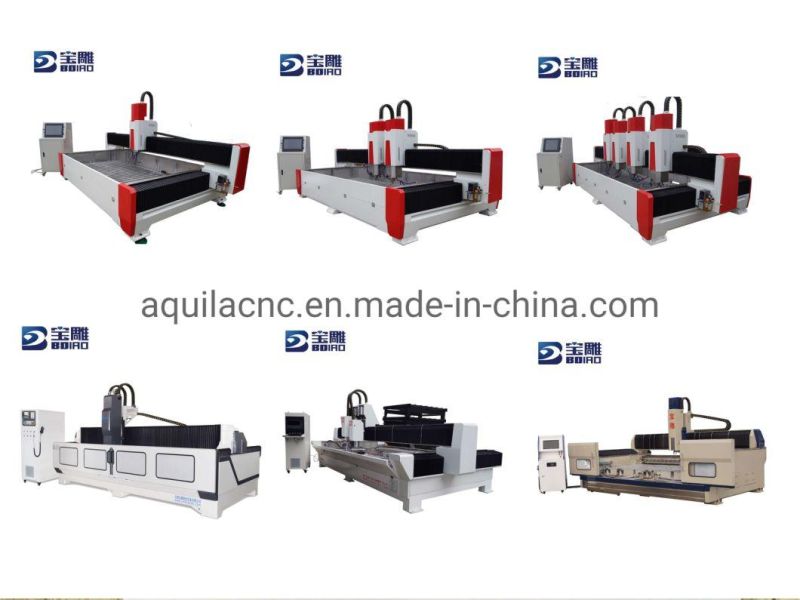

Similar products:

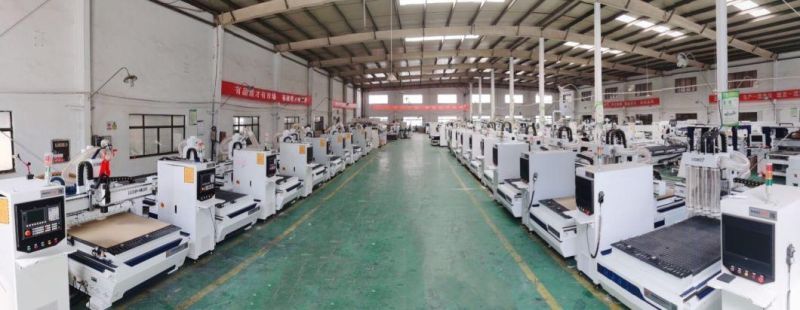

Our company:
Our company is 15 years professional manufacturers of panel furniture production line equipment, CNC cutting machine, five surface drilling, PTP machine, CNC machining center, wood carving machine, stone carving machine, jade carving machine, three-dimensional carving machine, mold machine.
Our certifications:
Why choose Hefei Aquila CNC Equipment Co., Ltd?
1.Our company has 15 years experience of production, and is a set of research and development, manufacturing, sales,and has the national certification of "High-tech enterprises."
2.With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise.
3.We have the professional R&D team and quality control system, to provide you with the most valuable products and services.
4. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.Let you have the most perfect after-sales service.
Our Services:
1. Convenient: 24th Hours sales/After-sales Service online or on the phone.
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market.
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others.
4. According to customers' drawing,customized specifications are welcomed.
5. Low MOQ,small orders can be accepted.
We are searching distributors all over the world. If you have any demands, welcome to contact us and visit our factory.
