• Model NO.：HLQY-3000
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：PLC
• Certification：ISO, CE
• Purpose：Marble and Granite
• Driver：Lead Screw Drive
• Guide：Linear Guide Rail
• Maine Motor Power：55 (6p)
• Max. Blade Diameter：3000mm
• Cross-Beam Type：a,B
• Cross-Beam Length a：8300mm
• Cross-Beam Length B：9300mm
• Cutting Length：3500mm
• Cutting Width：2000mm
• Lifting Stroke：1350mm
• Power of Pump Motor：4kw
• Gross Power：62.3kw
• Gross Weight：14000-15500kg
• Dimension (L x W x H)：7800X5000X4500mm
• Transport Package：Plastic Film Packing
• Specification：7800x5000x4500mm
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641090
• Production Capacity：50PCS,Month

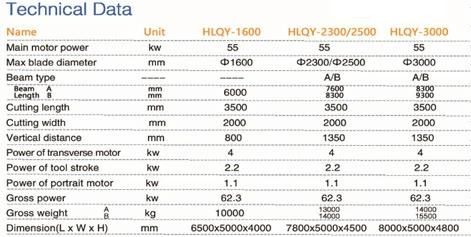

Basic Info.

Model NO. HLQY-3000 Source Voltage 380V Automation Automatic Cutting Ability High Speed Control PLC Certification ISO, CE Purpose Marble and Granite Driver Lead Screw Drive Guide Linear Guide Rail Maine Motor Power 55 (6p) Max. Blade Diameter 3000mm Cross-Beam Type a/B Cross-Beam Length a 8300mm Cross-Beam Length B 9300mm Cutting Length 3500mm Cutting Width 2000mm Lifting Stroke 1350mm Power of Pump Motor 4kw Gross Power 62.3kw Gross Weight 14000-15500kg Dimension (L x W x H) 7800X5000X4500mm Transport Package Plastic Film Packing Specification 7800x5000x4500mm Trademark Hualong Origin Putian, Fujian, China HS Code 84641090 Production Capacity 50PCS/Month

Product Description

HLQY-3000, High Efficiency Multi-blade Stone Cutting Machine

Four cylindrical gantry mutli-blade combination cutting machine adopts diamond tools and high-speed cutting technology, which is suitable for high-efficiently cutting a variety thickness of stone sheet (thickness such as 17mm,20mm,30mm etc).

1, Features:

--Automatic digital control system, the efficiency increased 2 times.

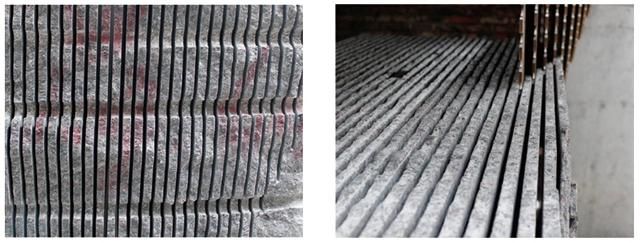

--Wafer cutting, improve resource utilization.

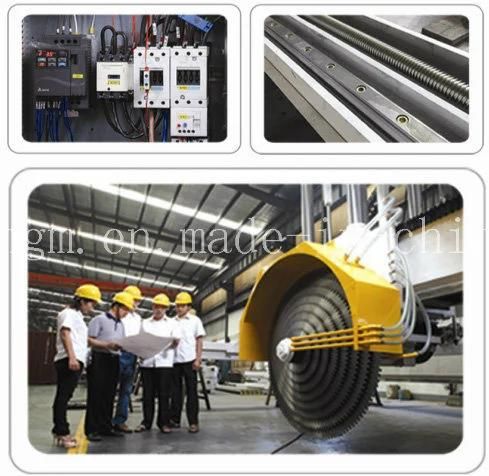

--Linear guide rail, high precision, long life, high-efficient cutting.

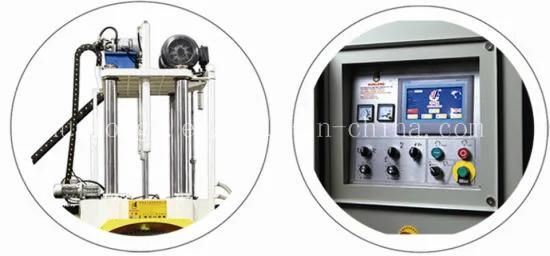

The Machine uses hydraulic lifting systerm and beautiful structure with waterproof, dustproof and anti-spill to improve the service life. Forward-backward slicing used high-precision driving, automatic slicing, main spare parts adopt imported good-quality materials; the block can be placed on the ground directly to enconomize the workbench and its maintenance costs. Thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy operating to suit granite and marble block with high value.

The machine can hang 1-8 piece of specification splate cutting, and can be used to art process and windows, stone composite cutting, and can save the cost of pallet.

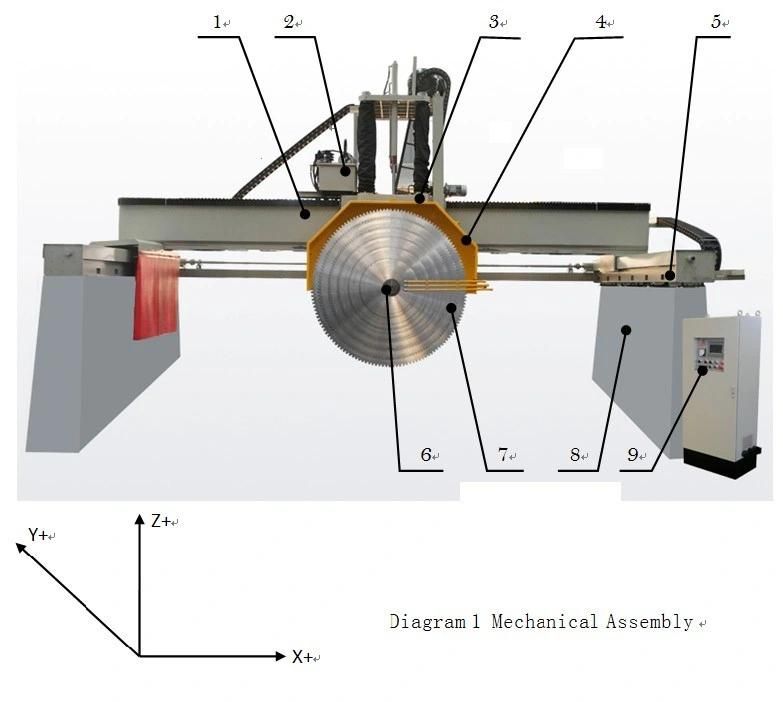

1,Beam Assembly 2,Hydraulic Station 3,Apron Components 4,Water Cover Assembly 5,Stringer Assembly 6,Spindle Box Components 7,BLade 8,Foudation Components 9, Control Panel.

3,Work Restrictions and Power Requirements
Material: granite, marble (Stone Mohs Hardness:2-7.5)
Maximum Moving Speed for Blade in the X-axis:  13m/min,Cutting speed is related to stone material and blade material.
Power Requirements: The power supply must be consistent with the requirements of this machine, Voltage380V,Frequency 50HZ and ensure that the voltage error ranges within±5%.

4,Safety Devices

The machine is equipped with the limit switch, which can control the front and back movement of the tool holder, and the left and right feeding movements to achieve the purpose of safe use.
