• Model NO.：QSQ-2800,2200,2500,3000
• Control：Automatic
• Certification：API, ISO, CE
• Maximum Diameter of Blade：2200
• Maxium Number of Blade：9PCS
• Main Motor Power：55kw
• Max Cutting Size：3600*2100*1250
• Transport Package：1 Set Machine in One 40 Gp Container
• Specification：8000*4000*5500
• Trademark：WANLONG
• Origin：Quanzhou
• HS Code：846410000
• Production Capacity：80sets,Month

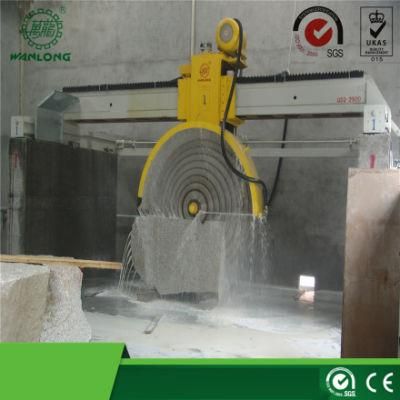

QSQ Mutiblade block cutters

lTechnical parameter     Item QSQ-2200 QSQ-2500QSQ-2800Max. blade diameter2200mm2500mm2800mmMax. cutting length3200 mm3000 mm3000 mmMax. cutting width 1800 mm1800 mm2100 mmMax. cutting height 950 mm1100 mm1250 mmMax. No. of blades8(for reference)5(for reference)1Suggestion on Muti-blades2200mm, 2000mm,           1800mm, 1600mm,2500mm,2000mm2800mm1400mm, 1200mm,1600mm,1200mm1000mm, 800mm800mmMain motor power45 kw45 kw37 kwPower requirement3 Phs 380V 50Hz(other is available)  Overall dimension 7300X3800X550 07300X3800X550 07300X3800X610 0(LxWxH)/mm(LxWxH)/mm(LxWxH)/mmWater consumption6m³/h6m³/h6m³/hTotal Weight10,000 kg11,000 kg12,000 kg





Company Information

Wanlong has dedicated to stone cutting and stone application since 1993.    Today, average of 100,000 pieces of Wanlong diamond tools are exported to the world every day. Insisting on technological innovation, we continue to create more efficient and more cost-effective diamond tools. We have developed laminated stone panel. Our mission is bridging nature and human culture.

Three branches: diamond tools. Stone processing machinery and Composited stone panels industry make Wanlong today's success.

Patent

With 13 patents by Wanlong Stone Co., Ltd (2 Invention Patents, 10 New Practical Patents, and 1 Exterior Patent)

In 2003
Obtaining the patents for "Decoration Stone Panel ", " Stone-Panel-Laminated Vanity Top", " Aluminum Stone Panel" and the " Stone Slabs with Anchors"
In 2004Obtaining the patents for " Fiberglass Stone Panel ", " Stone-Panel-Laminated Countertops", " Improved Stone-Panel- Laminated" and the " Fire-proof Stone Panel for Decoration"
In 2005Obtaining the patents for "New Stone-Panel-Laminated for Decoration "," Connection Device Laminated Stone Panel on Exterior-Wall" and "New Aluminum Stone-Panel-Laminated"
In 2007obtaining the patents for"The Honeycomb Aluminum Stone Panel" and "The Decoration Structure with the Honeycomb Aluminum Stone Panel Laminated"
In 2009Being Authorized with the Invention Patent for the Anti-shedding super-thin Laminated Stone Panel
Certifications
