Bridge Single Head Automatic Polisher
Fujian Wanlong Diamond Tool Co., Ltd.- Type：Stone Polishing Machine
- Control：CNC
- Automation：Automatic
- Precision：High Precision
- Application：Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Marble, Coarse & Fine Grinder
- Type for Grinding Machine：Disc Grinding Machine
Base Info
- Model NO.：QDM-900 1200 1800
- Grinding Machine Type：Granite Polishing Machine
- Grinding Method：Wet Grind
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, Stone Machine
- Condition：New
- Main Motor Power：15kw
- Voltage：220,380,415V
- After Sales Service Provide：Engineer Available Service Machinery Overseas
- Warranty：12 Months
- Max. Processing Size：3000X1800X120mm
- Max. Heads No.：1 Head
- Water Consumption：4 M3,H
- Approximate Weight：3 Tons
- Transport Package：Seaworthy Wooden Case for Automatic Cutting Machin
- Specification：6500X3100X2000mm
- Trademark：Wanlong
- Origin：China
- HS Code：84642000
- Production Capacity：5000sets Per Year
Description
Basic Info.
Model NO. QDM-900 1200 1800 Grinding Machine Type Granite Polishing Machine Grinding Method Wet Grind Certification API, CCC, UL, SONCAP, GOST, ISO, CE, Stone Machine Condition New Main Motor Power 15kw Voltage 220/380/415V After Sales Service Provide Engineer Available Service Machinery Overseas Warranty 12 Months Max. Processing Size 3000X1800X120mm Max. Heads No. 1 Head Water Consumption 4 M3/H Approximate Weight 3 Tons Transport Package Seaworthy Wooden Case for Automatic Cutting Machin Specification 6500X3100X2000mm Trademark Wanlong Origin China HS Code 84642000 Production Capacity 5000sets Per YearProduct Description

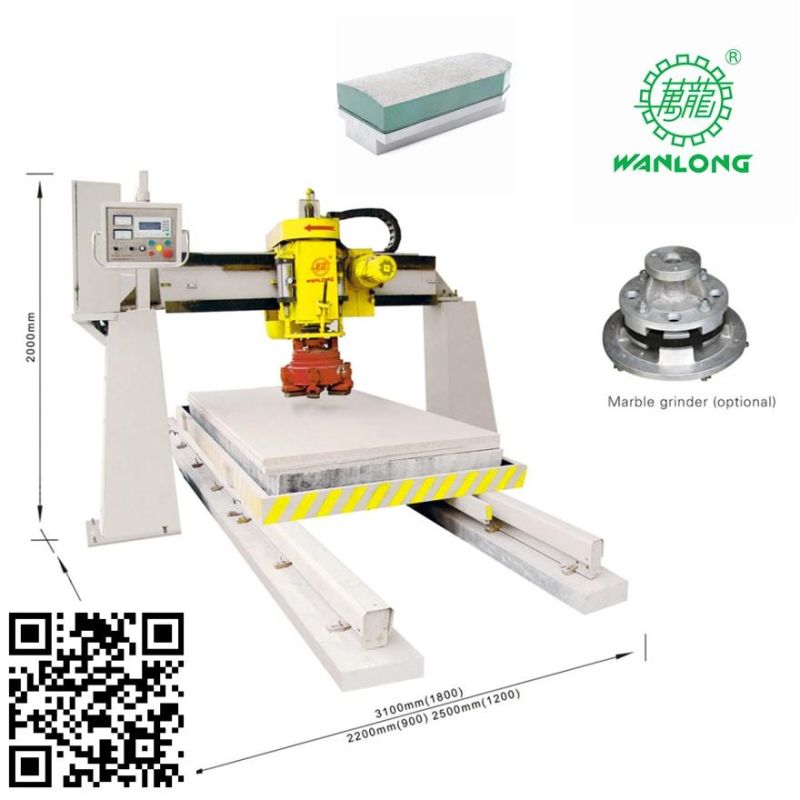

QDM900/1200/1800 Bridge Single Head Automatic Polishing Machine| Model | QDM-900 | QDM-1200 | QDM-1800 | |
| Main motor power | mm | 15 | 15 | 15 |
| R.P.M. of polishing head | r/min | 560 | 560 | 560 |
| Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
| Lengthways feeding speed of polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
| Supplied by user | Mpa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
| Required air source | m3/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
| Production capacity | m2/h | 2-2.5 | 2.5-3 | 3-3.5 |
| Max. polishing size (LxWxH) | mm | 3000x900x120 | 3000x1200x120 | 3000X1800X120 |
| Water consumption | m3/h | 4 | 4 | 4 |
| Approximate weight | kg | 2000 | 2500 | 3000 |
| Overall dimensions (LxWxH) | mm | 6500x2200x2000 | 6500x2500x2000 | 6500X3100X2000 |
Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4. Touch sensitive Panel Easy for worker to operate.
5. 3-3.5sqm per hour for medium hard granite.
6. 12 months warranty
