• Model NO.：Edge cutting machine
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, All Certificates Available
• Main Motor：Siemens 18.5,22kw
• Program：Computerized by Panasonic PLC
• Converter：Panasonic
• Relay：FUJI

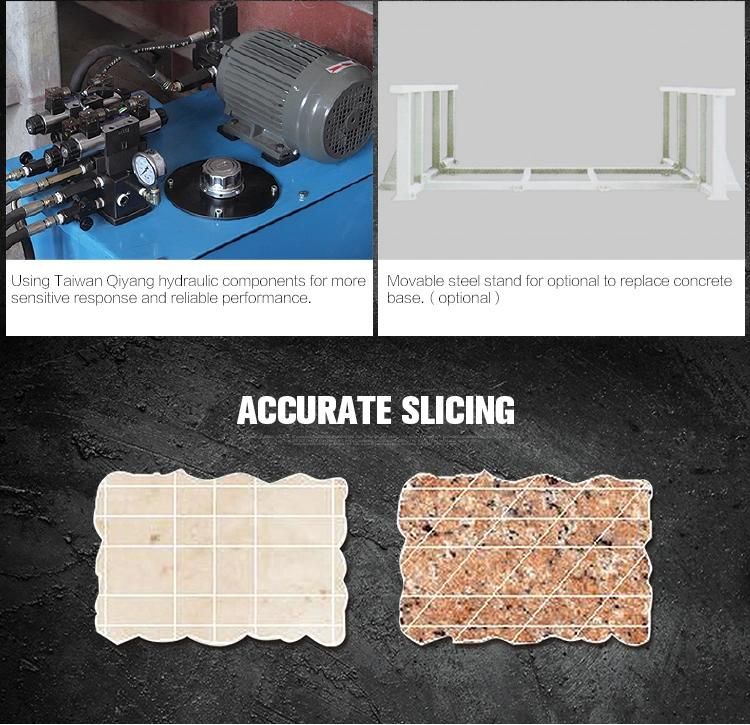

• Hydraulic：Taiwan Brand
• Cutting Taper：3200X2000X180mm
• Maximum Cutting Size：100-200sqm,Shift
• Blade Diameter：350-600mm
• Worktable：90,360 Degree Rotating
• Slicing：Magnetic Grid System
• Transport Package：Sea Worthy and Train Worthy Packaging
• Specification：Big machine high duty structure made by cast iron
• Trademark：WANLONG
• Origin：China
• HS Code：8464101000
• Production Capacity：100sets,Month

Basic Info.

Model NO. Edge cutting machine Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, All Certificates Available Main Motor Siemens 18.5/22kw Program Computerized by Panasonic PLC Converter Panasonic Relay FUJI Hydraulic Taiwan Brand Cutting Taper 3200X2000X180mm Maximum Cutting Size 100-200sqm/Shift Blade Diameter 350-600mm Worktable 90/360 Degree Rotating Slicing Magnetic Grid System Transport Package Sea Worthy and Train Worthy Packaging Specification Big machine high duty structure made by cast iron Trademark WANLONG Origin China HS Code 8464101000 Production Capacity 100sets/Month

Product Description

Product Description

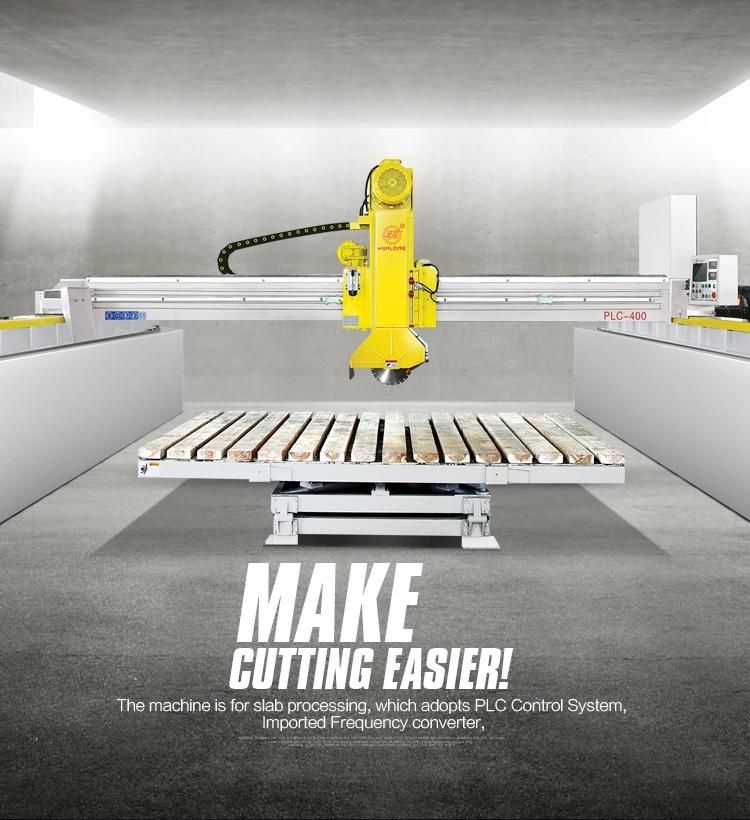

PLC-400/600/700  Laser Bridge Cutting Machine

The machine is for slab processing, which adopts PLC Control System, Imported Frequency converter, Precise Signing Laser etc for automatic function and guarantee its precise and stable cutting.

Technical Parameters

Model	Unit	PLC-400	PLC-600	PLC-700
Max. diameter of blades	mm	400	600	700
Main motor power	KW	15	15	18.5
Table dimension	mm	3200x2000	3200x2000	3200x2000
Table tilting degree	n°	85	85	85
Table rotating degree	n°	90/360	90/360	90/360
Overall dimensions(L x W x H)	mm	6000x4800x2800	6000x4800x2800	6000x5500x3360
Maximum cutting size	Kg	3200x2000x80	3200x2000x180	3200x2000x230



Configuration

1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Positioning device, laser etc.
4. Strong cast iron HT200.

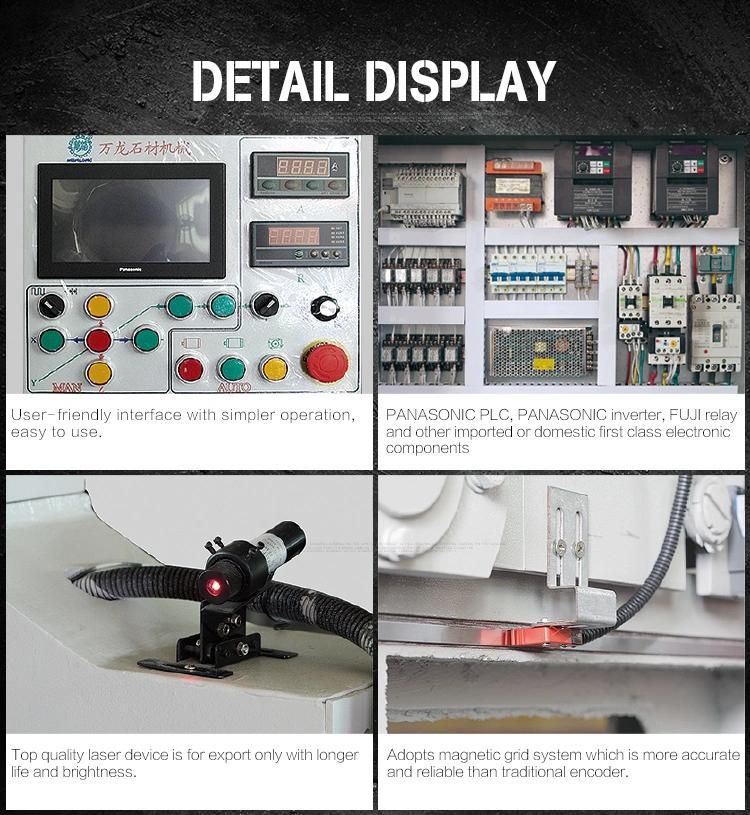

5. Touch sensitive Panel Easy for worker to operate.
6. 380-400sqm/ 10hrs for medium hard granite with 10-20mm thicknes.

Feature

- Guide rail is oil impregnated and protected from water and dust
- Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
- Horizontal movement of the crossbeam is driven by SIEMENS motor equipped with OMRON rotary encoder by which the precision is guaranteed
- Worktable can tilt 0-85°, and rotate 0-360°

CONTACT

Wanlong Group

We are a leading stone machinery and diamond toolds manufacturer and exporter with a monthly turnover of 5 million US dollars. Our products are rigorously tested not only in our own laboratory to ensure the best performance, but also proved by our 2100 clients from 108 countries.

Our Diamond tools and stone machinery are available for all types of natural stones, including granite, marble, limestone, sandstone, travertine, etc.

Diamond tools:Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 10 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.

Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).

Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 18 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

For more information, pls contact with us or visit our website: wanlonggroup.en.made-in-china.com .
