1325/2030 CNC 3D Stone Engraving Machine, Stone Carving CNC Machine

Jinan Dwin Technology Co., Ltd.
  • Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material：Stone, Granite, Marble etc.
  • Automation：Automatic
  • Control：CNC
  • Motor Power：380V,50Hz
  • Engraving Head Speed Adjustability：Wide Adjustable Range

Base Info

  • Model NO.：DW1325
  • Certification：CE, ISO, CCC
  • Current：AC
  • Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized：Customized
  • X,Y Working Area：1300mmx2500mm
  • Z Working Area：>120mm
  • Resolution Ratio：0.005mm
  • Drive Motor：Stepper
  • Tramsmission：Xy Gear Rack, Z Ball Screw
  • Machine Warranty：2 Years for Machine Body
  • Z Structure：Hiwin Rail Linear Bearings and Ball Screw
  • Running Environment Temperature：0 - 45 Centigrade
  • Relative Humidity：30% - 75%
  • Flash Memory：128m(U Disk)
  • Transport Package：Plywood Box, Free of Fumigation
  • Specification：Machine can be customized
  • Trademark：Dwin
  • Origin：Jinan City, China
  • Production Capacity：500 Sets Every Year

Description

SPECIFICATIONS FOR WW1530M STONE CARVING MACHINENO.DescriptionParameter1X,Y,Z Working Area1500x3000x200mm2Table Size1750×3540mm3X,Y,Z Traveling Positioning Accuracy±0.03/300mm4X,Y,Z Repositioning Accuracy±0.03mm5FrameWelded Structure7X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings8Z StructureHiwin Rail Linear Bearings and Ball Screw9Max. Engraving Speed3000mm/min10Spindle power4.5 Or 6KW14Drive MotorsStepper System 15Working VoltageAC380V/50/60Hz,3PH (Option: 220V))16Command LanguageG Code17Operating SystemDSP System (Options: Ncstudio/Mach3 PC Software)18Computer InterfaceUSB19Flash Memory128M(U Disk)

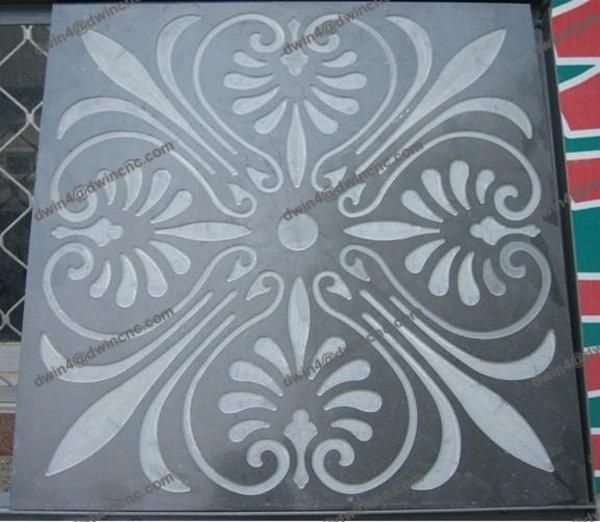

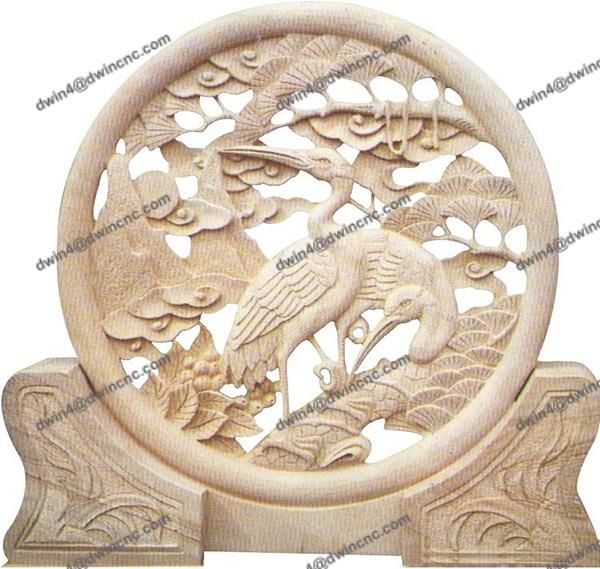

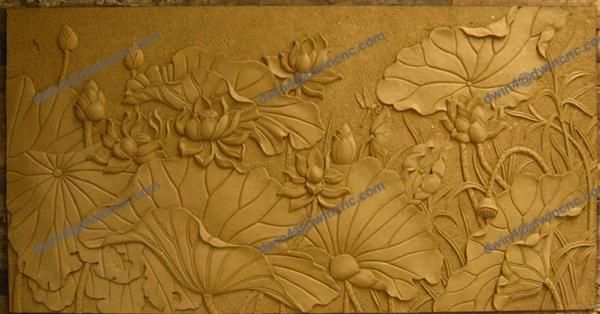

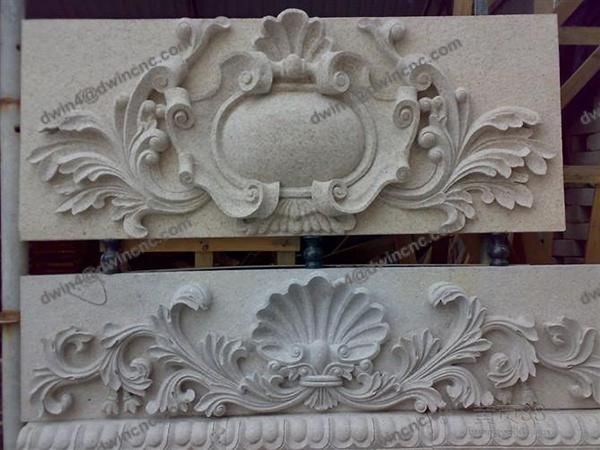

Machine application
Stone Carving Machine is suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.
1325/2030 CNC 3D Stone Engraving Machine, Stone Carving CNC Machine

1325/2030 CNC 3D Stone Engraving Machine, Stone Carving CNC Machine
1325/2030 CNC 3D Stone Engraving Machine, Stone Carving CNC Machine
1325/2030 CNC 3D Stone Engraving Machine, Stone Carving CNC Machine
Advantages
1.)Machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better.
2.)Dual motor drive for Y-axis, moving stably.
3.)Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9.
4.)Constant spindle motor power, strong cutting strength, high efficiency.
5.)High precision rack transmission, fast speed.
6.)Imported linear square guide way, double row four row slider, high precision, long life time.
7.)Well selected electrical accessory, let the failure rate to the minimum.
8.)With water and automatic water supply and cooling system.
9.)Dustproof and waterproof design, better to protect the machine driving part.
