Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650

Fujian Province Hualong Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Automatic Mono Bc

Base Info

  • Model NO.：HLSQ-650
  • Usage：Ceramics, Granite, Marble
  • Application：Art & Craft, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：Siemens PLC
  • Certification：ISO, CE
  • Color：Red and Ivory
  • Head Rotate 4 Positions：0,90,180,270degree
  • Head Tilting Position：45,90 Degree
  • Table Rotate：0-360 Degree
  • Table Tilt：0-85 Degree

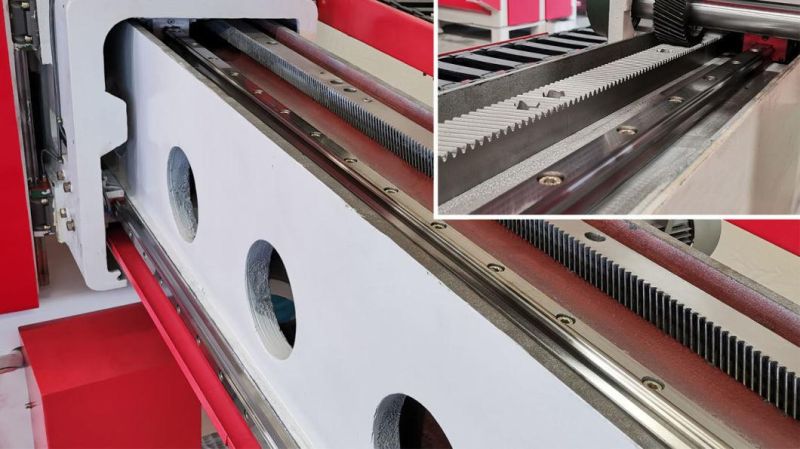

  • Guide Rail：Hiwin Linear Guide
  • Gearing：Rack Gear

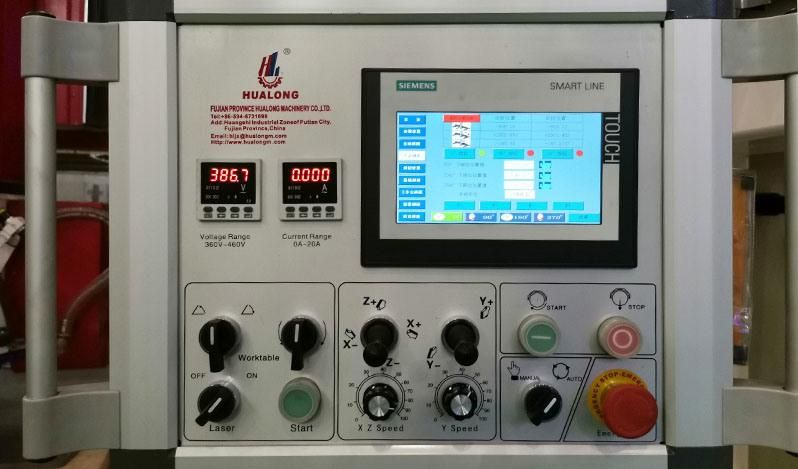

  • Touch Screen：Siemens
  • Maximum Cutting Depth：200mm

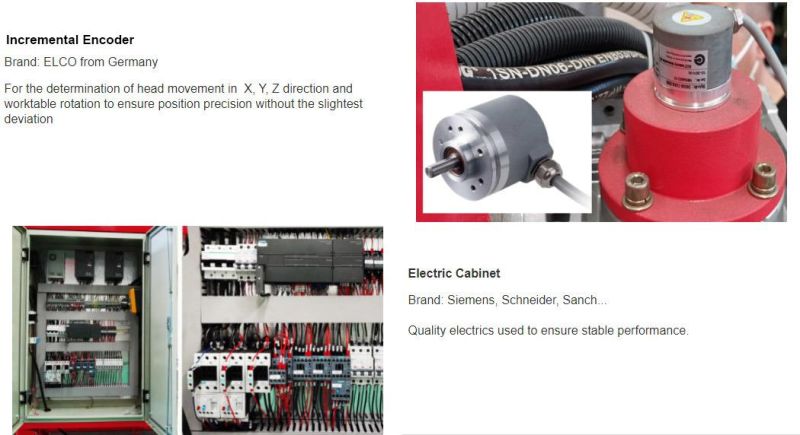

  • Main Elctric Components：Schneider and Siemens Brand
  • PLC：Siemens
  • Structure：Intergrated Machine
  • Machine Type：Mono Bridge Saw
  • Cutting：Automatically
  • Remoter：with Remoter Control
  • Transport Package：Plastic Packing
  • Specification：Working Area: 3300*2000mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641010
  • Production Capacity：50 Pieces,Month

Description

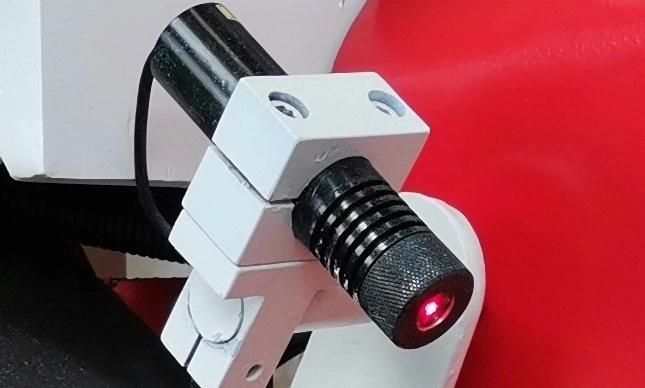

Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650Laser Reticule Apparatus
 Origin: China

Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.






Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650
Other Advantages

1) 25 years + experience professional on making stone machines.

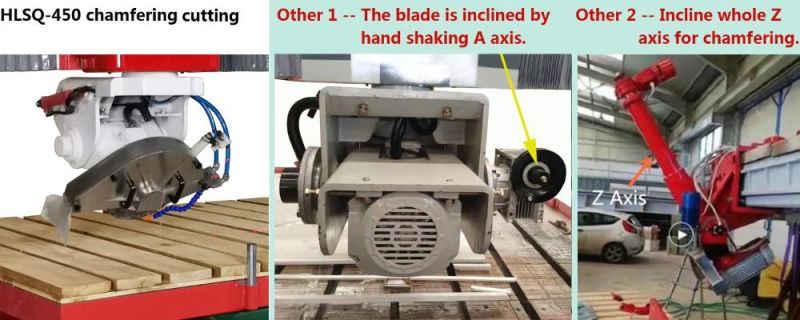

2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.

Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650

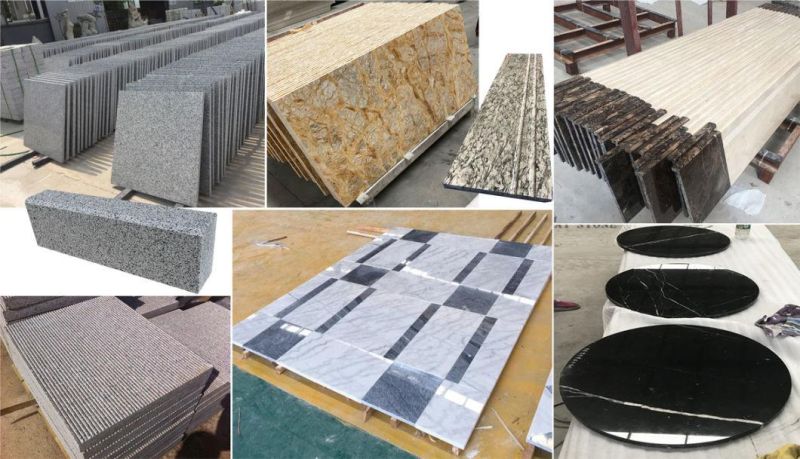

Application

* Slab cutted to square size or other polygonal
* Round desktop processing
Bridge Cutting Machine Granite High Quality Infrared Automatic Mono Bridge Stone Cutting Machine Hlsq-650

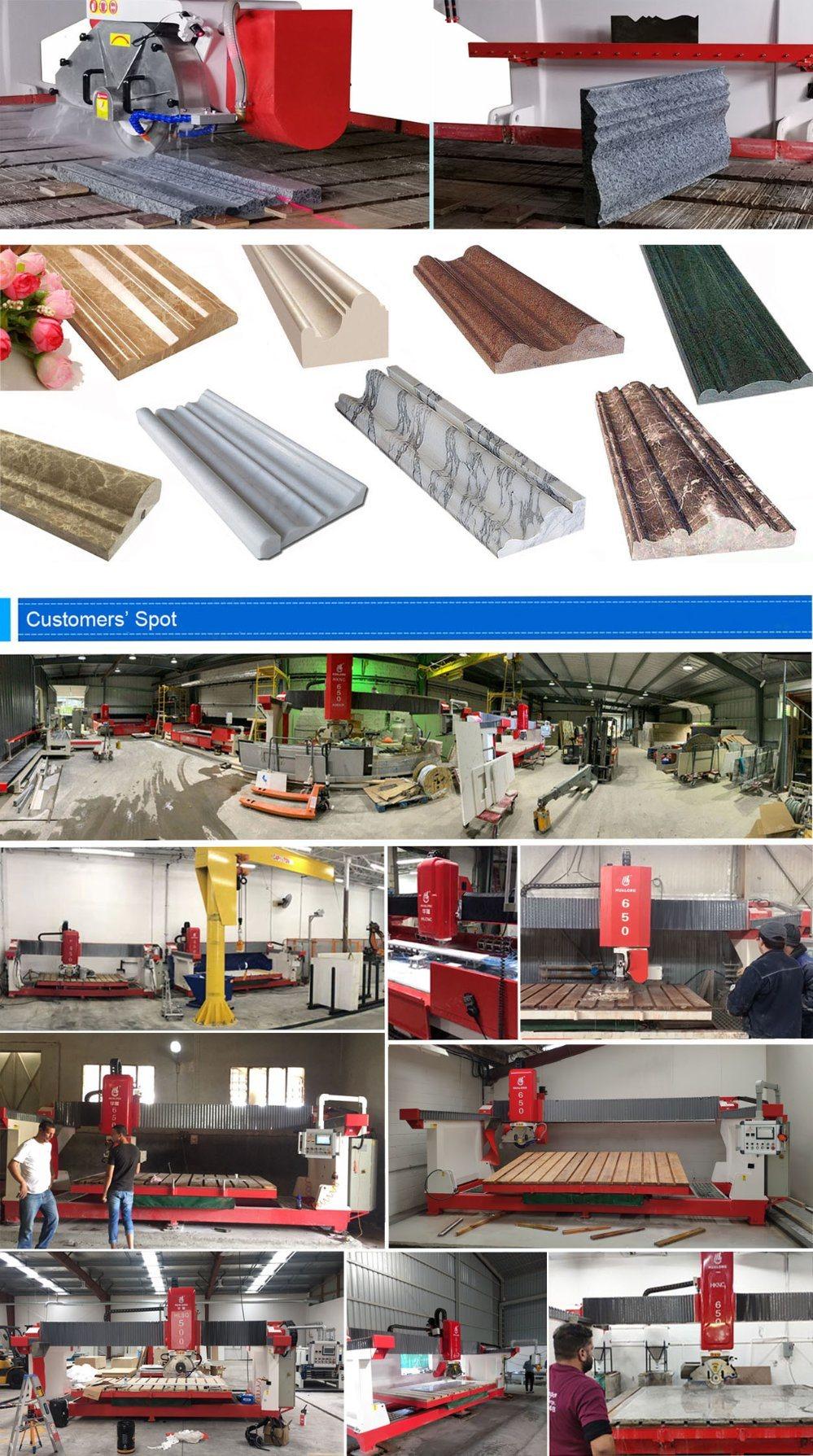

* Profiling Cutting (optional)
According to customer requirements, this machine can be equipped with profiling module to achieve profiling cutting function, used for processing special-shaped stone lines, decorating door frames, windows, columns and walls, etc.
