Infrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting Machine

Fujian Province Hualong Machinery Co., Ltd.
  • Warranty：1 Year
  • Type：Automatic Mono Bc

Base Info

  • Model NO.：HLSQ-650
  • Usage：Ceramics, Granite, Marble
  • Application：Art & Craft, Stone Industry
  • Source Voltage：380V
  • Automation：Automatic
  • Cutting Ability：High Speed

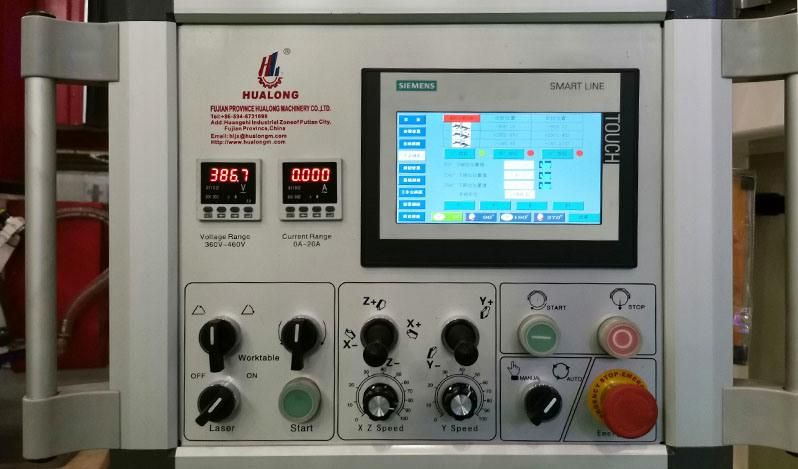

  • Control：Siemens PLC
  • Certification：ISO, CE
  • Color：Red and Ivory
  • Head Rotate 4 Positions：0,90,180,270degree
  • Head Tilting Position：45,90 Degree
  • Table Rotate：0-360 Degree
  • Table Tilt：0-85 Degree

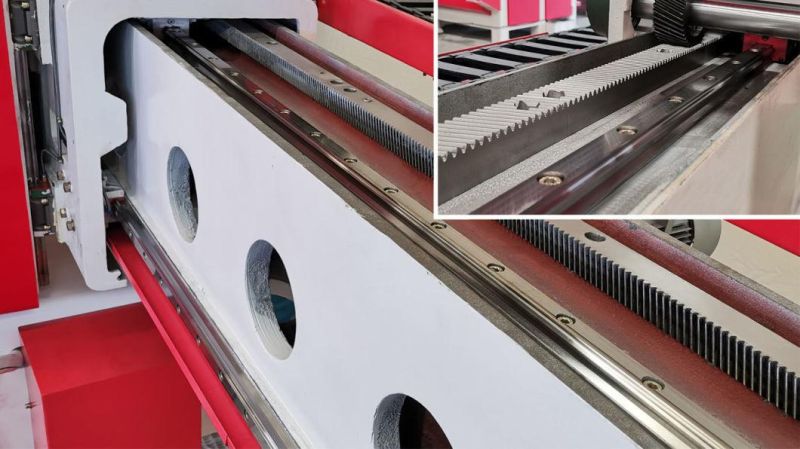

  • Guide Rail：Hiwin Linear Guide
  • Gearing：Rack Gear
  • Touch Screen：Siemens
  • Maximum Cutting Depth：200mm
  • Main Elctric Components：Schneider and Siemens Brand
  • PLC：Siemens
  • Structure：Intergrated Machine
  • Machine Type：Mono Bridge Saw
  • Cutting：Automatically
  • Remoter：with Remoter Control
  • Transport Package：Plastic Packing
  • Specification：Working Area: 3300*2000mm
  • Trademark：Hualong
  • Origin：Putian, Fujian, China
  • HS Code：84641010
  • Production Capacity：50 Pieces,Month

Description

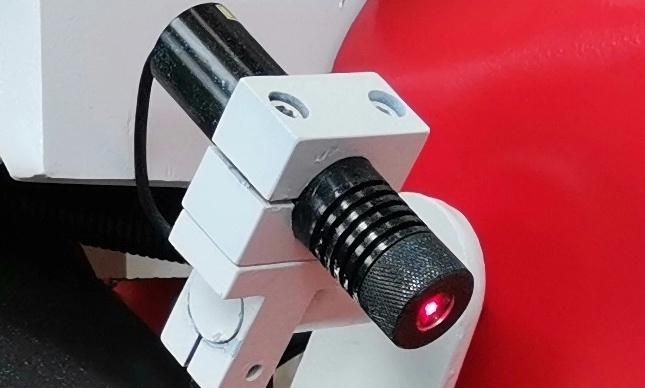

Infrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting MachineInfrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting MachineInfrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting MachineLaser Reticule Apparatus
 Origin: China

Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.






Infrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting Machine
Other Advantages

1) 25 years + experience professional on making stone machines.

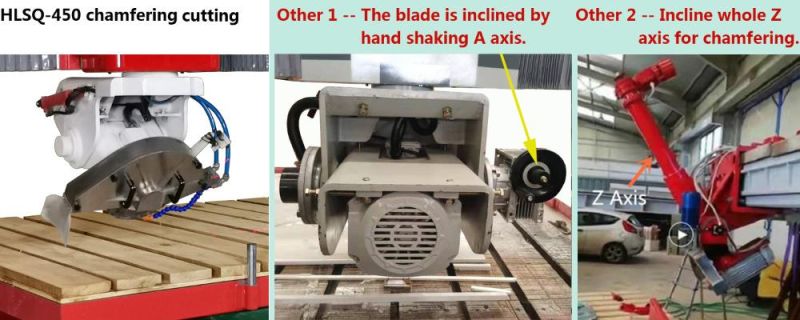

2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.4) For chamfering cutting, the blade tilt of HLSQ-650 is controled by PLC, which cutting is accurate. While the other two ways as showed below, the cutting is less accurate, not good for cutting thin slab.

Infrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting Machine

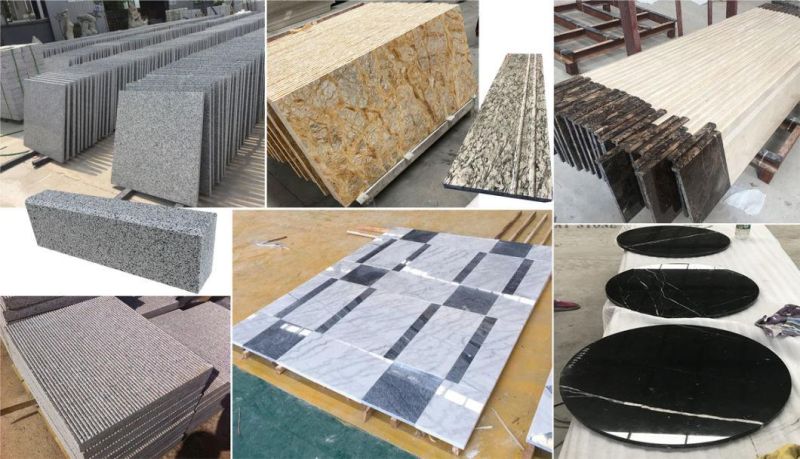

Application

* Slab cutted to square size or other polygonal
* Round desktop processing
Infrared Stone Cutting Machine for Granite & Marble (HLSQ-650) , Bridge Stone Cutting Machine

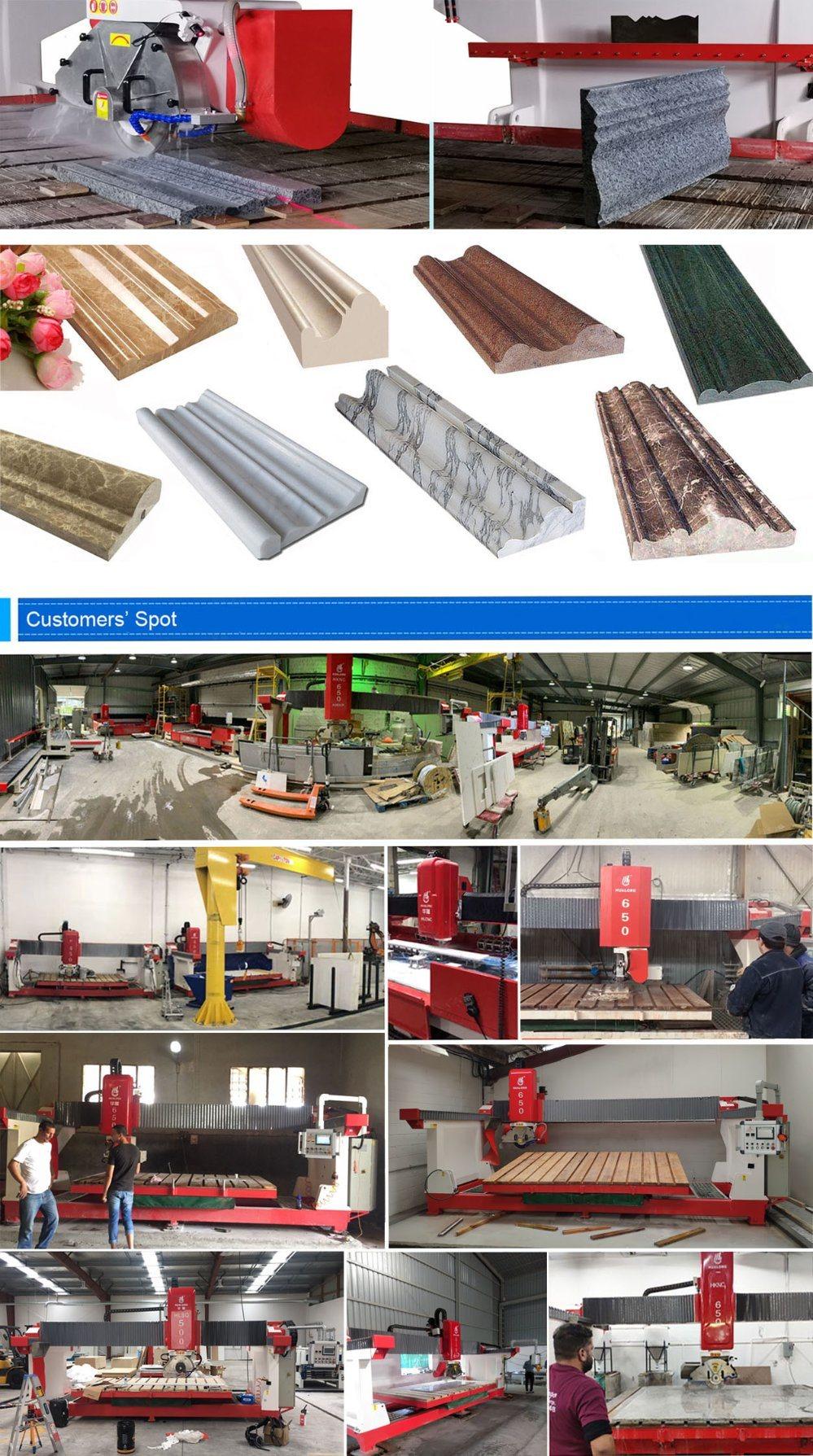

* Profiling Cutting (optional)
According to customer requirements, this machine can be equipped with profiling module to achieve profiling cutting function, used for processing special-shaped stone lines, decorating door frames, windows, columns and walls, etc.
