• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Max.Length of Cutting (Table Size)：3200*2000mm
• Max Cut Thick：170mm
• Table Tilts for Materials Loading：0-85 Degree
• Table Rotaion：0-360 Degree Stopped Any Postion
• Blade Tilts for Miter Cuts：0-45 Degree
• Blade Size：400-625mm
• Power of Spindle Moto：15 Kw 20HP
• Dimention(L*W*H)：6*5*2.6m
• Repeat Cutting：99 Repeat Cutting by Program
• Transport Package：Plastic Monoblock Packing
• Specification：Weight: 1500kg
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Max.Length of Cutting (Table Size) 3200*2000mm Max Cut Thick 170mm Table Tilts for Materials Loading 0-85 Degree Table Rotaion 0-360 Degree Stopped Any Postion Blade Tilts for Miter Cuts 0-45 Degree Blade Size 400-625mm Power of Spindle Moto 15 Kw 20HP Dimention(L*W*H) 6*5*2.6m Repeat Cutting 99 Repeat Cutting by Program Transport Package Plastic Monoblock Packing Specification Weight: 1500kg Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

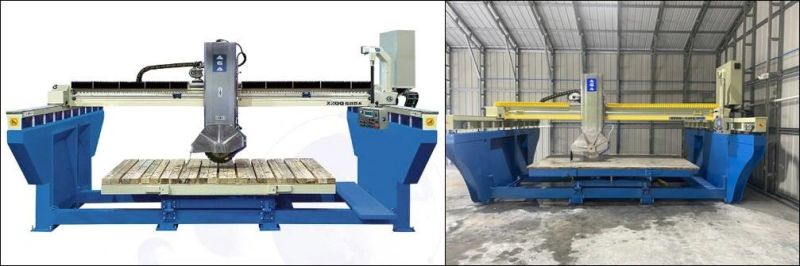

High Tech Granite Bridge Saw with 45 Degrees Miter Cut Cutting Countertops Automatically
Product No. XZQQ625A
The automatic stone bridge saw XZQQ625A is monoblock made with full functions, including strong steel frame, pendant control panel, color touch screen, wireless remote, laser guide, tilting blade, tilting and rotation table, hydraulic pump, etc. This saw is controlled by microcomputer and the blade tilting provides 45 degree very excellent in cutting granite marble stones.

Maximize your granite and marble production with the Monoblock Stone Bridge Saw.
Automatic infrared bridge saw preferable for cutting granite, marble, quartz and engineered stones. Applicable for cutting and fabricating slab, counter tops, vanity top, etc.


Granite bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

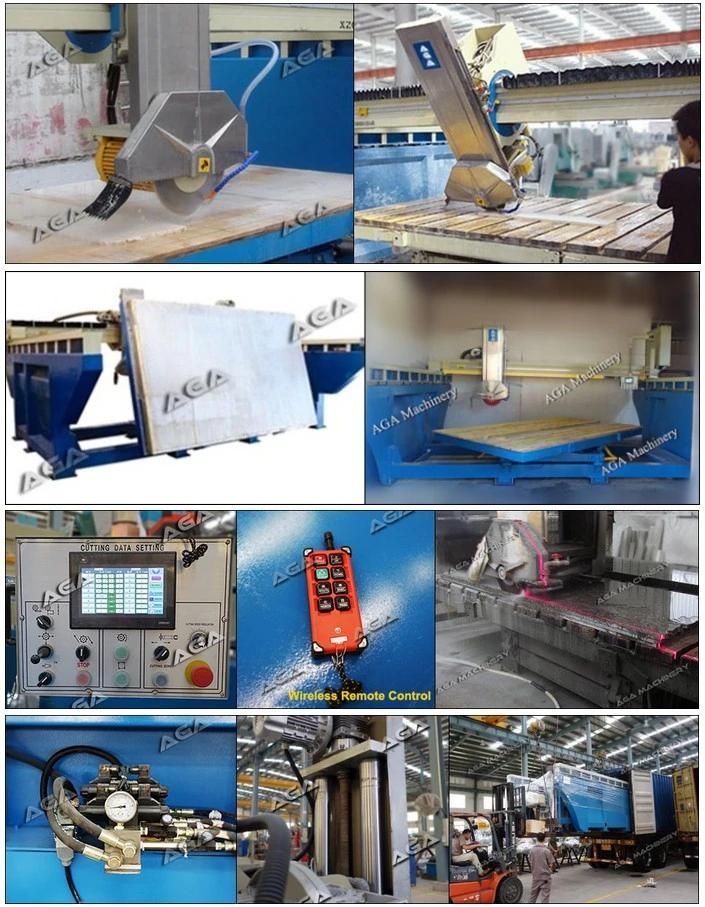

Granite bridge saw  introduction with pics:
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
Bridge saw tilting head provides 0°-45°for miter cut very excellent performance in cutting and fabricating stones. The max.cut size of stone can be 3200 × 2000mm×170mm in Length× Width×Thickness.
Main structures of the stone bridge saw are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It rotates 0°-360° stopping automatically at 45°, 90° and any angle for changing cutting position.
Automated programming, it is PLC control, electric system is very simple and easy to operate. All functions are operated on the color touch screen control panel with live data. Besides, wireless remote provides easy control of the saw making its users very friendly.
This sawis an full automatic laser cutting machine. Laser guide shows precision cutting every time in +/-0.2mm making beautiful slabs, tiles, counter tops, etc. Automatic water control saving every drop.

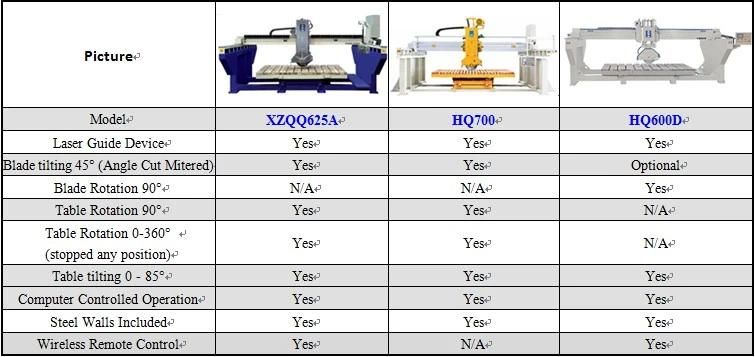

Related stone bridge saw products:



FAQ:1) Payment:
T/T in advance, we accept 30% deposit and 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
Stone bridge saw, granite bridge saw, granite saw, bridge saw, stone sawing machine, granite sawing machine, granite cutting machine, slab saw, stone saw, cnc machine, cnc cutting machine, countertops cutting machine, slab cutting machine, tile cutting machine, tile cutter, etc.


About AGA Machinery:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.


If you have any questions please feel free to inform us, we're more than happy to serve you!
