• Model NO.：XZQQ625A
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：170mm
• Table Tilting：0-85 Degree Vertically
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cuts
• Transport Package：Plastic Monoblock Packing
• Specification：Dimention: 6*5*2.6m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84641010
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. XZQQ625A Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Cut Length 3200mm Cut Width 2000mm Cut Thick 170mm Table Tilting 0-85 Degree Vertically Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cuts Transport Package Plastic Monoblock Packing Specification Dimention: 6*5*2.6m Trademark AGA Origin Xiamen, China HS Code 84641010 Production Capacity 200 Sets/Month

Product Description

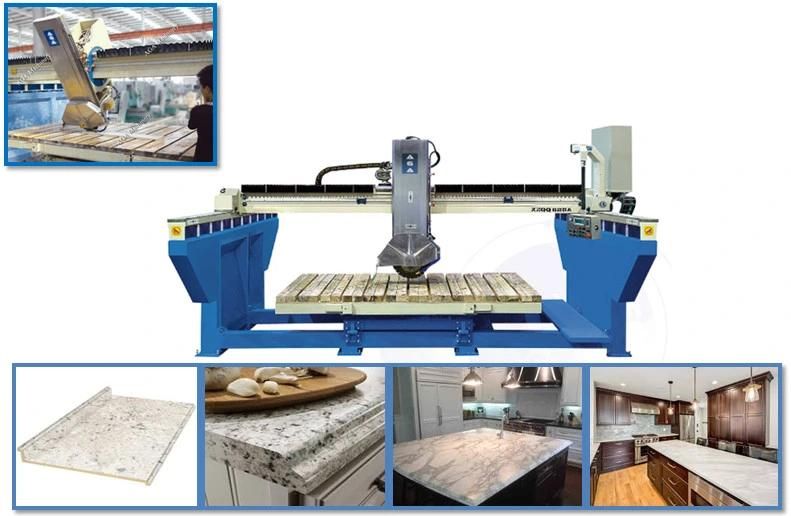

Robust CNC Machine Granite Bridge Saw for Fast and Easy Cuts on Countertops
Product No.XZQQ625A
Stone bridge saw XZQQ625A is featured with high cutting efficiency, high cutting precision, high stability, easy to operate.Main structures are made of very strong cast iron for stable running and stainless steel for protection. A robust saw preferable for cutting granite marble quartz and other stone materials.

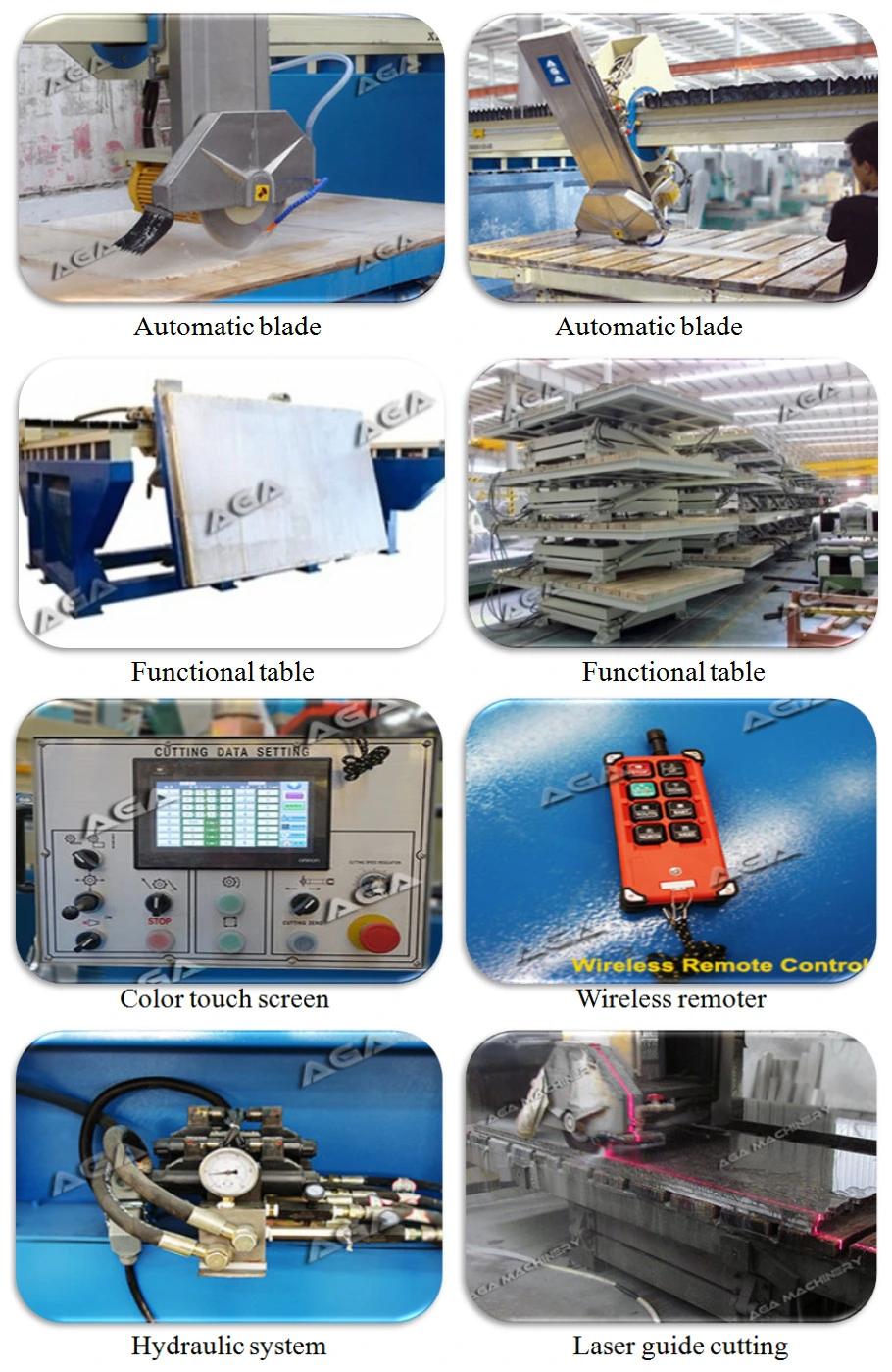

CNC Machine/granite marble bridge saw features:
Monobloc structural frame is easy for loading, transportation and installation. Electric components and parts adopts good international brand, reliability guaranteed.
Bridge saw head tilts 0-45 degrees for miter cutting, excellent performance in cutting kitchen tops.
Worktable titls 0-85 degrees for easy load of stone materials, and it turns automatically stopping at any angle for different cutting position easily.
Bridge saw togethering with ultra-high precision rotary encoder positioning and infrared device, making every slab cutting beautifully.
Wireless remote provides easy control of this saw.

CNC machine/granite marble bridge saw technical parameters:

Blade size	400 - 625 mm   16" - 25"
Cut length	3200 mm    126"
Cut width	2000 mm    78.7"
Cut thick	170 mm     6.7"
Blade tilt	0 - 45°
Table rotate	0 - 360° locked any position
Table tilt	0 - 85°
Spindle motor	15 Kw      20 HP
Size (L×W×H)	6×5×3 m    20'×16'×9.9'
Weight	7200 Kg     16,000 Lbs

Reliable bridge saws shipped throughout the world:



FAQ:1) Payment:
T/T in advance We accept 30% deposit , 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock.
Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

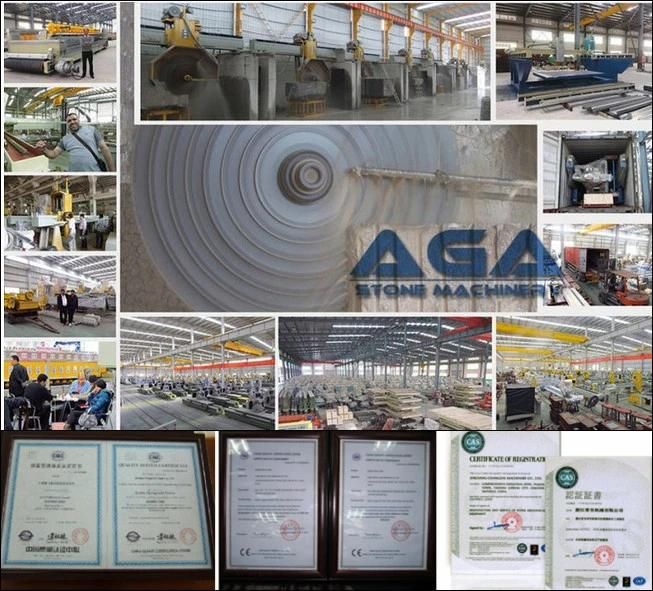

AGA Machinery:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test. The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc.


Key words:
stone bridge saw, bridge saw machine, granite bridge saw, marbe bridge saw, bridge cutting machine, slab cutting machine, edge cutting machine, stone sawing machine, slab sawing machine, etc.

If you have any questions please feel free to inform us, we're more than happy to serve you!
Contact Information:
Contact Miss Kay
