Heavy Duty Single Head Stone 3D CNC Router Stainless Steel Sink 2140

Jinan Unistar Machinery Co., Ltd.
  • After-sales Service:24 Hours Online Service
  • Warranty:2 Years
  • Function:Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
  • Application Material:Marble
  • Automation:Automatic
  • Control:CNC

Base Info

  • Model NO.:USM-2140
  • Motor Power:High Power
  • Engraving Head Speed Adjustability:Wide Adjustable Range
  • Certification:CE, ISO
  • Current:AC
  • Application:Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
  • Customized:Customized
  • Model:Usm-2140
  • Working Area:2100mm*4000mm*200mm
  • Table Structure:Vacuum Table and T-Slot Table
  • Spindle Power:Water Cooling 5.5kw
  • Inverter:Surfar Inverter
  • Control System:Nc-Studio Control System
  • Drive System:Stepper Motor and Drive
  • Rails Guide:Taiwan Hiwin Square Linear Rail
  • Oiling System:Manual
  • Spindle Speed:24000r,Min
  • Max Working Speed:18m,S
  • Option:Rotation Axis
  • Warranty Time:2 Years
  • Command Code:G Code
  • Tool Sensor:Auto Tool Sensor
  • Transport Package:Strong Plywood Case Packing
  • Specification:1300mm*2500mm*200mm
  • Trademark:UNISTAR
  • Origin:China
  • HS Code:8465990000
  • Production Capacity:3000pieces,Year

Description

BasicX/Y/Z Axis Working Area2100*4000*450mmMachine Size2200*4100*1800mmWorking TableAluminum T-slot table protected with PVCMachine StructureThick steel welded, with aging treatmentMainControl SystemNC Studio 65CDrive MotorLeadshine driver motorSpindle Motor Power1*5.5KW water cooledSpindle speedAdjustable Rotational Speed with 0-24000 rpm/minInverter ZoncnOthersDrive SystemX/Y axis helical rack & pinion, Z axis Taiwan ball screwGuide RailTaiwan imported linear guide rail PMICooling SystemCirculating water-refluxing designOil SystemAutomatic Oil systemElectric ApplianceGermany SchneiderReducerPlanetary reducerWorking accuracy±0.08mmRe-positioning accuracy±0.05mmMax. Traveling Speed25 m/minMax.Working Speed15 m/minWater Sink/TankPowder-painting (Stainless steel is optional)Dictate FormatG-Code / HPGLWorking VoltageAC380V 3PH 50HZ

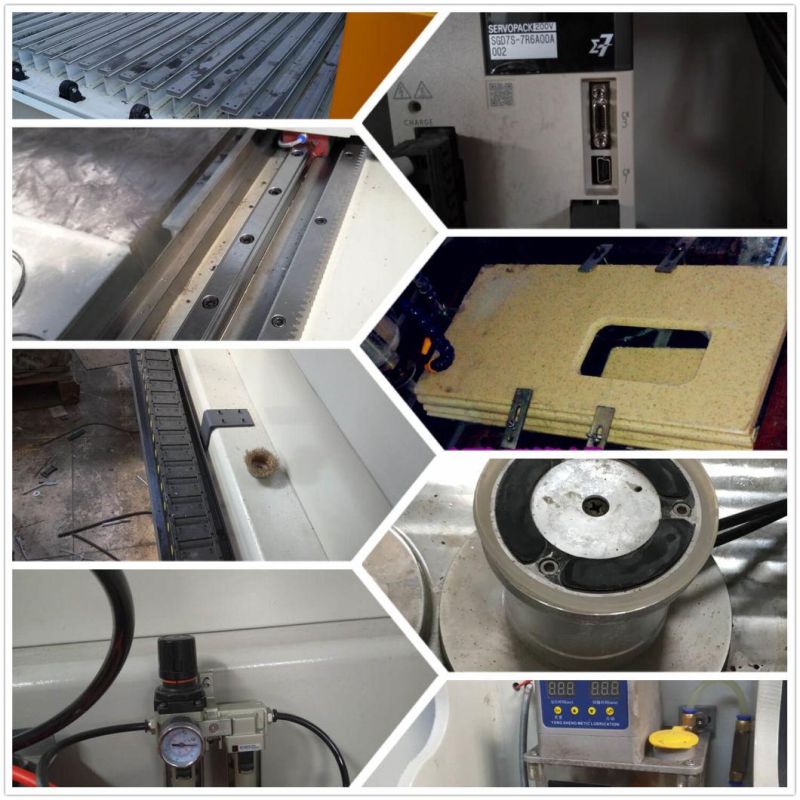

Accessories:
Heavy Duty Single Head Stone 3D CNC Router Stainless Steel Sink in China

Performance Features:  1Thick steel tube welded body structure, with aging treatment, ensure no deformation, high rigidity, good stability. 2Famous brand big torque motor, low noise, large power, high efficiency. 3Adopt imported square linear guide rail, high speed, high precision, long life. 4Z axis adopts high precision German ball screw drive, ensure accuracy; Y axis adopts high precision gear rack drive, fast speed, big strength. 5Reasonable dustproof and waterproof design, fully protect the machine transmission parts. 6Good compatibility, cam be compatible with any advanced CAD/CAM software, including Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD Paint/ Ucancam, etc..


Samples:
Heavy Duty Single Head Stone 3D CNC Router Stainless Steel Sink in China



Heavy Duty Single Head Stone 3D CNC Router Stainless Steel Sink in China
