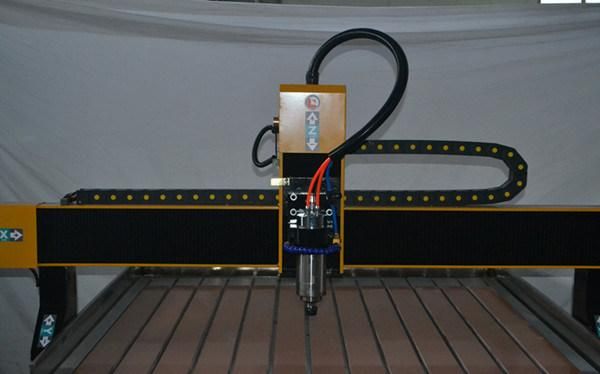

CNC Router Stone Machines/ Wood Router Mini CNC /CNC Router 1212
Jinan Unistar Machinery Co., Ltd.- After-sales Service：24 Hours Online Service
- Warranty：2 Years
- Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
- Application Material：Marble
- Automation：Automatic
- Control：CNC
Base Info
- Model NO.：USM1212
- Motor Power：High Power
- Engraving Head Speed Adjustability：Wide Adjustable Range
- Certification：CE, ISO
- Current：AC
- Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
- Customized：Customized
- Model：Usm-1212
- Working Area：1200mm*1200mm*200mm
- Table Structure：Vacuum Table and T-Slot Table
- Spindle Power：Water Cooling 5.5kw
- Inverter：Surfar Inverter
- Control System：Nc-Studio Control System
- Drive System：Stepper Motor and Drive
- Rails Guide：Taiwan Hiwin Square Linear Rail
- Oiling System：Manual
- Spindle Speed：24000r,Min
- Max Working Speed：18m,S
- Option：Rotation Axis
- Warranty Time：2 Years
- Command Code：G Code
- Tool Sensor：Auto Tool Sensor
- Transport Package：Strong Plywood Case Packing
- Specification：1200mm*1200mm*200mm
- Trademark：UNISTAR
- Origin：China
- HS Code：8465990000
- Production Capacity：3000pieces,Year
Description
Model No.

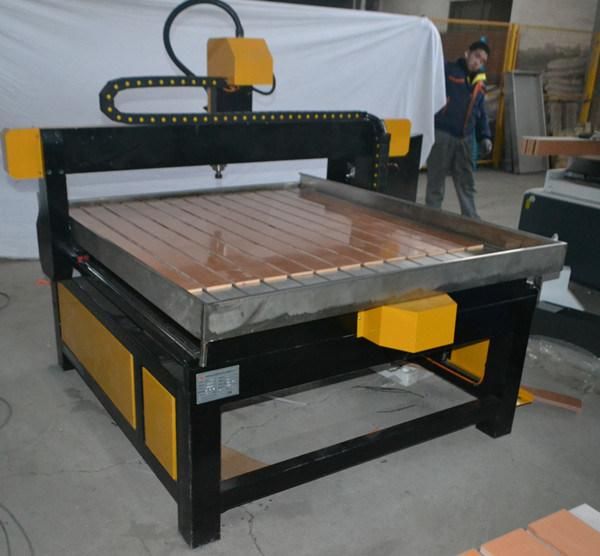

UNISTAR-1212 Stone CNC Router
Table Size
1200mm*1200mm
Max. feeding height of Z axis
200mm
Table Structure
Aluminum table with T-slot
Machine body
Cast-iron
X Y Z axis Transmission
TBI Ball Screw
X Y Z Guide rail
Round Guide Rail

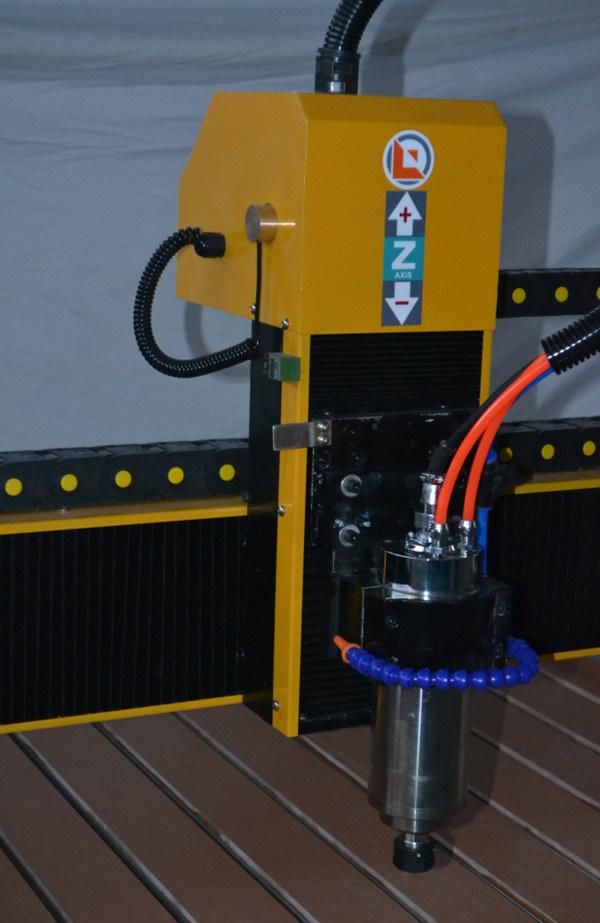

Spindle Power
1.5kw water cooling spindle
Max.Spindle Speed
24000 rpm/min
Max. Traveling Speed
7000mm/min
Max. Working Speed
7000mm/min
Processing Accuracy
±0.025mm
Reposition Accuracy
≤0.025mm

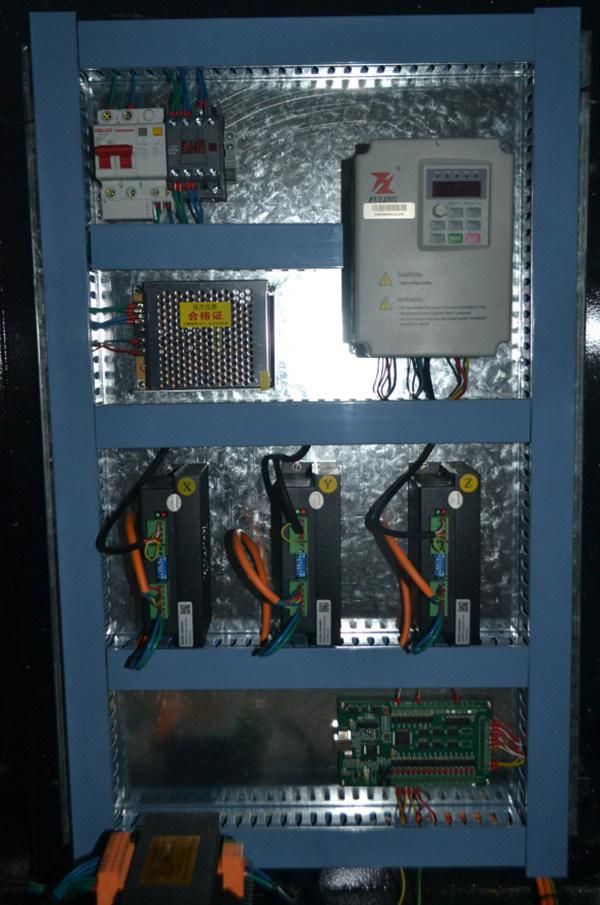

Driving System
Leadshine drivers
Command Language
HPGL, G Code
Control System
NCSTUDIO/MACH3/DSP
Working Voltage
AC110/220V, 50/60HZ
Net Weight/Gross Weight
550KGS
Package Dimension
1950*1950*1700mm

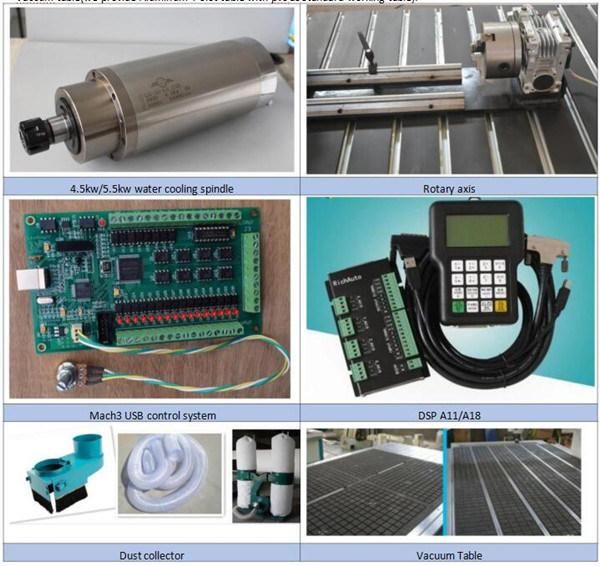

Optional part :
1.2.2kw/3.0kw water cooling spindle
2.Mach3 control system
3.Hiwin linear square guide rail
4.Water cooling system with water tank
5.Rotary axis 80mm,100mm,150mm
6.Vacuum table with vacuum pump
Sample
Cnc router 1212 has a wide range of application, such as advertising field, seal field, packing field, pane making field, decorating field, art and craft field, architecture model field, souvenir field, badge field, electric circuitry field and carpentry field.It is used to engrave on Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite, stone, steel and soft metal etc.
Technical parameter
| Model | USM-1212 |
| Lathe bed | Self designed industrial design bed |
| Guide | Vertical rail |
| Effective machining stroke of X axis | 1200mm |
| Effective machining stroke of Y axis | 1200mm |
| Z axis stroke | 200mm |
| Bed structure | Thick wall square pipe welding |
| Platform size | 2400*3400mm |
| Maximum operating speed | 50m/min |
| Maximum carving speed | 30m/min(based on material and carving depth) |
| Repeated positioning accuracy | ±0.05mm |
| Carving instruction | G code |
| Working voltage | 380V/50HZ |
| Spindle speed | 0-24000rpm/min |

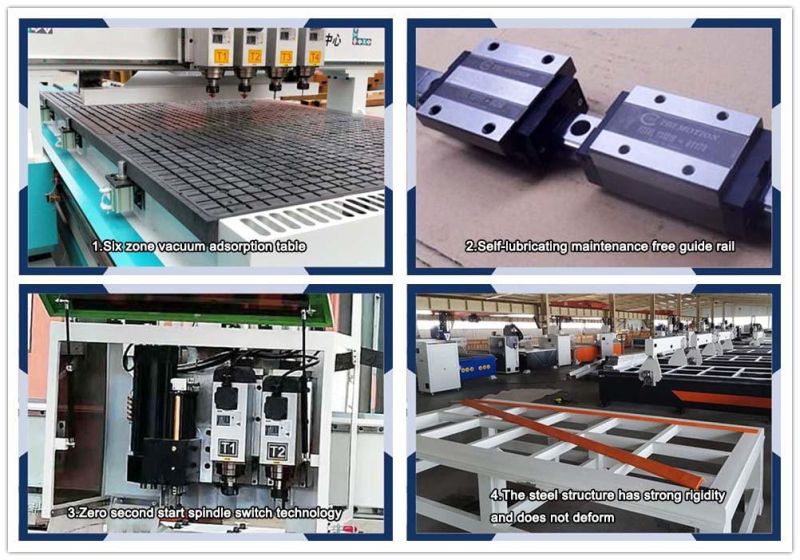

| Plate fixing method | Vacuum adsorption double deck |
| Transmission mode | X / Y-axis high precision helical gear transmission, z-axis lead screw |
| Guide | Taiwan 25 straight track |
| Operation mode | Gemicom high precision servo |
| Frequency converter | Zhongchen frequency converter |
| Reducer | Taiwan high precision reducer |
| Driving system | Gemicom servo |
| Control system | Shanlong industrial control system |
| Principal axis | HQD6.0KW*2,4.5KW*2(optional) |
| Tool magazine capacity | 4 |
| Maximum tool holding handle diameter | 12.7mm |
| Automatic location | Standard automatic positioning function |
| Vacuum pump | Water type 7.5kw |
| Accessory accessories | Tool wrench, etc |
| Pusher device | Automatic pushing + secondary dedusting |
Application
Wood Processing: processing of various furniture such as door, window, cabinet, screen
and so onAdvertisement: engraving and cutting various labels and number plate. Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.
Applicable materialswood, aluminum bord, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Service for CNC Router
1.Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine.
3. 24 months warranty, we will provide the consumable parts at cost price after the warranty period.
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are nglish manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or kype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, ls tell me the max working
area, materialsfor processing and the thickness for materials processing engraving
or cutting. Then perfect suitable router will be recommended
3) If machine have any problems after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine
have any problem.we will give you 24hours service from phone and kype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly,
please tell us your port name. There will be best shipping freight and machine price
send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping.
b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
